Product details

Products Description

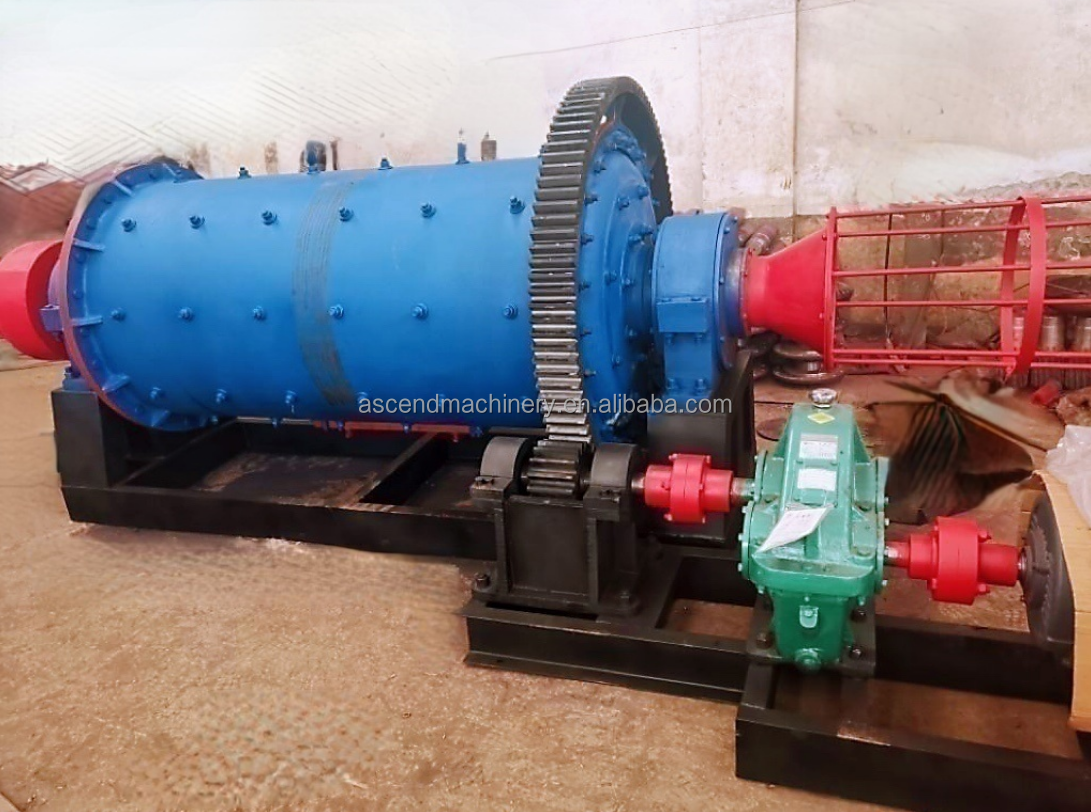

Mineral ball mill

Ball mill, also called grinding mill, ball grinding mill, is the key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, with medium hardness.

Working Principle

According to different milling modes, the ball mills can be divided into dry and wet types. Due to different dishcarging methods, there are two types of ball mills: into-lattice type and over-flow type, or center-discharging type and side-discharging type. According to the different kinds of support, they can be devided into two types: bearing mill and bushing mill.

Specifications

Model	Rotation speed(r/m)	Grind Media(ton)	Feed size (mm)	Discharge size(mm)	Capacity (t/h)	Motor (KW)	Weight (ton)
900x1200	36	1.0	0-25	0.074-0.4	0.5-1.5	18.5	4
900x1800	36	1.5					0.5-2	22	4.8
900x2100	38	1.5					0.5-2	22	4.8
900x2400	38	1.8					0.7-2.8	22	4.8
900x3000	38	2.5					0.8-3.5	30	5.0
1200x2400	32	3.8					0.9-4.8	30	9.2
1200x3000	32	4.5					1.2-5.6	37	11.5
1200x4500	30	5.5					1.5-6.0	55	13.6
1500x3000	27	7.0					2.5-6.5	75	15.0
1500x3500	27	8.5					3.0-8.2	75	15.6
1500x4500	27	11					4-10	95	21.0
1500x5700	27	12					4-13	110	23.5
1830x3000	24	12					5-15	130	31.0
1830x3600	24	13					5-16	130	32.0
1830x4500	24	14					5-18	155	33.5
1830x7000	24	21					6-20	210	36.0
2100x3000	24	18					7-26	210	38.0
2100x3600	24	21					7-35	215	39.5
2100x4500	24	26					8-42	245	43.5
2400x3000	21	23					8-60	285	55.0

Main Parts & Spare parts

Shipping & Packing

Customer Working Sites
