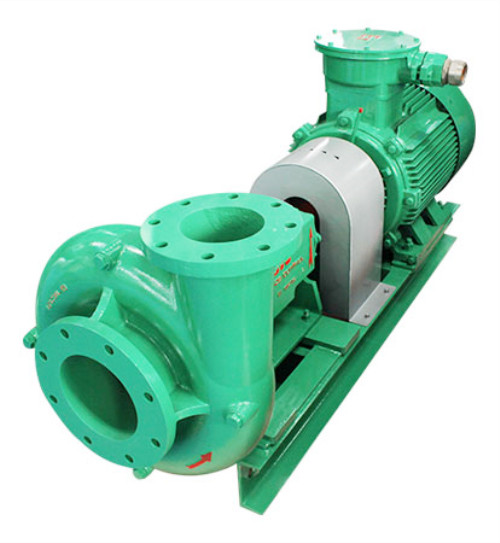

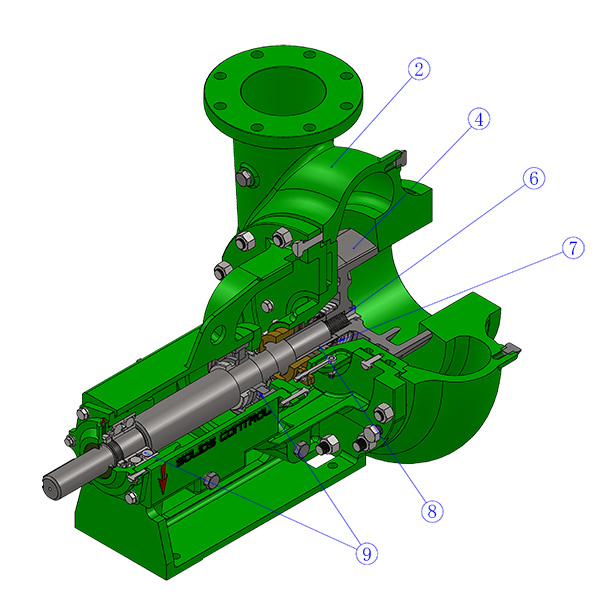

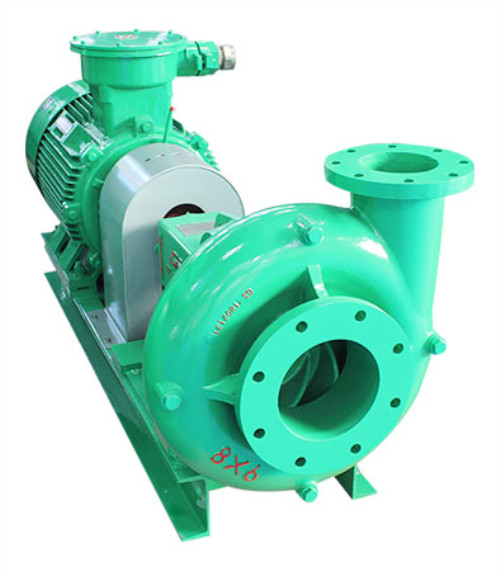

Oilfield Drilling Mud Single-stage Pump Centrifugal Sand Pump
SB Series Centrifugal pump is used for transferring slurry or mud or water. It can be used as feeding pump for desander, desilter, or used as mixing pump for Jet Mud Mixer. Also it can be used as trip pump, and supercharging pump for rig mud pump. All our model centrifugal pump use tungsten carbide mechanical seal, with famous brand Bearing. And spare parts interchangeable with most of the international Brand pump which helps customer to source spare parts easily. Open impeller design that lowers axial thrust loads, and make it easier for installation, repair and maintenance.
Characteristics and features
▲ All spare parts interchangeable with most of the international Brand pump which helps customer to source spare parts easily
▲Thick, Strong Concentric casing provides extended life over conventional volute designs. The Concentric design minimizes turbulence and abrasive wear.
▲Pump casing made from hard ductile iron alloy, increased abrasion resistant capability compared to competitors pump.
▲Wide open-vane impeller creates lower axial thrust for improved bearing life.
▲Pump impeller made from hard ductile iron alloy, extended life over competitors design.
▲Anti-loosening impeller lock bolt to eliminate pump damage in case of improper motor hook-up.
▲High quality no-adjustment mechanical seal to provide zero leakage and longer operation life.
▲Replaceable shaft sleeve prevents shaft wear.
▲All bearings from top brand for reliable operation.
▲The skid for supporting pump and motor is made from casting instead of welding to provide reliable operation and less vibration in a result to extend the pump and motor life.
Specifications and parameters
|
Model |
Flow(m³/h) |
Lift(m) |
Power(Kw) |
Motor Speed(RPM) |
Impeller(lnch) |
|
SB8×6C-14J |
320m³/h |
35m |
75kW |
1450RPM（50Hz） |
14in |
|
SB8×6C-12J |
1750RPM（60Hz） |
12in |
|||
|
SB8×6C-13J |
272m³/h |
35m |
55kW |
1450RPM（50Hz） |
13in |
|
SB8×6C-11J |
1750RPM（60Hz） |
11in |
|||
|
SB6×5C-13J |
200m³/h |
35m |
45kW |
1450RPM（50Hz） |
13in |
|
SB6×5C-10J |
1750RPM（60Hz） |
10in |
|||
|
SB6×5C-12J |
150m³/h |
30m |
37kW |
1450RPM（50Hz） |
12in |
|
SB6×5C-9.5J |
1750RPM（60Hz） |
9.5in |
|||
|
SB5×4C-13J |
120m³/h |
35m |
30kW |
1450RPM（50Hz） |
13in |
|
SB5×4C-11J |
1750RPM（60Hz） |
11in |
|||
|
SB5×4C-12J |
90m³/h |
30m |
22kW |
1450RPM（50Hz） |
12in |
|
SB5×4C-10J |
1750RPM（60Hz） |
10in |
|||
|
SB4×3C-13J |
65m³/h |
35m |
18.5kW |
1450RPM（50Hz） |
13in |
|
SB4×3C-12J |
1750RPM（60Hz） |
12in |
|||
|
SB4×3C-12J |
55m³/h |
28m |
15kW |
1450RPM（50Hz） |
12in |
|
SB4×3C-10J |
1750RPM（60Hz） |
10in |
|||
|
SB4×3C-11J |
45m³/h |
25m |
11kW |
1450RPM（50Hz） |
11in |
|
SB4×3C-9.5J |
1750RPM（60Hz） |
9.5in |
The mud circulation system mainly consists of drilling fluid shale shaker, vacuum degasser, desander, desilter, integrated desander and desilter, liquid-gas separator, agitator, sand pump, shear pump, centrifuge, electronic ignition device, mixing funnel, jet slurry mixing device, mud tank and other stone oil drilling solid control equipment and a complete set of mud circulation system.
Q1. Why choose us ?
1. Competitive price: our company is a professional supplier of Cementing and Fracturing Equipment, Gate Valve and Wellhead Christmas Tree, Plunger Pumps and Mud Pumps, Flow line Products, Solid Control Equipment, Drilling Rigs and Work over Rigs Matching Equipment etc. We have competitive prices and best resources in advanced production line and testing equipment, designed and manufactured according to certification of API, ISO, GOST, etc.
2. Fast delivery: the delivery time of all our machines is very fast, especially the popular Plunger Pumps and Mud Pumps, Flow line Products.
3. Warranty: after sales service is very important for construction machinery. Our company provides warranty for all machinery purchased from us. During the warranty period, we will accurately confirm the damaged parts in the shortest time and send the replacement parts to the customers by DHL or air freight in the most efficient way.
Q2. How can you guaranteed quality?
On the basis of more than 40 years of manufacturing experience,more than 30 years of export experience, high quality products with competitive price, better understanding in Chinese market, High quality after-sales service, we hope to establish business relations with your company.
Q3. Can you satisfy my special requirement?
As the manufacturer, Youlong will review the special requirement and recondition it as per request (if possible).
Q4. How about your technology after-service team available?
We have postgraduated engineer and repair machines team, and worked inconstructions machine area almost 20 years. We could give you service support on line on time, or send to Machinican to support on necessary.
Through the continuous development and unremitting efforts, on the basis of the stable domestic market, relying on the product quality, competitive price advantage and high-quality and efficient services, the company has been vigorously exploring the international market and expanding the foreign cooperation channels to export the products to the United States, Canada, Russia and other countries.
The company has established a good partnership with many internationally well-known companies by always adhering to the mission of "providing advanced products and high-quality services for the customer on the basis of customer focus", relying on the scientific management philosophy, strictly complying with the international trade rules, insisting in the contract performance, keeping promises, and fulfilling the tenet of high-quality and efficient services and win-win cooperation, to lay a solid foundation for the company's development.
The goal is to build the company into a world-class supplier of petroleum equipment and products. We welcome to establish a joint operation with all the domestic and foreign customers to strengthen the cooperation in various fields, to achieve mutual benefits and common development. The company will enhance the comprehensive competitiveness of the enterprise and strive for making greater contributions to the development of China and the world petroleum industry!
Develop, seek credibility by service, actively introduce advanced technology at home and abroad, and strive to make the products we provide create more economic benefits for users.
Thanks for your stopping.
We are major at Cementing and Fracturing Equipment, Gate Valve and Wellhead Christmas Tree,Plunger Pumps and Mud Pumps, Flow line Products, Solid Control Equipment,Drilling Rigs and Work over Rigs Matching Equipment etc.
High quality & Steady quantity & Most competitive price will be sent for you.
If you are interested in the product, contact 2bvideo.com for more information for more information
