| Feature | Description |
| Spring Loaded Design | Internal spring provides automatic return force, allowing the pin to engage quickly and securely after release. |
| Twist Lock / Cam Lock Mechanism | Pull-and-rotate mechanism enables quick locking and releasing for equipment requiring frequent adjustment. |
| Heavy-Duty Steel Construction | Robust steel construction provides durability and reliable performance for trailers, tow trucks, farm equipment and industrial machinery. |
| Grease Fitting Available | Integrated grease fitting allows convenient lubrication of internal moving components for smooth and reliable operation. |
| Corrosion-Resistant Finish | Protective metallic surface treatment improves corrosion resistance for outdoor and demanding industrial environments. |

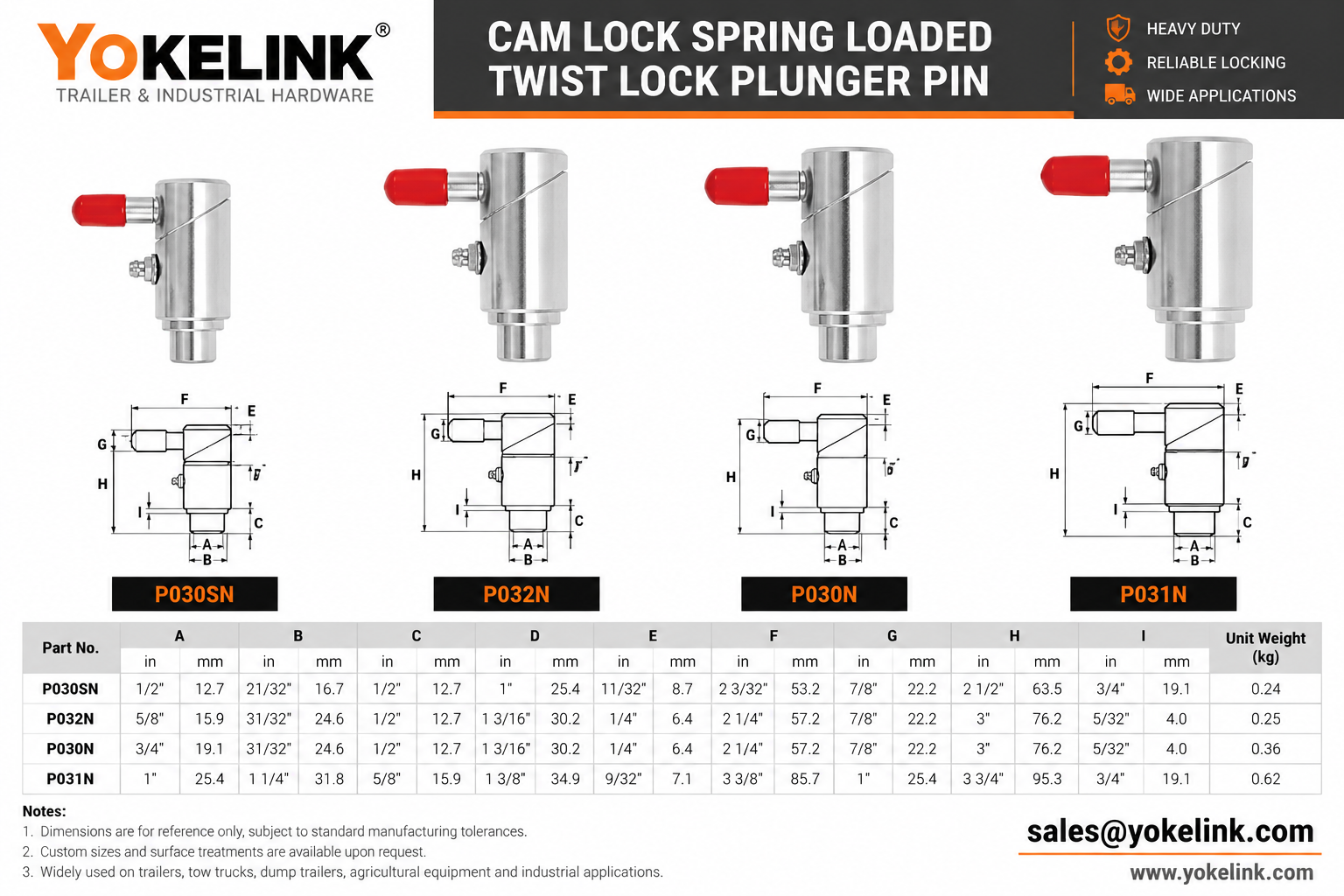

| Multiple Sizes Available | Standard pin sizes: 1/2", 5/8", 3/4" and 1". Custom sizes can be manufactured according to drawings or samples. |

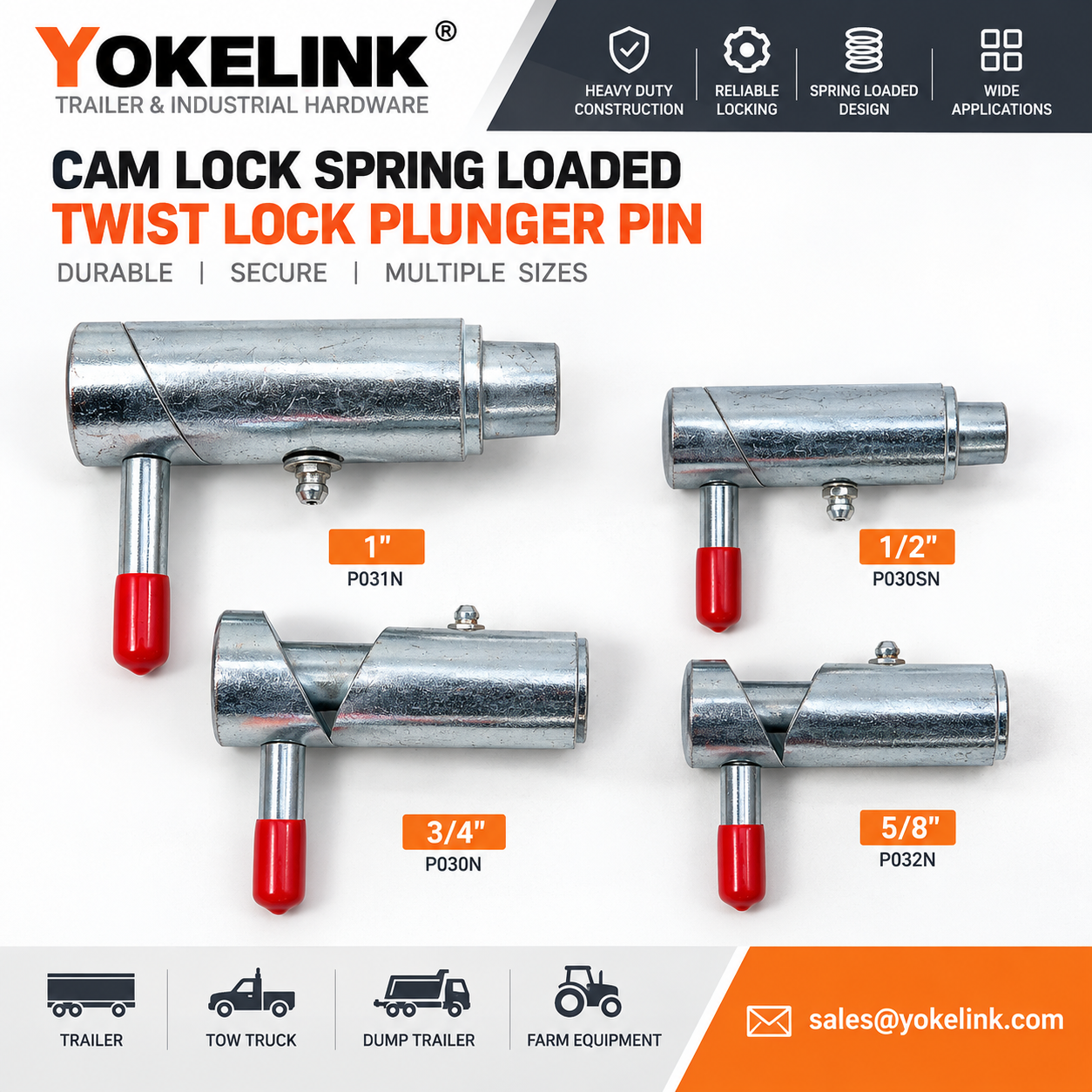

1/2" | 5/8" | 3/4" | 1"
Different dimensions can also be developed for OEM trailer and equipment manufacturers.
| Application | Typical Use |
| Trailers | Used for quick locking and positioning of trailer gates, ramps, frames, supports and other adjustable components. |
| Tow Trucks | Provides secure and convenient locking for adjustable towing assemblies and related truck equipment. |
| Wreckers | Suitable for wheel-lift arms, stabilizer assemblies and other movable or adjustable wrecker components. |
| Dump Trailers | Used on dump trailer gates, supports and positioning mechanisms requiring frequent locking and release. |
| Farm Equipment | Ideal for agricultural machinery and implements that require quick positioning, adjustment and secure locking. |
| Industrial Equipment | Used in adjustable frames, material-handling equipment, machinery and other mechanical positioning systems. |
The locking process is simple:
Pull → Rotate → Position → Release → Lock
When the operator pulls the handle, the locking pin retracts against the spring force. The handle can then be rotated through the cam mechanism to change or temporarily hold its position. When returned to the locking position, the spring pushes the plunger back into the corresponding hole or locking point. This design makes it suitable for equipment requiring frequent adjustment without completely removing the locking pin.
For overseas buyers searching for a Spring Loaded Cam Lock manufacturer, Twist Lock Plunger Pin supplier or Trailer Locking Pin factory, YOKELINK provides both standard products and customized manufacturing services.
YOKELINK supplies Spring Loaded Locking Pins, Cam Lock Pins and Twist Lock Plunger Pins to overseas B2B customers. The products are suitable for trailer manufacturers, tow truck and wrecker equipment companies, agricultural equipment manufacturers, industrial OEMs, trailer parts distributors and hardware wholesalers looking for a reliable source of locking hardware. For international orders, YOKELINK supports export packing and commercial shipping documentation for customers in different markets.
YOKELINK supplies mechanical hardware and fastening products for industrial and equipment applications, allowing distributors and OEM customers to source locking hardware directly.
Standard 1/2", 5/8", 3/4" and 1" options cover a range of common installation requirements.
If an existing standard size does not fit your application, YOKELINK can evaluate production according to:
Customer drawings · Existing samples · Required dimensions · Surface finish · Packaging requirements · OEM specifications
The product range is suitable for: Trailer manufacturers · Tow truck manufacturers · Wrecker equipment companies · Trailer parts distributors · Agricultural equipment manufacturers · Industrial hardware distributors
YOKELINK supports international B2B customers with commercial documentation, export packaging and bulk-order supply.
YOKELINK can also manufacture customized locking pins for trailer and industrial equipment manufacturers. Typical customization requirements may include:
Pin diameter, body dimensions, overall length, handle configuration, locking travel, material, surface treatment, grease fitting, marking and packaging.
For an OEM quotation, send your drawing, photo, sample specifications and estimated annual quantity to us.
Depending on the industry, buyers may call this product a Twist Lock Plunger Pin, Spring Loaded Locking Pin, Cam Lock Pin, Trailer Locking Pin, Spring Loaded Plunger Pin, Twist Lock Pin or Spring Loaded Latch Pin.
Standard pin diameters include 1/2", 5/8", 3/4" and 1".
It is used to quickly position and secure movable or adjustable components on trailers, tow trucks, wreckers, dump trailers, agricultural machinery and industrial equipment.
Yes. Custom dimensions can be evaluated according to customer drawings, specifications or samples.
Yes. Trailer and trailer-related equipment are among the primary applications for this type of spring loaded locking mechanism.
The spring provides return force so the plunger can automatically move toward its locking position after release.
The grease fitting provides a convenient lubrication point for the internal moving mechanism.
Potentially, but the dimensions and mounting arrangement should be compared first. Send YOKELINK the existing model, drawing, dimensions or sample for compatibility evaluation.
Yes. They are suitable for OEM manufacturing, replacement-parts distribution and industrial bulk purchasing.
Provide the pin size, drawing or dimensions, quantity, surface requirement, destination country and any OEM requirements
