Product details

Wear Resistant Steel Plate is typically made in the as-rolled condition. These types/grades of Steel Plate products have been developed specifically for long service life in harsh conditions. AR products are suitable for a variety of applications in areas such as mining/quarrying, conveyors, material handling and construction, and earthmoving. Designers and plant operators choose AR Carbon Steel Plate when striving to extend service life of critical components, and reduce the weight of each unit put into service. The benefits of employing Wear Resistant Steel Plate plate steel in applications involving impact and/or sliding contact with abrasive material are immense.

Abrasion Resistant Steel Plate Applications:

The AR235 plates are intended for moderate wear applications where it offers improved wear resistance relative to structural carbon steel.
The AR400 are premium abrasion resistant steel plates that are heat-treated and exhibit through-hardening. Improved forming and weding capabilities.
AR450 is an abrasion resistant plate used in a variety of applications where slightly greater strength is desired beyond AR400.
AR500 plates are suitable for mining, forestry and construction applications.
AR600 is utilized in high-wear areas such as aggregate removal, mining, and the manufacture of buckets and wear bodies.

Product Decsription

Wear/Abrasion Resistant Steel Equivalent Standards

Steel Grade	JFE	DILLIDUR	ThyssenkKrupp	Ruukki
NM360	EH360	-	-	-
NM400	EH400	400V	XAR400	Raex400
NM450	-	450V	XAR450	Raex450
NM500	EH500	500V	XAR500	Raex500

Chemical Composition (%) of NM Wear Resistant Steel

Steel Grade	C	Si	Mn	P	S	Cr	Mo	B	N	H	Ceq
NM360/NM400	≤0.20	≤0.40	≤1.50	≤0.012	≤0.005	≤0.35	≤0.30	≤0.002	≤0.005	≤0.00025	≤0.53
NM450	≤0.22	≤0.60	≤1.50	≤0.012	≤0.005	≤0.80	≤0.30	≤0.002	≤0.005	≤0.00025	≤0.62
NM500	≤0.30	≤0.60	≤1.00	≤0.012	≤0.002	≤1.00	≤0.30	≤0.002	≤0.005	≤0.0002	≤0.65
NM550	≤0.35	≤0.40	≤1.20	≤0.010	≤0.002	≤1.00	≤0.30	≤0.002	≤0.0045	≤0.0002	≤0.72

Mechanical Properties of NM Wear Resistant Steel

Steel Grade	Yield Strength /MPa	Tensile Strength /MPa	Elongation A50 /%	Hardess (Brinell) HBW10/3000	Impact/J （-20℃）
NM360	≥900	≥1050	≥12	320-390	≥21
NM400	≥950	≥1200	≥12	380-430	≥21
NM450	≥1050	≥1250	≥7	420-480	≥21
NM500	≥1100	≥1350	≥6	≥470	≥17
NM550	-	-	-	≥530	-

Abrasion Resistant Steel Plate Availabillity

Grade	Thickness	Width	Length
AR200 / AR 235	3/16" – 3/4"	48" – 120"	96" – 480"
AR400F	3/16" – 4"	48" – 120"	96" – 480"
AR450F	3/16" – 2 "	48" – 96 "	96" – 480"
AR500	3/16" – 2 "	48" – 96 "	96" – 480"
AR600	3/16" – 3/4"	48" – 96 "	96" – 480"

Chemical Composition of Abrasion Resistant Steel Plate

Grade	C	Si	Mn	P	S	Cr	Ni	Mo	B
AR500	0.30	0.7	1.70	0.025	0.015	1.00	0.70	0.50	0.005
AR450	0.26	0.7	1.70	0.025	0.015	1.00	0.70	0.50	0.005
AR400	0.25	0.7	1.70	0.025	0.015	1.50	0.70	0.50	0.005
AR300	0.18	0.7	1.70	0.025	0.015	1.50	0.40	0.50	0.005

Mechanical Properties of Abrasion Resistant Steel Plate

Grade	Yield Strength MPa	Tensile Strength MPa	Elongation A	Impact Strength Charpy V 20J	Hardness Range
AR500	1250	1450	8	-30C	450-540
AR450	1200	1450	8	-40C	420-500
AR400	1000	1250	10	-40C	360-480
AR300	900	1000	11	-40C	-

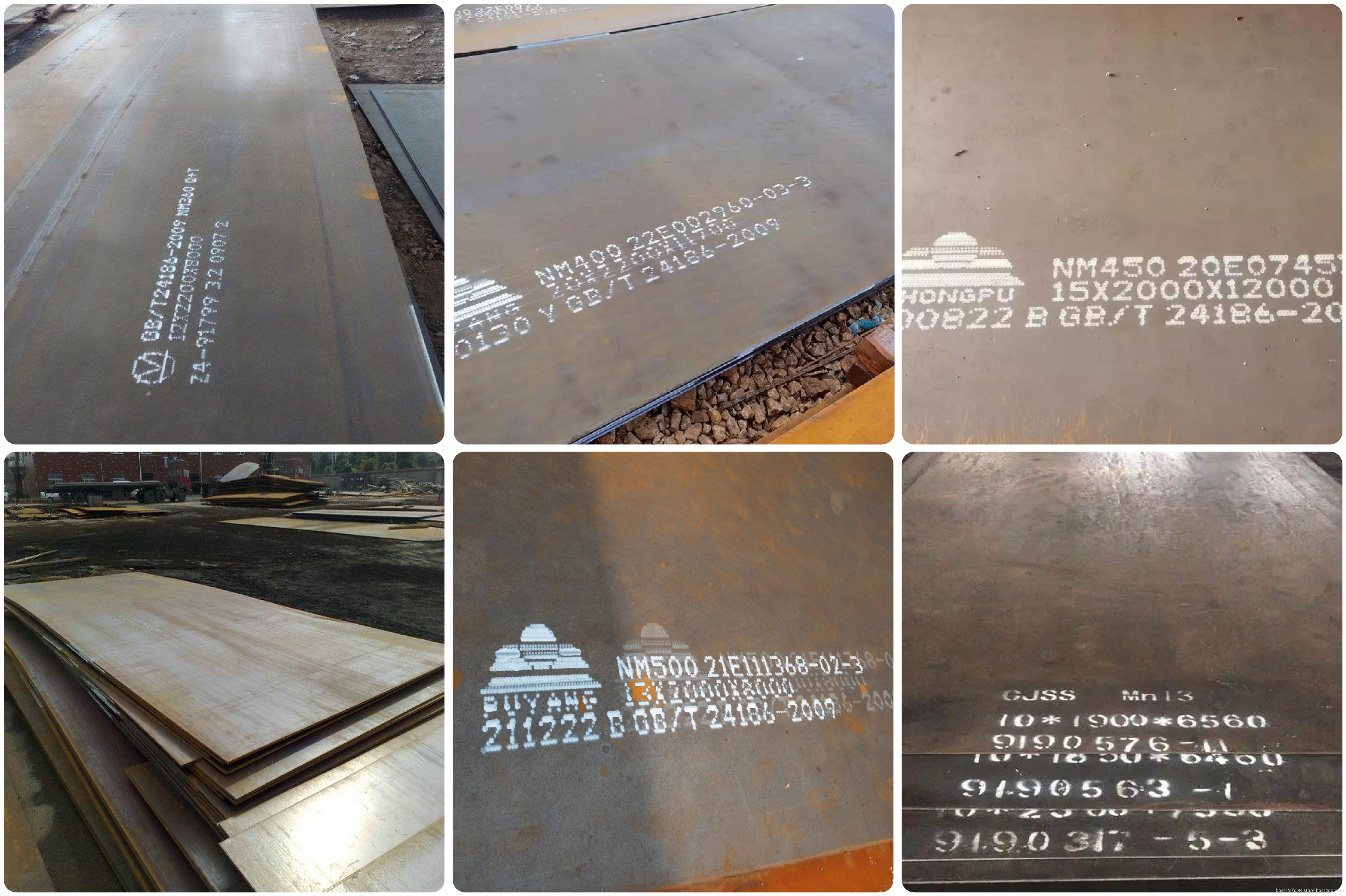

Product Display

Wear Resistant Steel Plate

1) Manufacturing Technique

Cutting large steel plates as your requirements to make the surface of the plate bright by miling and grinding, also can make holes and make angle degrees, and can weld by your drawing.

For the thickness under 30mm, cutting by laser; For thickness over 30mm, mainly OXY-cut, flame cutting.

For the thickness 200mm steel plate, because during the flame cutting, the temperature is very high, so the cutting parts steel plate might be broken at the angle part, then our workers will repair the angles to be good condition.

Steel Plate

2) Application

Wear-resistant steel plate with high wear resistance and good impact performance is good, can be cutting, bending, welding, etc., can adopt welding, plug welding, bolt connection way to connect with other structures, such as the scene of the maintenance process possesses the characteristics of time saving, convenient and widely used in metallurgy, coal, cement, power station, glass, mining, building materials, brick and petrochemical industry, compared with other materials, has a high cost performance, has been favored by more and more buyers.

Steel Plate

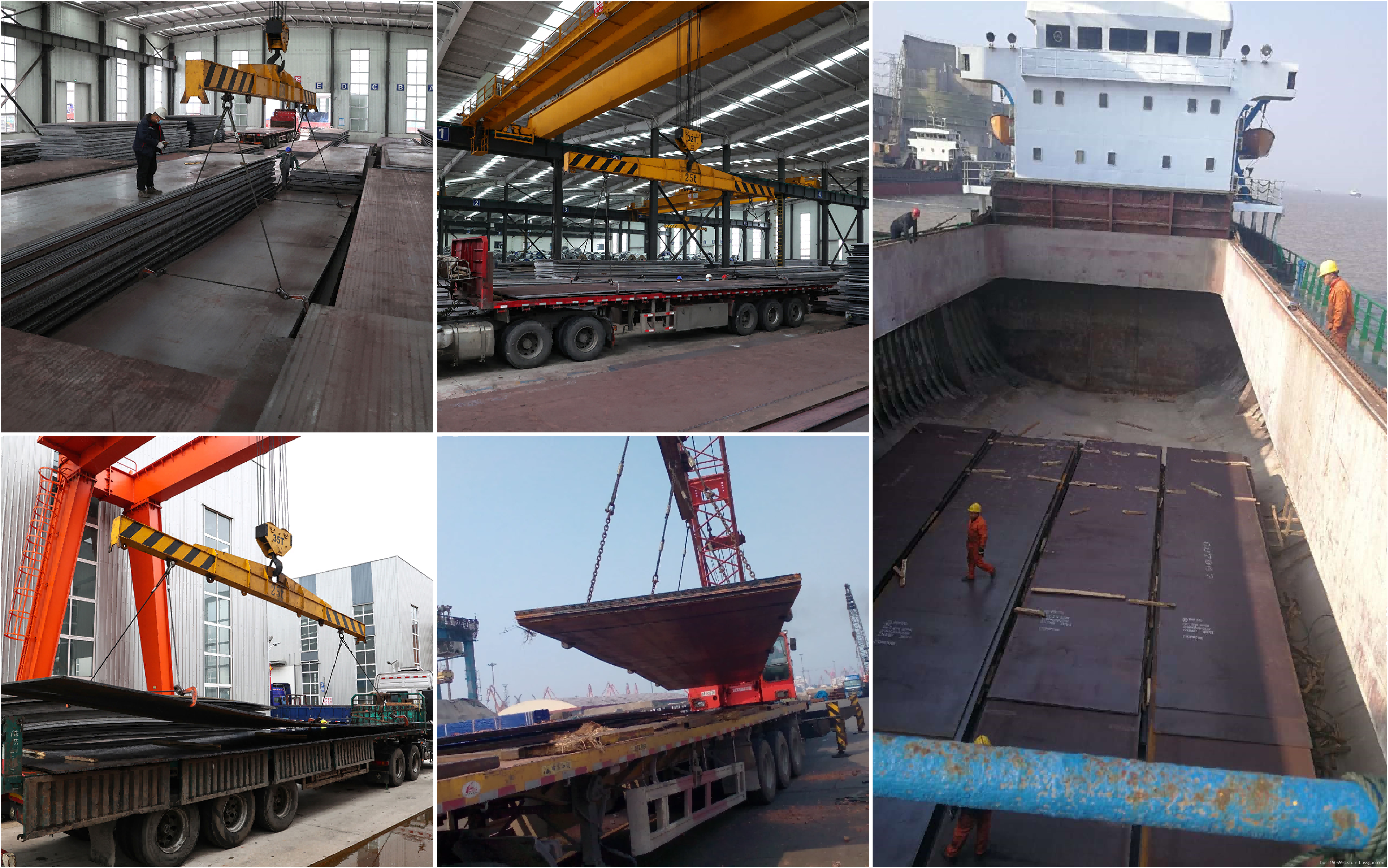

Packaging And Transportation

We offer different modes of transport depending on the customer's destination: rail transport and ship transport, etc. The Shipping Mark shall consist of: Trade mark, Seller's name, Product name, Applicable standards, Specifications, Package No., Contract No., Heat No., Production date, Weighing method, Net weight, Gross Weight, Consignee and Protection symbols, etc.

Wear Resistant Steel Plate

If you have any question, please feel free to contact me by the email or telephone!
