Product details

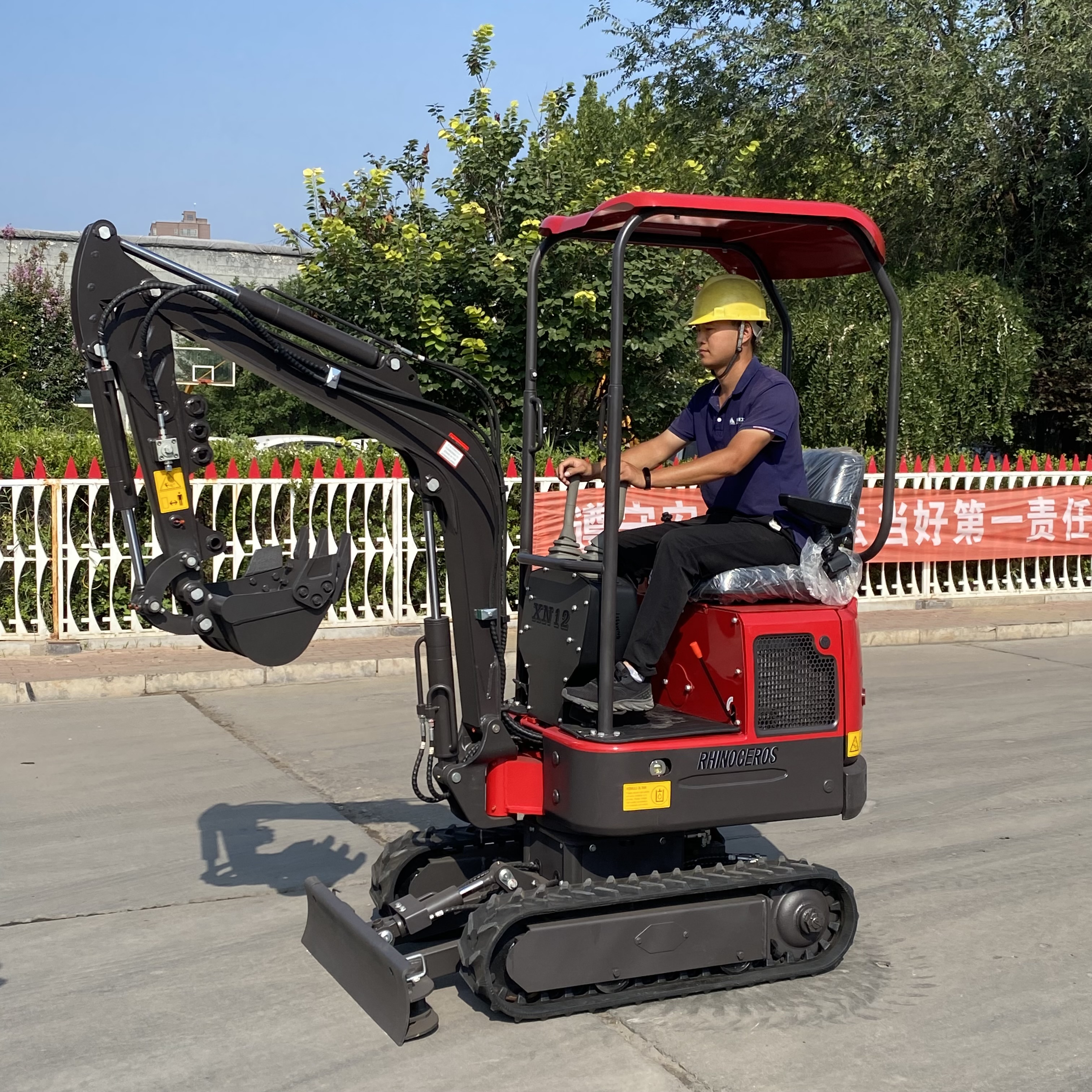

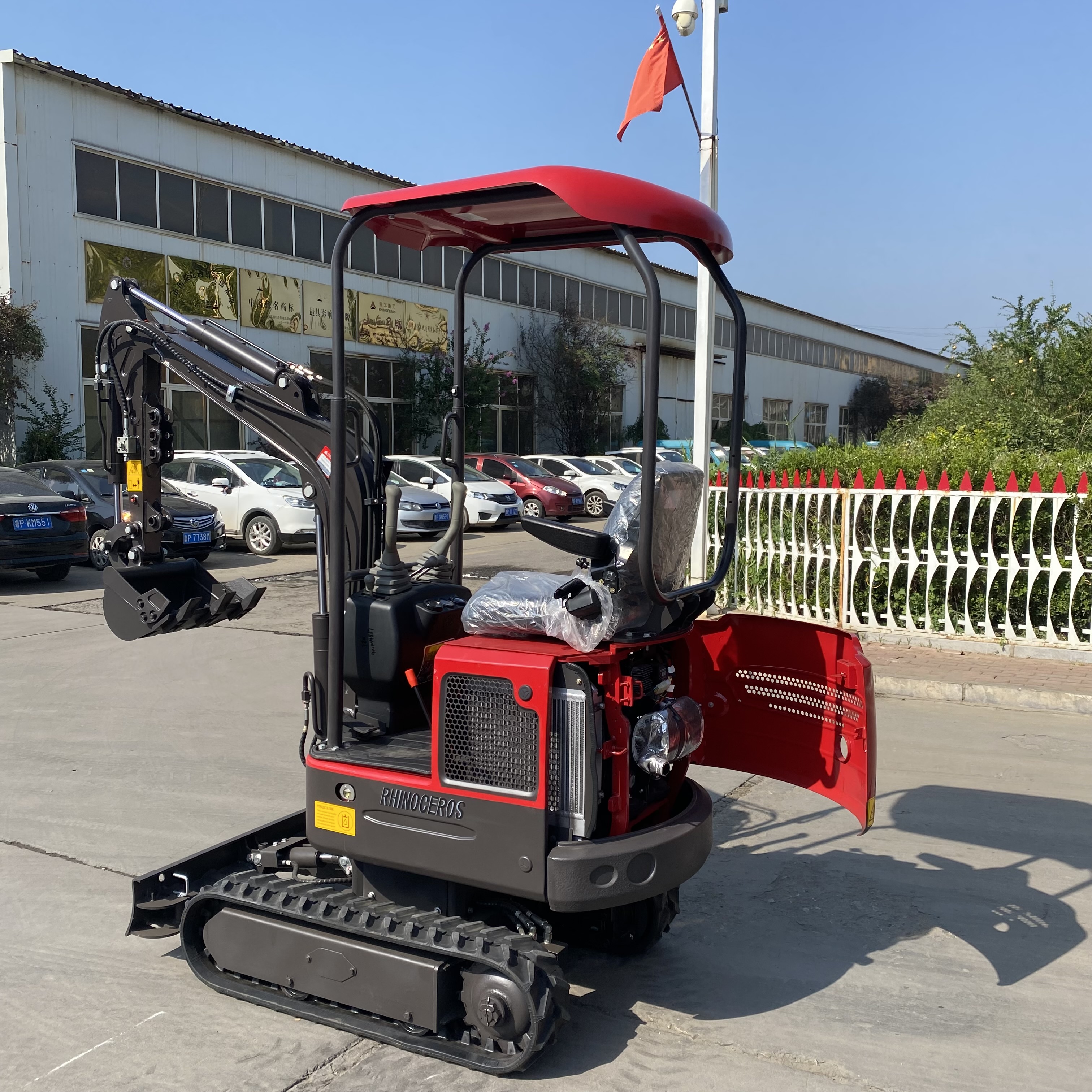

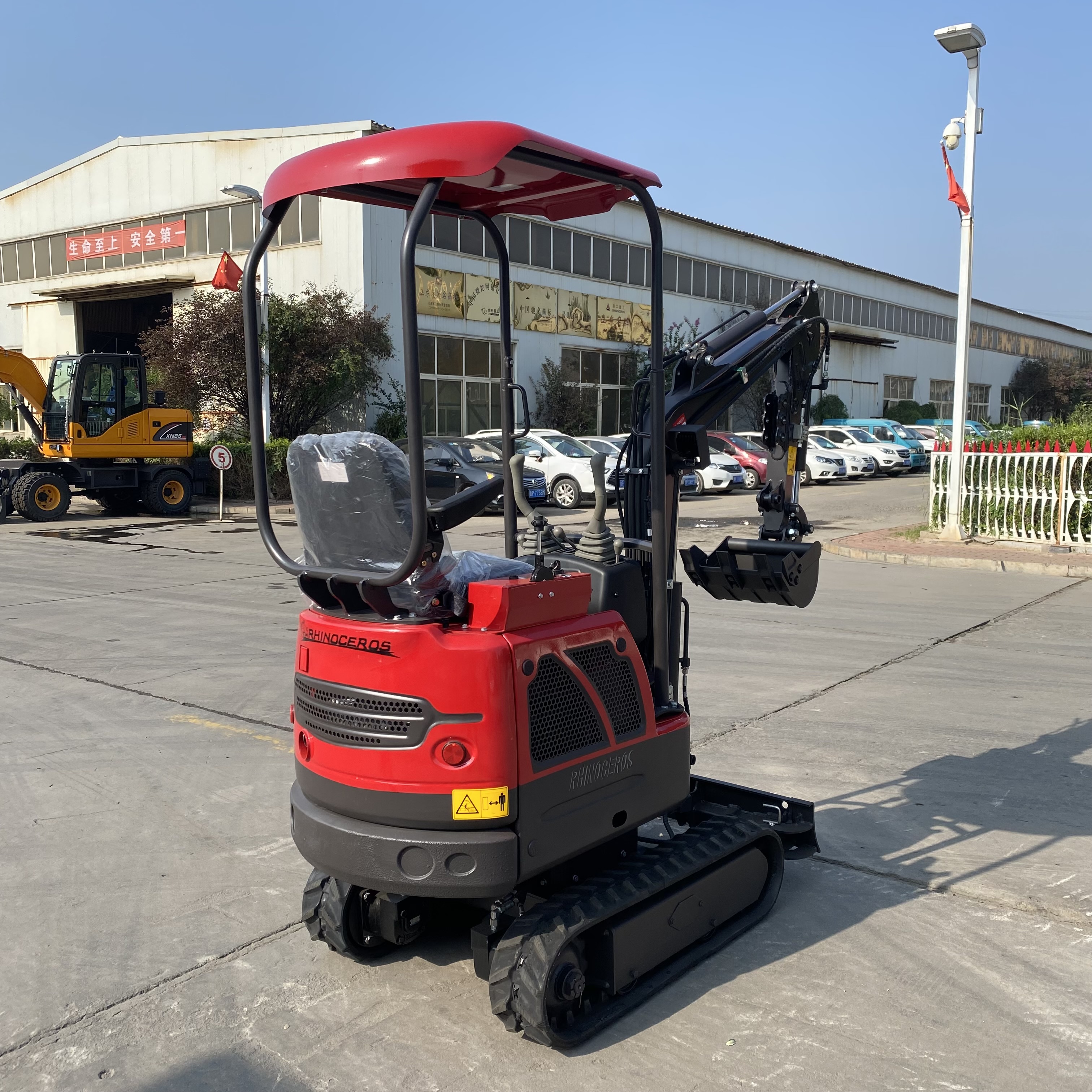

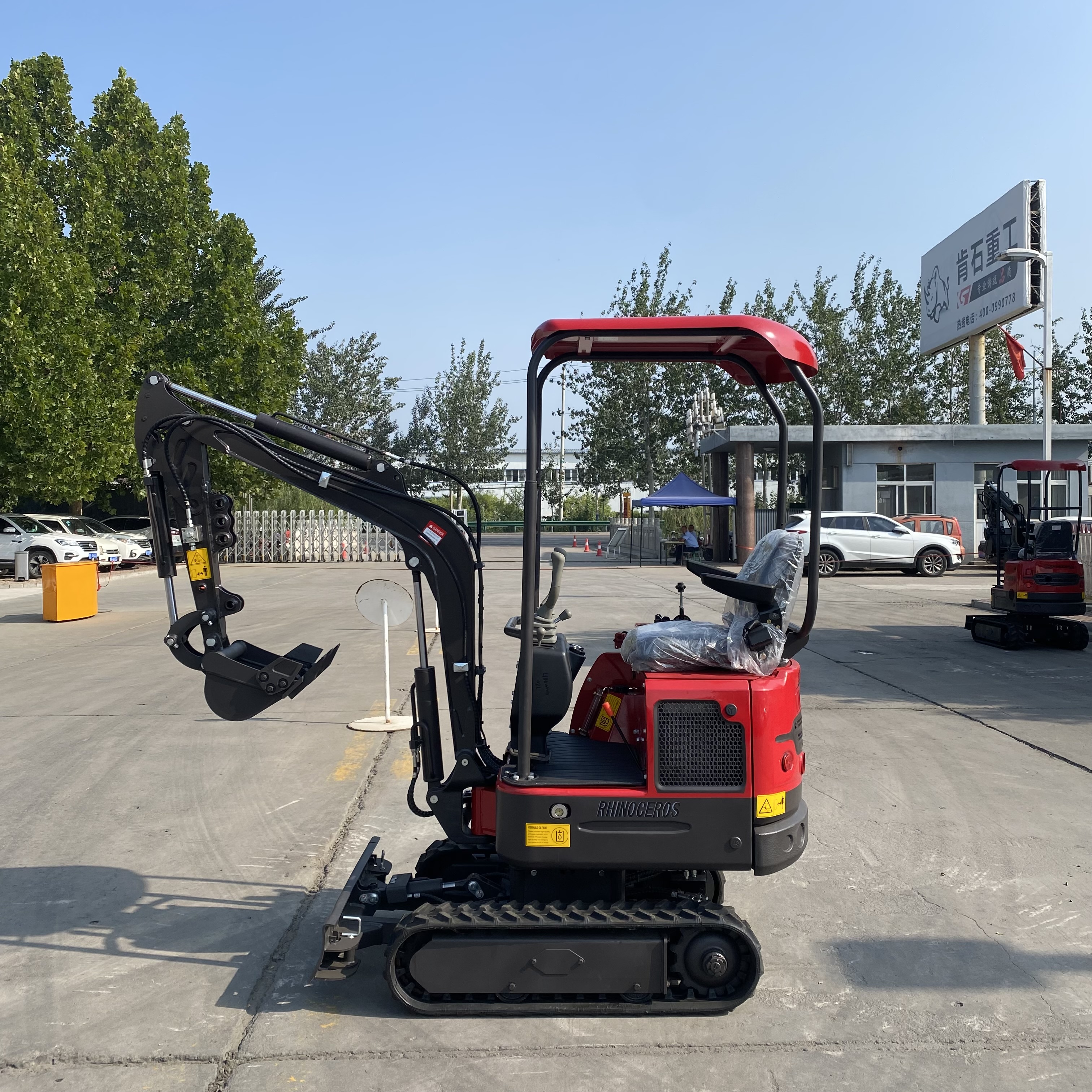

XN12 Mini Excavator with kubota engine or Yanmar engine, swing boom, telescopic tracks.

Product Description

Specification

1. The four-post ceiling is stronger. 2. New style seat,more comfortable. 3. Optional swing boom,more flexible for narrow space operation 4. Oil cooler can be used,which can work in high temperature areas for a long time 5. Well-known single-cylinder air-cooled engine 6. Wide range of application,saving time and fuel.

Brand

RHINOCEROS/RHINO/XINIU

Operating Weight

1040kg

Digging bucket capacity

0.025cbm/120kg

Digging bucket width

350mm, can add narrow bucket is 200mm

Engine

Kubota

Rated power

10.2KW

Displacement

6.8ml/r

Bore stroke

Three cylinders, water cool

Main pump

SAISIDA

Valve

BEIFANG

Swing motor

SJ-TECH (MP-1-160)

Traveling motor

KERSEN (OMS-2450)

MAIN DEMENSIONS

Overall dimension( LxWxH)

2770x896x1490 mm

Wheelbase

910 mm

Total length of track on land

1230mm

Platform ground clearance

380 mm

Platform back turning radius

784 mm

Chassis width

896 mm

Track width

180 mm

Chassis ground clearance

132 mm

Track height

320 mm

OPERATING RANGE

Max. Digging depth

1650 mm

Max. Vertical digging depth

1375 mm

Max. Digging height

2610 mm

Max. Dumping height

1850 mm

Max. Digging radius on ground

2850 mm

Min. Rotation radius

1330 mm

Max. Upgrade height of bulldozer blade

345 mm

Max. Digging depth of bulldozer blade

255 mm

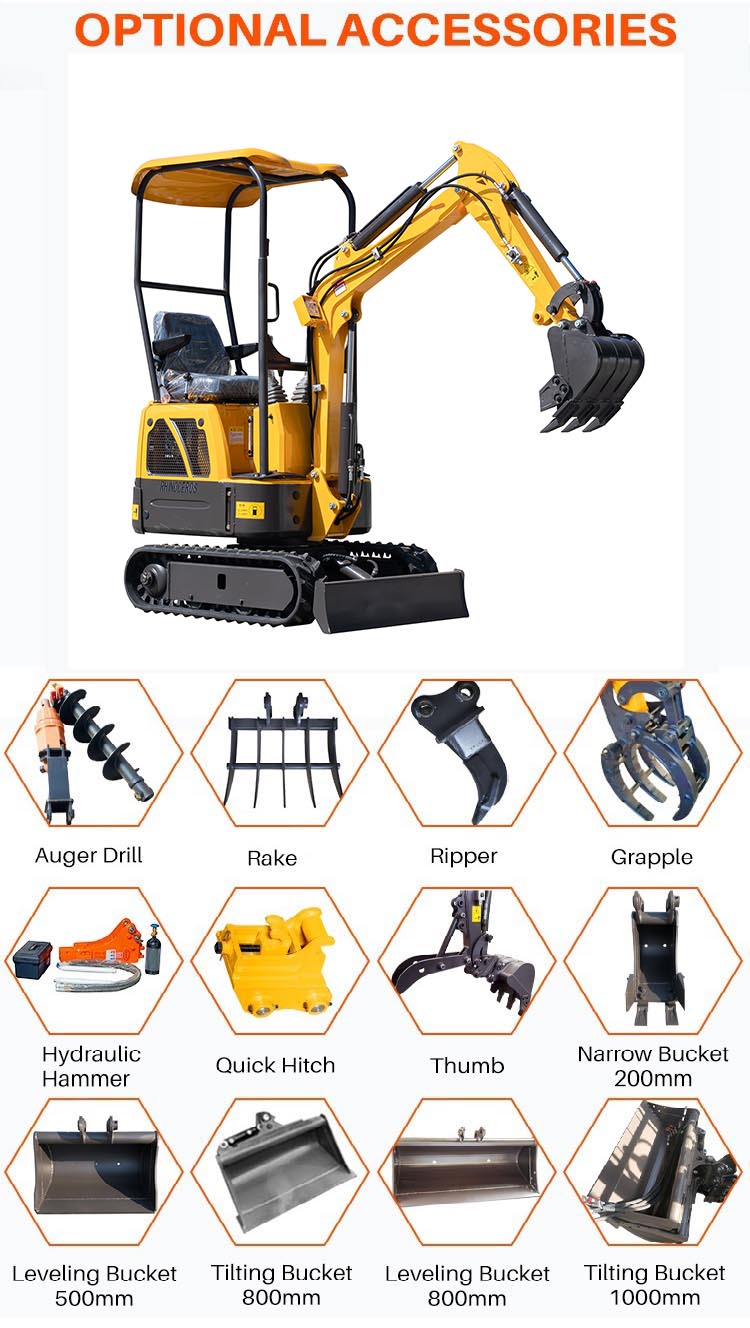

Accessories



Main Products:

Widstorm XN10

XN08 Mini Excavator

XN12 Mini Digger

Kubota engine/Yanmar engine.

XN10-8 Mini Excavator

XN12-8 Mini Excavator

Kubota engine/Yanmar engine

XN12-9 Mini Excavator with Joystick

Kubota engine/Yanmar engine

KS10-8 Mini Excavator

KS12-9 Mini Excavator with joystick

kubota engine/Yanmar engine

XN16 Mini Digger

Kubota engine/ Yanmar engine

XN18 Mini Excavator

Kubota engine /yanmar engine

XN20 Mini excavator

Italian pump and valves

X9 wheel &crawler excavator
