Product details

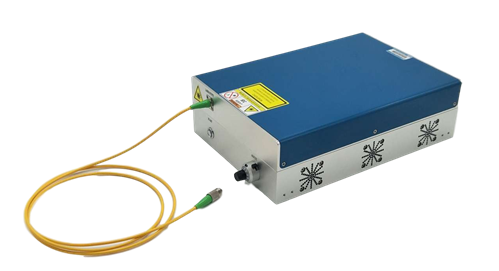

CNI provide the infrared fiber laser from 1030nm to 1550nm. The 1550 nm and 1064nm fiber laser are in single longitudinal and polarized mode. The pulsed mode up to 1 MHz modulation and pulse duration variation are also available. Mode-locked all fiber pulsed laser at 1064nm with SESAM technique is made features of high output power stability, good beam profile, compact, long lifetime,cost-effectiveness and easy operating, which is widely used in life science, scientific research, etc.

111Features:

High power fiber laser: output power >20 W
Narrow pulse width fiber laser: pulse width <10 ps
High frequency fiber laser: repetition rate >60 MHz
Single longitudinal mode laser option

11Applications:

Interference measuring method
Photoelectric inspection
Material analysis
Photodynamic therapy

Specifications

Model	Wavelength (nm)	Output power (mW)	Pulse width	Modulation rate	Longitudinal mode	Polarization	Data sheets
FL-1064-PS	1064	1-2000	<10 ps	20-60 MHz	Multi-	Random/ >15dB
FL-1064-PS-Seed	1064	0.5-1	<10 ps	20-60 MHz	Multi-	Random/ >15dB
FL-1030-Pico	1030	10-5000	100-900 ps	0.1-20 MHz	Multi-	Random/ >15dB
FL-1064-Pico	1064	10-5000	100-900 ps	0.1-20 MHz	Multi-	Random/ >15dB
FL-1070-Pico	1070	10-5000	100-900 ps	0.1-20 MHz	Multi-	Random/ >15dB
FL-1030-S	1030	1 uW-200 mW Peak power	5-100 ns (Adjustable)	1 Hz-10 MHz	Multi-	Random/ >15dB
FL-1064-S	1064	1 uW-500 mW Peak power	5-100 ns (Adjustable)	1 Hz-10 MHz	Multi-	Random/ >15dB
FL-1550-S	1550	1uW-10 mW Peak power	5-100 ns (Adjustable)	1 Hz-10 MHz	Multi-	Random/ >15dB
FL-1030-Nano	1030	0.5-10 W	0.5-250 ns (Variable)	0.1-1 MHz	Multi-	Random/ >15dB
FL-1064-Nano	1064	1000-5000	0.5-250 ns (Variable)	0.1-1 MHz	Multi-	Random/ >15dB
FL-1070-Nano	1070	0.5-10 W	0.5-250 ns (Variable)	0.1-1 MHz	Multi-	Random/ >15dB
FL-1550-Nano	1550	50-1000	0.5-50 ns (Variable)	50-1000 kHz	Multi-	Random/ >15dB
FL-1064-AO	1064	1-20 uJ	0.5-50 ns	1-1000 Hz	Multi-	Random/ >15dB
FL-1550-AO	1550	1-20 uJ	0.5-50 ns	1-200 Hz	Multi-	Random/ >15dB
FL-1064-CW	1064	1-200 W	N/A	CW/ modulated	Multi-	Random/ >15dB
FL-1080-CW	1080	1-200 W	N/A	CW/ modulated	Multi-	Random/ >15dB
FL-1550-CW	1550	1-20 W	N/A	CW/ modulated	Multi-	Random/ >15dB
FL-1064-SF	1064	1-500	N/A	CW	Single	>15dB
FL-1550-SF	1550	1-1000	N/A	CW	Single	>15dB

Certifications

Infrared Pulse Laser

Copmpany Information

Changchun New Industries (CNI) ,founded in 1996, located in Changchun, CHINA, is a manufacturer of solid-state and diode laser systems. CNI possesses accountable and dependable service as well as quality products with compact design, high reliability, good performance such as high frequency laser, high power laser, high energy laser and so on. The products are widely used for scientific research, equipment manufacturing, biomedical experiment, precision measurement, entertainment, radar communication, material processing, process control, online detection, investigation equipment and other fields.
