JST Connector 40m Close Distance Sensor

4 year ago
151 0
Product details

JST Connector 40m Close Distance Sensor
The JST Connector version is our new product design, if you need this model, please contact and confirm with us. The close distance module can measure from a near distance of 3cm.
Some FAQs for you:
1. Is it possible to instruct measurement using Serial rs232? Yes, Serial, usb, rs232 is optional.
2. Or is it possible to measure once / second? The Measuring Time is 0.125s-4s.
3. How much is the power supply conditions? 2.0-3.3v

Hardware Connections

1. Hardware Interface: 2 line USART(Rx, Tx);
2. Baudrate: 19200bps;
3. Data bits: 8b;
4. Parity: none;
5. Flow control: none.

Detailed Pictures

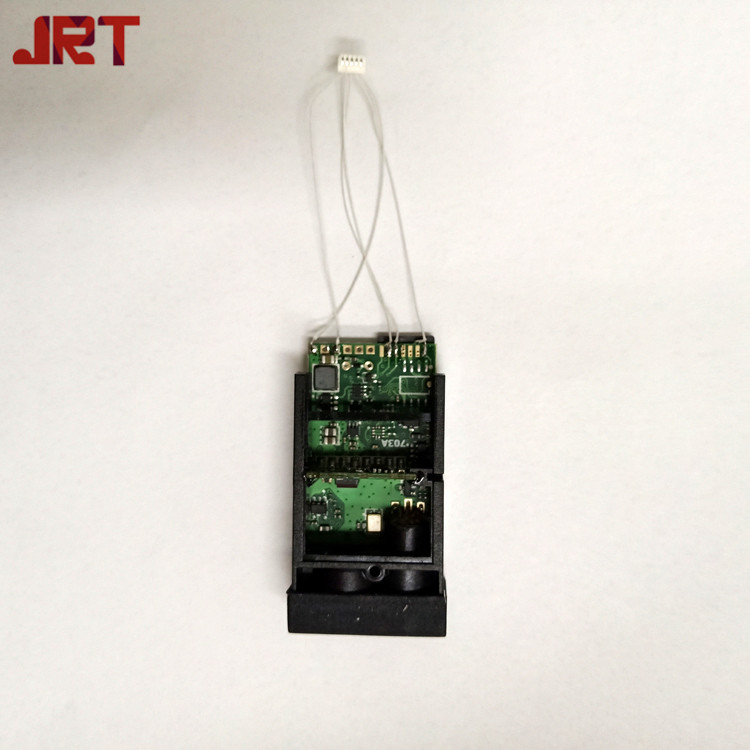

Close Distance Sensor Front

Close Distance Sensor Front

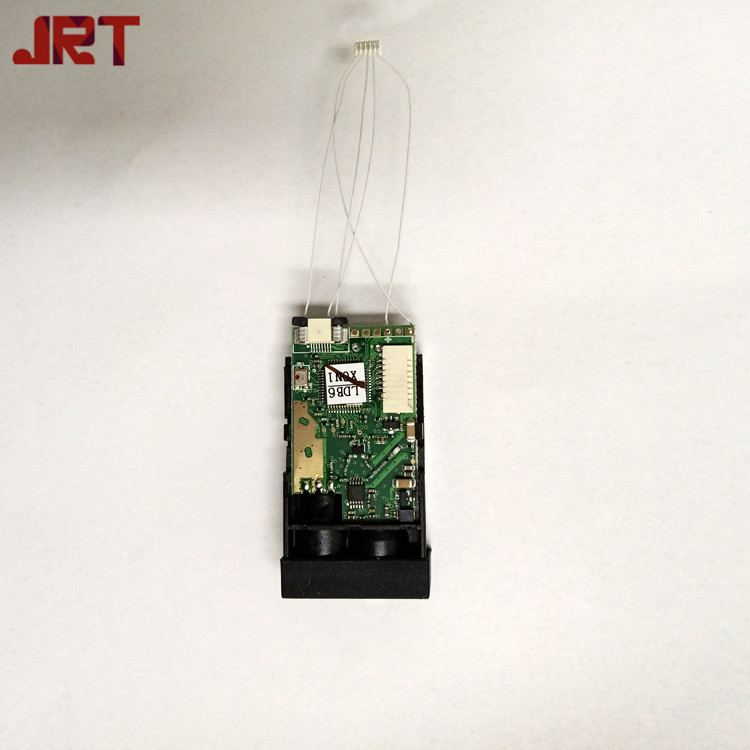

Close Distance Sensor Back

Close Distance Sensor Back

Close Distance Sensor Len

Close Distance Sensor Len

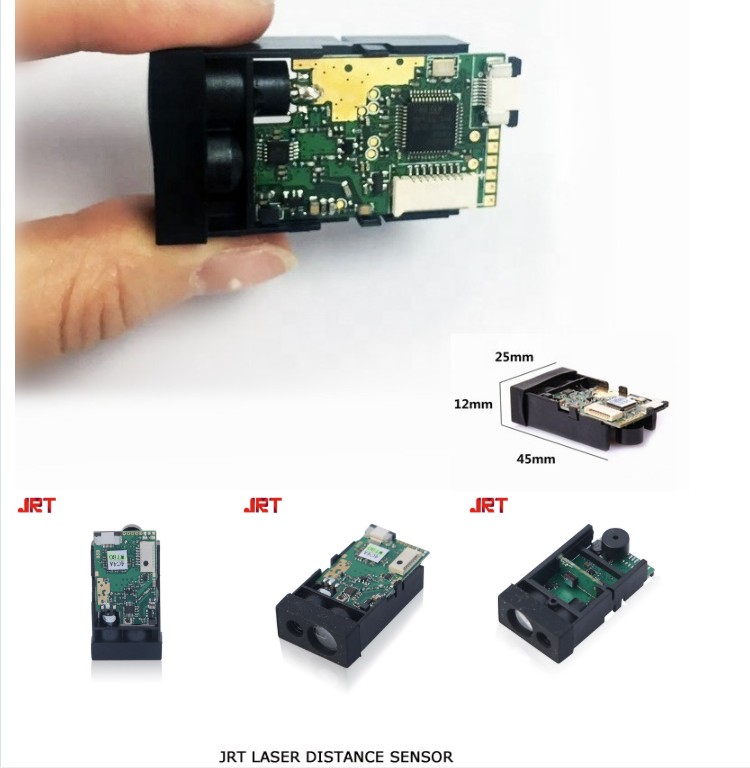

Size for Close Distance Sensor

Size for Close Distance Sensor

Diagram for Close Distance Sensor

Diagram for Close Distance Sensor

Technical Feature:

Range: 0.03-40 meters
Invisible measuring: 620-690nm
Measuring accuracy: +-1 mm
Measuring frequency: Up to 3 Hz/ 8hz
Laser type: Class 2, red
Interface options: Serial/usb/rs232/rs485/bluetooth

Size: 45*25*12mm
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree
Notes:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. 60m can be customized.
4. Voltage can be changed by power converter LDO
5. Frequency would be affected by environment.
6. Operating temperature -10 ℃~50 ℃ can be customized.
7. Analog can be customized.

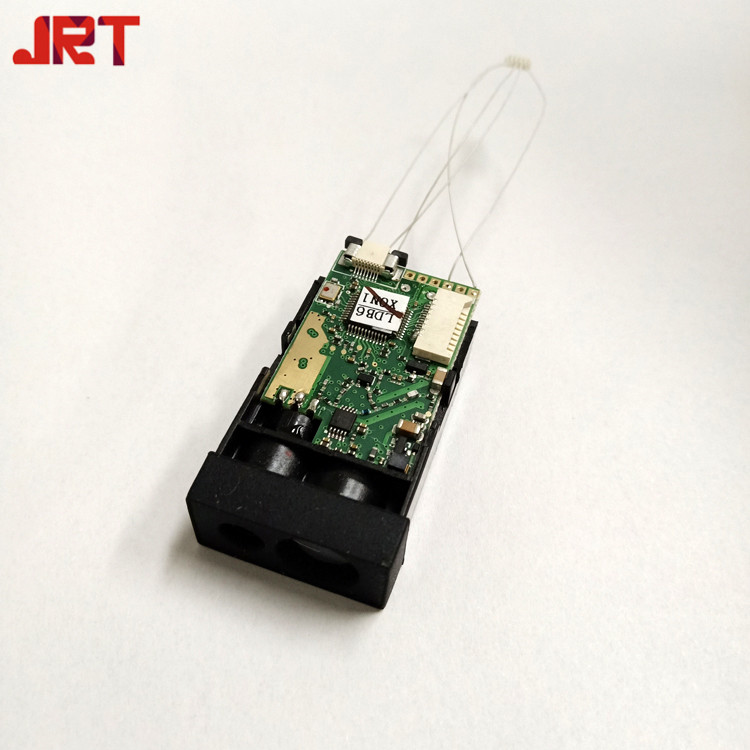

The laser and lens for Close Distance Sensor

The laser and lens for Close Distance Sensor
