1.Introduction of Tire Shredder
The Tire Shredder Machine is a special equipment for crushing the whole waste steel wireradial tire under normal temperature. The tire rubber chips are less than 50x50mm. It mainly consists of motor, speed reducer, machine frame, twin shafts, shredding blades, rotary screener, transmission system, etc.

2.Main Technical Parameter

Model	ZPS-1200
Capacity(T/hour)	2~4
Specification of feeding(mm)	≤1200
Specification of discharging(mm)	≤60x60
Main Motor(Kw)	45x2
Discharging Motor (Kw)	4
Cutter rotate speed(r/min)	13
Dimension (LXWXH)(mm)	4100x3100x3500
Weight(T)	18

3.Advantages
The shredding chamber of tyre shredder adopts folio compact structure for easy maintenance;
The shredding blades of Car Tyre Shredder edges are made of hard alloy after special hardness treatment, wear-proof. Heavy-duty, advanced technology and high output;
The Tyre Recycling Shredder adopts low noise, steady and high torque planet-gear speed reducer, easy and safe operation;
The rotary screener is of steel net structure which has large area for screening qualified size of tire chips to discharge quickly.
Low consumption, high output and advanced technology.

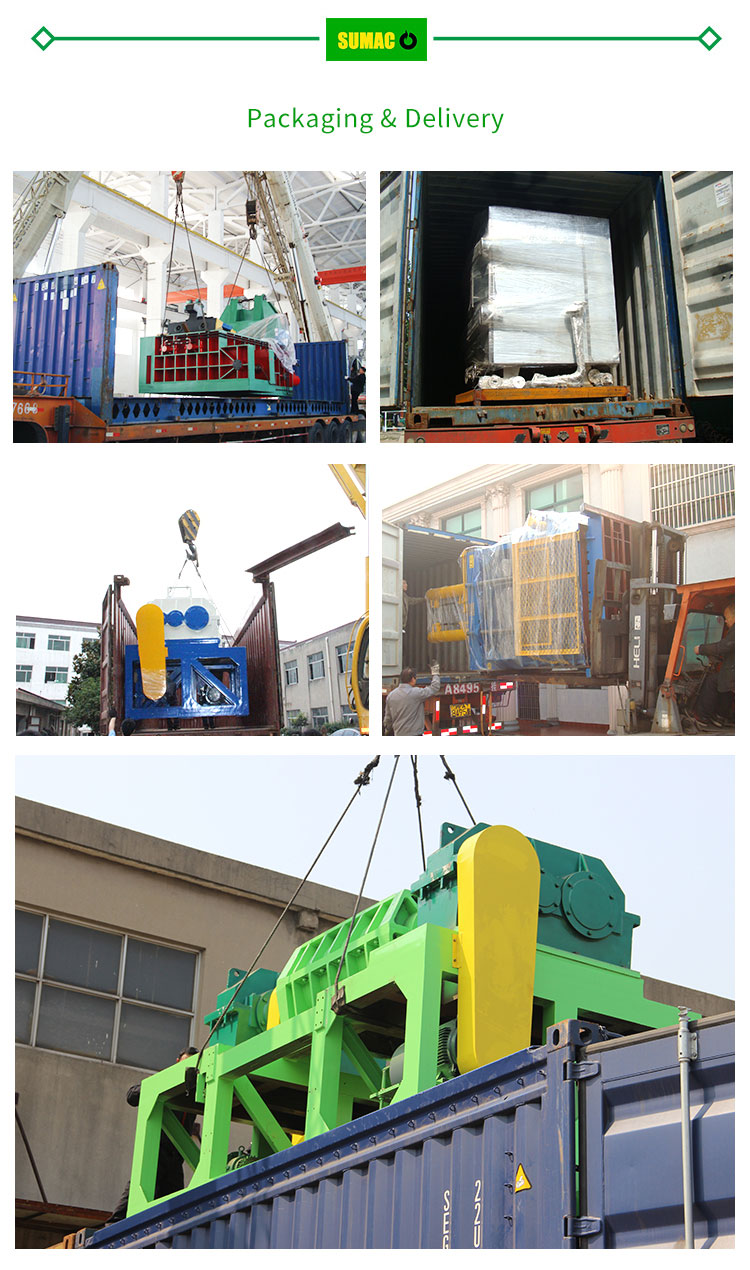

4.Packaging Delivery
