Product details

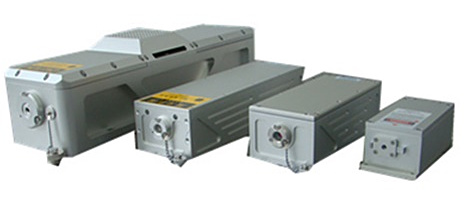

The high energy laser with high single pulse energy 450mJ for 532nm, and 20J for 1064nm. With low jitter less than 1ns and short pulse duration which you can see here, these lasers are always used in laser processing and cleaning, medical treatment and scientific research.

With the perfect performance we have got more and more orders from customers used in laser ranging, PIV fluid measurement, electro-optical countermeasure, LIBS and laser processing application.

111Features

High single pulse energy : 10uJ ~ 10J
Repetition rate: 1 Hz~ 200 KHz
Pulse width: 0.1 ns~ 20 ns
Two types cooled method optional

11Applications

Remote Sensing
PIV, LIBS
Marking & Engraving
Laser Repairing

Specifications

Wavelength (nm)	Model	Single pulse energy (mJ)	Rep. rate (Hz)	Pulse duration (ns)	Cooled method	Data sheets
266
266	DPS-266-Q	2-5	1-100	<10	Water cooled
355
	DPS-355-PS	10-40 uJ	0-1000 kHz	<15 ps	Water cooled
	DPS-355-E	1-2	1-50	<4	Conduction/ Air cooled
	DPS-355-Q	2-10	10-100	<10	Water cooled
	LPS-355-S	20-80	1-10 (<20Hz optional)	<10	Water cooled
	LPS-355-L	80-200	1-10 (<20Hz optional)	<10	Water cooled
532	EO-532-G M²<1.2	0.2-0.5	1Hz-25 kHz	<15	Air cooled
	EO-532-H M²<1.5	0.3-0.5	1-10 k	<10	Conduction/ Air cooled
	EO-532-N	0.5-2	1Hz-25 kHz	<12	Air cooled
	DPS-532-PS	10-60 uJ	0-1000 kHz	<15 ps	Water cooled
	DPS-532-H M²<1.5	1-10	1-1000 (<200kHz optional)	<4	Water cooled
	DPS-532-E Narrow pulse width	1.5-4	1-50	<4	Conduction/ Air cooled
	DPS-532-A	1-5	1-10	<10	Air cooled
	DPS-532-B	5-15	1-10	<10	Air cooled
	DPS-532-BS-D	15-50	1-20	<10	Air cooled
	DPS-532-Q High rep.rate	2-20	1-1000	<12	Water cooled
	DPS-532-J	1-20	1-20	~10	Air cooled
	LPS-532-A	30-100	1-10	~12	Water to air cooled
	LPS-532-S	30-150	1-10 (<20Hz optional)	~10	Water cooled
	LPS-532-L	200-450	1-10 (<20Hz optional)	~10	Water cooled
1064	EO-1064-G M²<1.2	0.5-1	1Hz-25 kHz	<15	Air cooled
	EO-1064-H M²<1.5	1-2	1-10 k	<10	Conduction/ Air cooled
	EO-1064-N	1-3.5	1Hz-25 kHz	<13	Air cooled
	DPS-1064-PS M²<1.3	30-150 uJ	0-1000	<15 ps	Water cooled
	DPS-1064-H M²<1.5	1-30	1-1000 (<200kHz optional)	<5	Water cooled
	DPS-1064-D	0.5-2	1-100	<10	Air cooled
	DPS-1064-E Narrow pulse width	3-8	1-50	<4	Conduction/ Air cooled
	DPS-1064-P-Mini	6	10/ 20 EXT (adjustable)	3±1	Conduction cooled
	DPS-1064-A	1-10	1-10	~10	Air cooled
	DPS-1064-B	10-30	1-10	<10	Air cooled
	DPS-1064-BS-D	30-100	1-20	<10	Air cooled
	DPS-1064-Q High rep.rate	5-40	1000	~12	Water cooled
	DPS-1064-J Harsh condition	1-40	1-20	~10	Air cooled
	LPS-1064-A	50-200	1-10	~10	Water to air cooled
	LPS-1064-S	50-300	1-10 (<20Hz optional)	~10	Water cooled
	LPS-1064-L	350-1000	1-10 (<20Hz optional)	~10	Water cooled
	LPS-1064-M Long pulse	1 J-10 J	1-20	0.1-20 ms	Water cooled
1573	DPS-1573-A	1~2	1-10	~10	Air cooled
1573	DPS-1573-Q	5-20	1-20	~10	Water cooled
2940	LPS-2940-S	100-200	1-5	0.9 ms	Water cooled

Measurement Data


Energy 10.5 J	Pulse duration 10.5 ns

Certifications

Pulsed Laser Driver

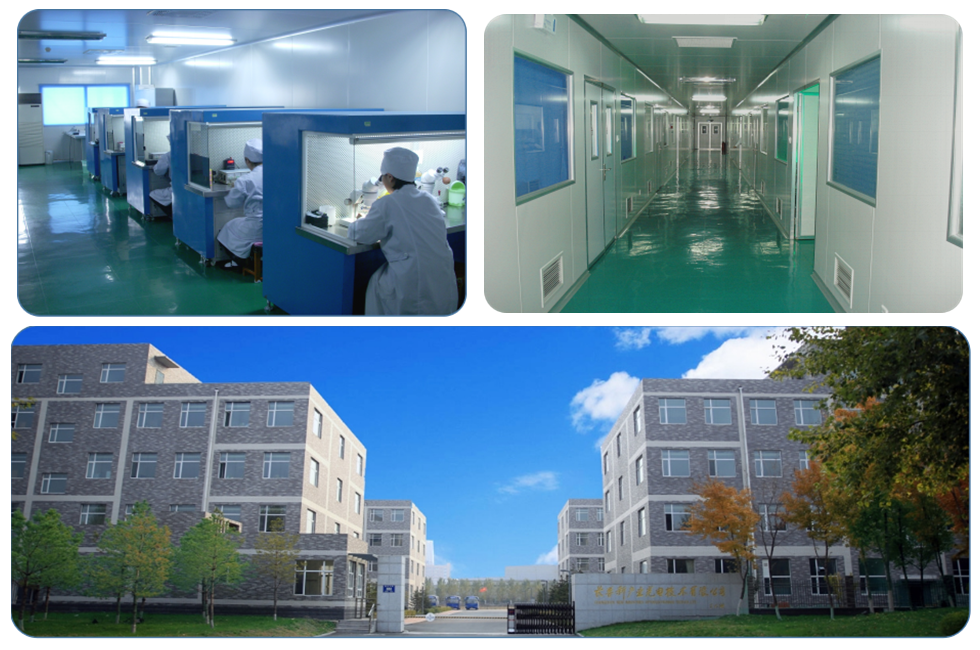

Copmpany Information

CNI owns the core technologies in lasers- UV laser, blue laser, green laser, yellow laser, orange laser, red laser, IR laser, laser systems, optical spectrum analyzer, teaching and laboratory equipment, optical measuring equipment, laser processing equipment, machine vision and the photoelectric detection. There are over 120 technical engineers engaged in the R&D and production, 65 patents and lots of successfully international cooperation projects. The technical strength makes the possibility to serve the customers complete solutions for lasers and laser products
