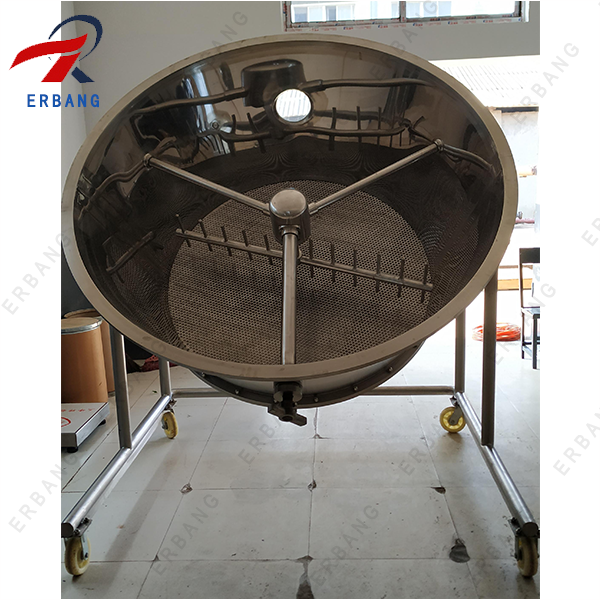

Granules Fluidized Drying Equipment
Mian Features
1. Fluidizing Drying Machine is Granules Dryer Machine
2. Fluidizing Drying Machine is Granules Drying Equipment
2.Granules Fluidizing Dyer: Seal negative pressure operation, there is no dust.
3.Because of using anti-static material as filter, it is safe in operation;
4.The equipment has no dead corner so it is easy to clean fully and there is no cross pollution;
5.It is in conformity with the requirements of GMP.
6. HMI and PLC control system, motor speed is controlled by VFD, and all process parameters can be recorded.
Granuls Drying Equipment Characteristics
☆ Fluid bed to achieve fast heat transmission of medium
☆ Seal negative pressure operation, there is no dust
☆ Because of using anti-static material as filter, it is safe in operation
☆ The equipment has no dead corner so it is easy to clean fully and there is no cross pollution
About Us:
From dryer, mixer to granulator, from unit machine to production line, we have them all. Erbang Drying is a professional manufacturer of industrial drying machine, mixing machine and granulating machine. Our flagship products include the hot air dryer, vibration fluid bed dryer, belt dryer, vacuum dryer, one dimensional mixer, two dimensional mixer, three dimensional mixer, and high speed granulator and so on. These high-performance machines have extensive applications within industries such as food, medicine and chemical. Sustained development and a strong emphasis on research and technology have bolstered our quality standards. we seek to achieve the highest level of customer satisfaction through professionally developed drying ,mixing and granulating solutions. Erbang Drying constant faith is providing perfect products to customer , excellenting service to customer !
Granules Fluidized Drier Applications
Powder Fluidizing Drying Machine is main used for drying powder or granules from pharmaceutical, foodstuff, chemical and other industries
|
Item |
Unit |
3 |
5 |
30 |
60 |
120 |
200 |
300 |
500 |
|
|
Container of raw material |
diameter |
Mm |
300 |
400 |
700 |
950 |
1200 |
1400 |
1600 |
1800 |
|
volume |
L |
12 |
22 |
100 |
220 |
420 |
670 |
1000 |
1500 |
|
|
capacity |
min |
Kg/batch |
1.5 |
4 |
15 |
30 |
80 |
100 |
150 |
250 |
|
max |
Kg/batch |
4 |
6 |
36 |
72 |
140 |
240 |
360 |
600 |
|
|
fan |
power |
Kw |
2.2 |
4 |
5.5 |
11 |
18.5 |
22 |
30 |
45 |
|
Steam consumption |
Kg/batch |
12 |
23 |
70 |
140 |
211 |
282 |
366 |
465 |
|
|
Compressed air |
M3/min |
0.3 |
0.3 |
0.3 |
0.6 |
0.6 |
0.9 |
1.1 |
1.6 |
|
|
Temperature |
℃ |
Room temperature to 120℃ |
|
|||||||
|
Collect rate |
% |
≥99 |
|
|||||||
|
Content of final moisture |
% |
≈0.2 |
|
|||||||
|
Noise |
dB |
≤75dB(A) (main machine is separated from fan) |
|
|||||||
|
Height of main machine |
Mm |
2200 |
2400 |
2800 |
3000 |
3300 |
3800 |
4000 |
4600 |
|
