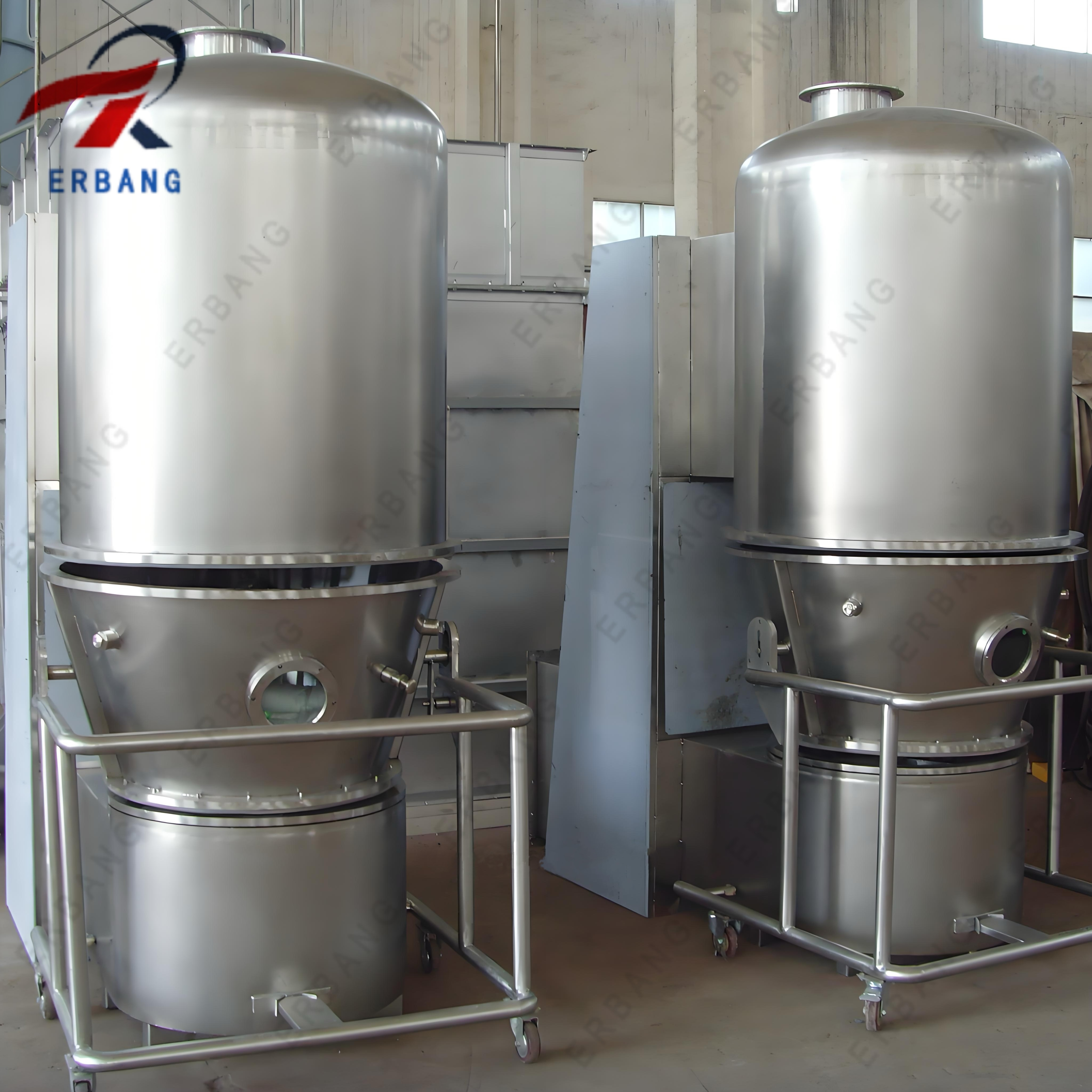

Capsule Granule Dry Granulating Machinee

Capsule Granule Dry Granulating Machinee Characteristics:

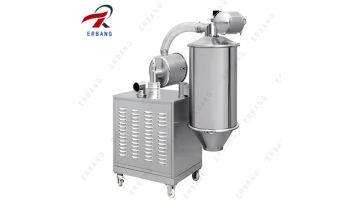

1. The feeding system for Capsule Granule Granulating Machine can be by manual or vacuum feeder .
2. Machine materials of Spray Liquid Granulating Machine : AISISUS304 , AISISUS316L, and other material .
3. For the electrical component of Capsule Granule Dry Granulator , we mainly use international brand such as ABB ,Siemens or Schneider.

Capsule Granule Making Machine Feature:
The flow ability is improved and the dust is reduced, because of Granulator. Because of powder

Granulating Machine, its solubility is improved,

Mixing machinery, Granulator machine and drying machine processes are completed in one step inside the machine.

The operation is safe because the anti-static filter cloth adopted.

It's safe for operator if explosion take place, because explosion device is adopted.

The loading and unloading are quick, light and clean, meet the requirements of GMP.

Medicine Making Machine Application:
Pharmaceutical industry : tablet capsule, low sugar or no sugar granule of Chinese traditional medicine.
Foodstuff: cocoa, coffee, milk powder, juice of granulate, flavoring and so on.
Other industries: pesticide, feed, chemical fertilizer, pigment, dyestuff and so on.
Drying: powder or granule state of wet material
Coating: protection layer, color, controlled release, film, or bowels solved coating of granules and pills.

Medicine Granules Granulator Principle:

The powder granule in vessel (fluid bed) appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Product Parameter:

Item		Unit	15	30	60	120	200	300	500
vessel	volume	L	45	100	220	420	670	1000	1500
vessel	diameter	Mm	550	700	1000	1200	1400	1600	1800
capacity	min	Kg	10	15	30	80	100	150	250
capacity	max	Kg	20	45	90	160	300	450	750
fan	Air volume	M3/h	1400	1800	3000	4500	6000	7000	8000
	pressure	mmH2O	480	480	950	950	950	950	950
	power	Kw	5.5	7.5	11	18.5	30	37	45
Steam consumption		Kg/h	42	70	141	211	282	366	451
Compressed air		M3/min	0.9	0.9	1.0	1.0	1.2	1.5	3.0
weight		Kg	900	1000	1100	1300	1500	1800	2500
temperature		℃	Room temperature to 120℃
Working time		Min	45-90min( decided by raw materials)
Collect rate		%	≥99
noise		Dba(A)	≤75dB(A) (main machine is separated from fan)
size (L×W×H)		M	1.25×0.9 ×2.5	1.6×1.1 ×2.5	1.85×1.4 ×3	2.2×1.65 ×3.3	2.34×1.7 ×3.8	2.8×2.0 ×4.5	3×2.25 ×5.0

In order to ensure quality of product, we focus on user 's requirements and control improvement and enhancement quality of products .The quality assurance mainly focus on the processes of ensuring production readiness inspection, control of raw materials and components, process control, critical parts, important parts of quality control, assembly quality control, process control testing, measurement equipment control. Pay close attention to the implementation of the quality assurance work, strictly to three inspection system of self-checking, mutual inspection, special inspection. The key point of Quality assurance is focuses on critical parts, important parts of quality control, the quality standards required by ISO9000 quality control procurement documents in order to clarify its status and acceptance of quality standards for company's re-inspections ; For critical parts and important that the key processes of identification and corresponding technical documentation, control by "the implementation of key quality control process", and complete, accurate and complete original records. Difficulties in quality assurance is a special process control, quality assurance is mainly painting, has developed a special process (painting) process documents, take the appropriate technical measures, to quality assurance.

In the production process, we pay close attention to quality control of each process. Every component, every process was strictly controlled. Enhanced the quality inspection process, the establishment of the necessary quality control point, the process by a full-time staff and quality inspector for inspection and supervision. Improved testing procedures and operating instruction.
