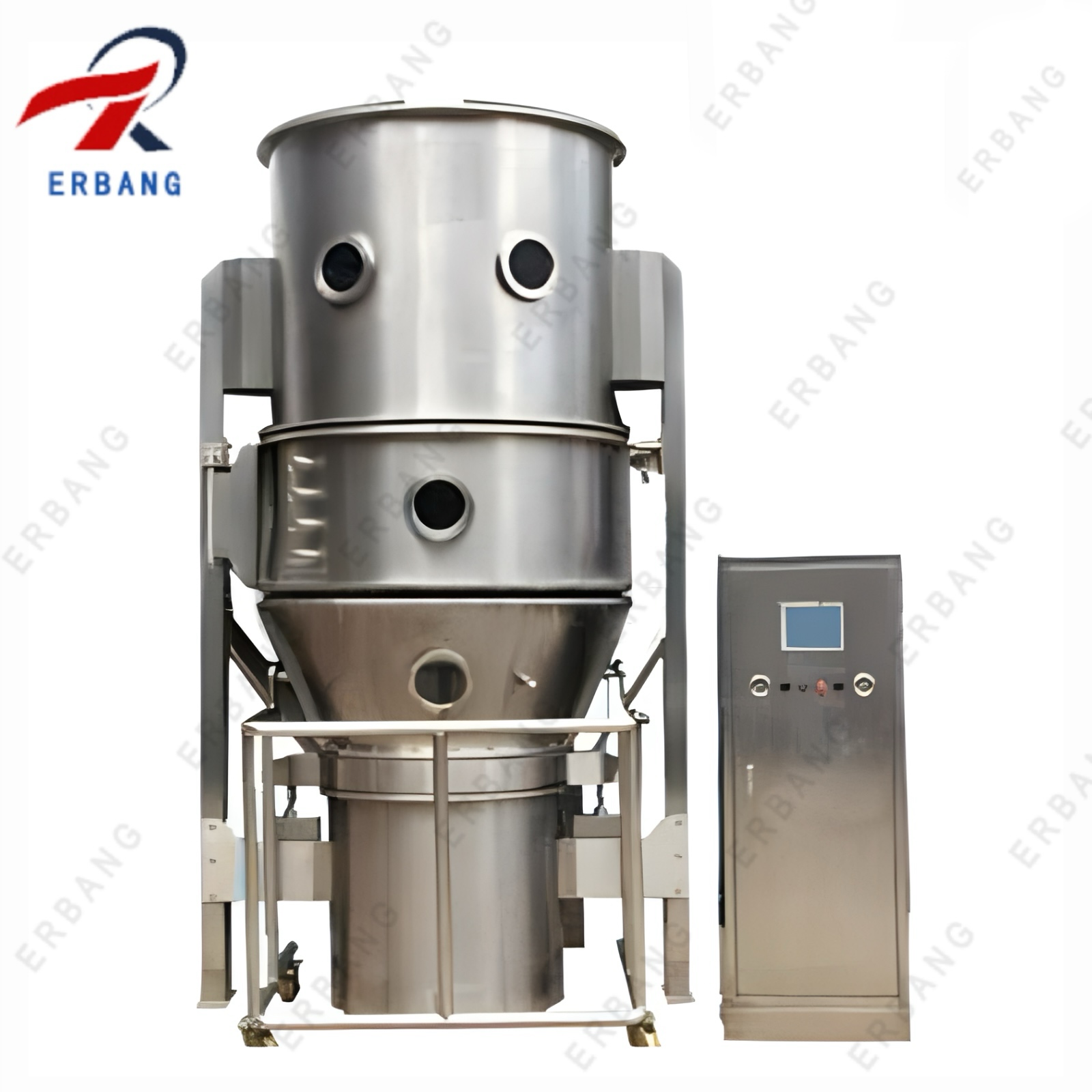

Fluidized Bed Dryer Granulator
Application:
Pharmaceutical industry : tablet capsule, low sugar or no sugar granule of Chinese traditional medicine.
Foodstuff: cocoa, coffee, milk powder, juice of granulate, flavoring and so on.
Other industries: pesticide, feed, chemical fertilizer, pigment, dyestuff and so on.
Drying: powder or granule state of wet material
Coating: protection layer, color, controlled release, film, or bowels solved coating of granules and pills.
Main Features:
The flow ability of Dryer Granulator Machine is improved and the dust is reduced, because of Granulator. Because of powder
Granulating, its solubility is improved by Erbang company,
Mixing, Granulator and drying processes are completed in one step inside the Boiling Dryer Granulator.
The operation of One Step Granulating Machine is safe because the anti-static filter cloth adopted.
It's safe for operator if explosion take place, because explosion device is adopted.
The loading and unloading are quick, light and clean, meet the requirements of GMP.
Dry Granulator Machine Principle:
The powder granulating machine in vessel (fluid bed) appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
| Item | Unit | 15 | 30 | 60 | 120 | 200 | 300 | 500 | |
| vessel | volume | L | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| diameter | Mm | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| capacity | min | Kg | 10 | 15 | 30 | 80 | 100 | 150 | 250 |
| max | Kg | 20 | 45 | 90 | 160 | 300 | 450 | 750 | |
| fan | Air volume | M3/h | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
| pressure | mmH2O | 480 | 480 | 950 | 950 | 950 | 950 | 950 | |
| power | Kw | 5.5 | 7.5 | 11 | 18.5 | 30 | 37 | 45 | |
| Steam consumption | Kg/h | 42 | 70 | 141 | 211 | 282 | 366 | 451 | |
| Compressed air | M3/min | 0.9 | 0.9 | 1.0 | 1.0 | 1.2 | 1.5 | 3.0 | |
| weight | Kg | 900 | 1000 | 1100 | 1300 | 1500 | 1800 | 2500 | |
| temperature |
℃ |
Room temperature to 120℃ | |||||||
| Working time | Min | 45-90min( decided by raw materials) | |||||||
| Collect rate | % | ≥99 | |||||||
| noise | Dba(A) | ≤75dB(A) (main machine is separated from exhaust fan) | |||||||
| size (L×W×H) | M | 1.25×0.9 ×2.5 | 1.6×1.1 ×2.5 |
1.85×1.4 ×3 | 2.2×1.65 ×3.3 |
2.34×1.7 ×3.8 | 2.8×2.0 ×4.5 |
3×2.25 ×5.0 |
|
