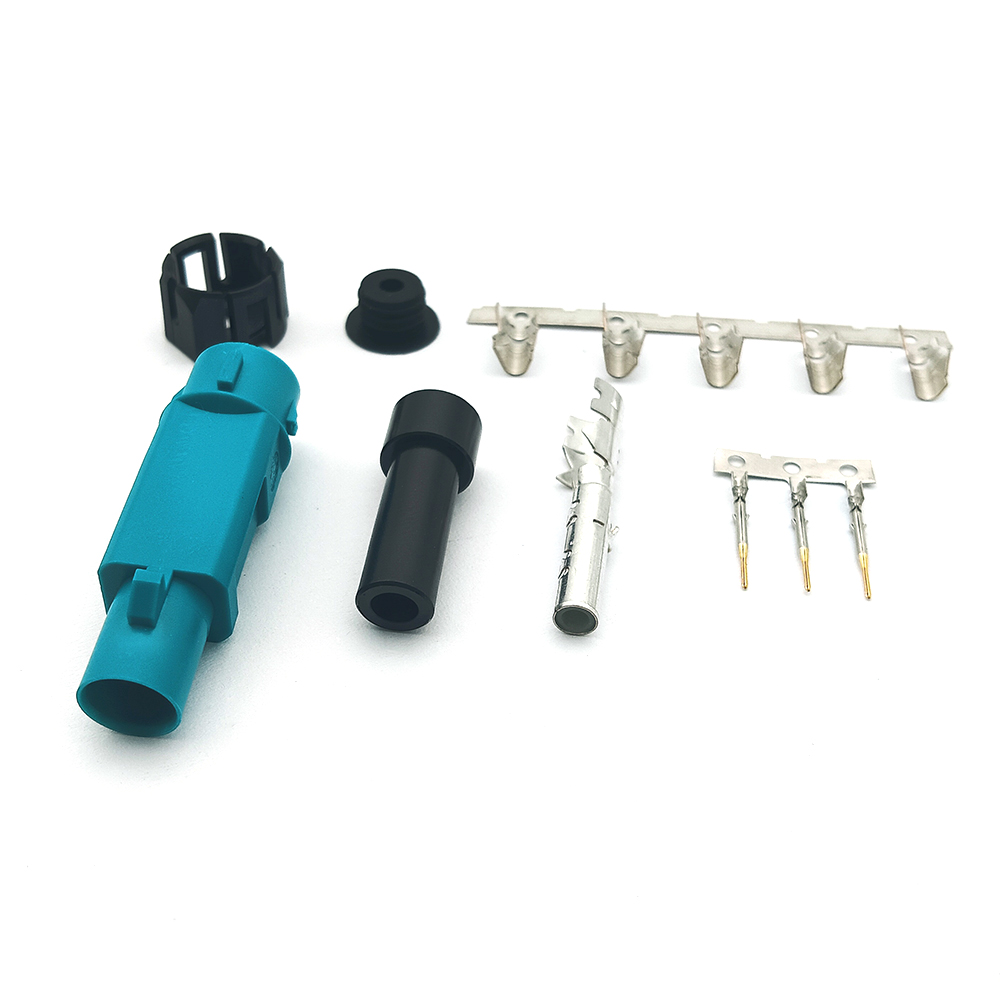

Universal Waterproof Z-Code Fakra SMB Male Plug Crimp Coaxial Connector for RG174 Cable

Overview:

This Z-Code Fakra SMB male plug is a universal waterproof crimp-type coaxial connector designed for use with RG174 cable. It is ideal for automotive and industrial applications requiring secure, high-frequency RF connections in harsh environments.

Key Features:

Connector Type: Fakra SMB Male Plug
Coding: Z-Code, prevents mismating
Cable Compatibility: RG174 coaxial cable
Mounting Type: Crimp (easy field installation)
Waterproof Rating: IP67-rated when properly mated
Impedance: 50 ohms
Frequency Range: DC to 6 GHz
Material:
- Housing: Plastic Fakra shell
- Body: Brass with gold or nickel plating

Applications:
- Automotive cameras and sensors
- Telematics and infotainment systems
- GNSS, LTE, and other RF modules
- GMSL2 or FPD-Link III coaxial transmission systems

Benefits:

Secure connection with keyed housing to avoid mismatches
Weather-resistant design for outdoor or vehicle environments
Reliable signal transmission at high frequencies
Compact and lightweight, ideal for space-constrained applications

Would you like this formatted as a product datasheet, or need drawings/specs in PDF format? Please contact our sales directly. We can also provide Mini Fakra connector, HSD connector, HSL connector, wire harness and so on.
