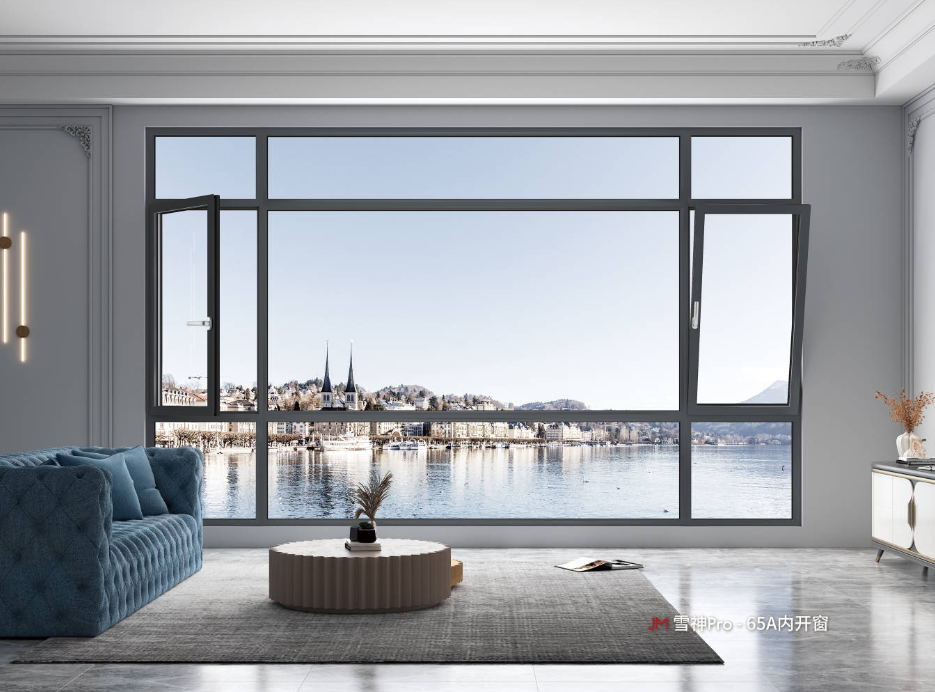

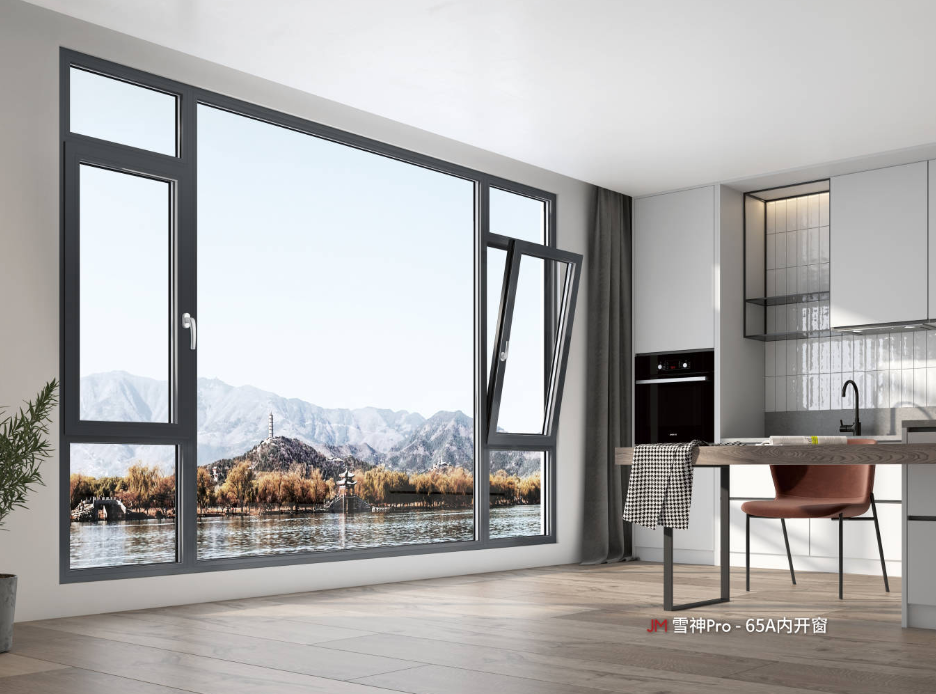

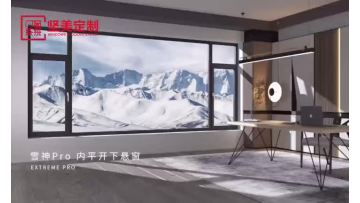

Khione Series - The Premier Tilt and Turn Window System

Redefining Comfort & Security with European Engineering

JMA's Khione Series Tilt and Turn Windows represent the pinnacle of modern fenestration technology, engineered to deliver year-round thermal comfort while integrating seamlessly with Aluminium Window Frame Profiles and Thermal Break Aluminum Windows technologies.

1. Unmatched c& Aesthetic Design Thoughtful Safety Features

✔ Radius-corner sash design - Eliminates sharp edges, reducing injury risks by 72% versus standard windows

✔ Flush-mounted frames - Creates clean sightlines both interior and exterior

Design Element	Khione Series	Conventional Windows
Corner Safety	Rounded 10mm radius	90° sharp corners
Frame Alignment	± 0.5 mm precision	± 2mm tolerance
Drainage System	Concealed channels	Visible external grilles

The integrated Thermal Break Aluminium Profile construction ensures these safety features don't compromise thermal performance.

2. Advanced Hardware & Operation

Premium German Engineering

· Concealed multi-point locking - Up to 18 locking positions for burglar resistance

· Parallel Opening Hinge mechanism - Allows 15° micro-ventilation or 90° full opening

· Detachable sashes - Simplifies cleaning of Tilt And Turn Double Glazed Windows

Certified Performance

· PAS24 Secured by Design - Tested against forced entry

· EN 14351-1 - European performance standard compliance

· 200,000-cycle durability - Exceeds industry norms by 3x

3. Superior Thermal Efficiency

Breakthrough Insulation Technology

· U-value as low as 0.8 W/m²K - 8x more efficient than single-glazed units

· Triple-sealed gaskets - Air infiltration <0.5 m³/(h·m²) @100Pa

· Thermal Break Aluminum Extrusion - 34mm polyamide barrier

Glazing Options

Type	Configuration	U-value	Sound Reduction
Standard	24mm IG Low-E	1.1	35dB
Premium	44mm Triple Glazed	0.7	42dB
Security	Laminated/Tempered	1.0	38dB

4. Complete Product Ecosystem

JMA's extensive range includes:

· Aluminium Sliding Window Profile systems

· Aluminium Casement Windows with push-out operation

· Micro Ventilation Windows for constant air exchange

· Aluminium Bifold Doors for seamless indoor-outdoor living

All systems utilize compatible Window Extrusion Profiles for unified aesthetics.

Technical Specifications

Structural Details

• Frame Depth: 65mm

• Maximum Panel Size: 1500x2400mm

• Color Options: 200+ RAL shades

• Glass Thickness: Up to 48mm

Material Science

• Alloy: 6063-T5

• Surface Treatments: Anodized/Powder-coated

• Recycled Content: ≥75%

Khione Series - Tilt and Turn Window Industry Leader

FAQs about Khione Series inward opening and tilting windows

Q1: What is the difference between the Khione series and traditional inward opening windows?

A: The Khione series adopts an isobaric rain curtain design. Through the isothermal matching technology of profiles and glass, it can still keep the indoor warmth in an extremely cold environment of -30℃, realizing the experience of "no fear of cold winter, four seasons like spring". Its sealing system has maintained stable performance after 200,000 opening and closing tests, far exceeding the industry standard.

Q2: What safety designs does the product have?

A: Equipped with a hidden inward opening/tilting hardware system, supporting two opening modes:

• Inward flat opening mode: child safety lock design

• 15-degree micro-ventilation inward tilting mode: anti-fall device + anti-theft net compatible structure

All corners are connected with reinforced corner codes and passed the 1-hour fire test.

Q3: Does it support replacement of imported brands such as Pella?

A: Provide a replacement solution that is fully compatible with the Pella 250/350 series:

• Profile width is suitable for 65mm standard notch

• Upgradeable to three-layer insulating glass (U value ≤1.1 W/(m²·K))

• Provide original installation hole matching service.

Q4: What is the production capacity and delivery cycle?

A: Annual production capacity reaches 1.5 million square meters, standard size and regular color delivery within 7 days:

✔ EPE pearl cotton + wooden box packaging

✔ Support L/C, T/T payment

✔ Global sea/air logistics solution

Q5: How to verify product performance?

A: We provide:

① CMA certification test report (waterproof grade ASTM E331)

② Guangdong Quality Inspection Institute 200,000 fatigue test video

③ Dubai Marina Project Acceptance Documents (Salt Spray Test 5000 hours)

Q6: Do you accept customized development?

A: Support full-process customization:

• Color: RAL color card/Pantone color matching

• Glass: self-cleaning/Low-E/laminated, etc.

• Hardware: imported from Germany or domestically produced high-end options
