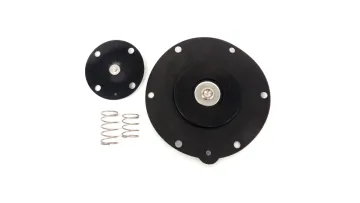

K4504 M2187 Goyen Type CA/RCA45 Buna Diaphragm Kit
This is K4504 M2187 buna diaphragm kit, used in Goyen 1 1/2" CA45T, RCA45T, CA45DD, RCA45DD, CA45FS, RCA45FS diaphragm valves. Because the diaphragm of pulse valve is a flexible mechanism which needs to open and close frequently to control the air flow, it requires good flexibility and as high sealing as possible.
Working Principle: When different pressure (or force) acts on both sides of the diaphragm of the pulse valve, the diaphragm moves to the lower side of the pressure, resulting in the displacement of the center of the diaphragm.
Applications: The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
Overall Dimension of K4504 M2187 Buna Diaphragm Repair Kit:

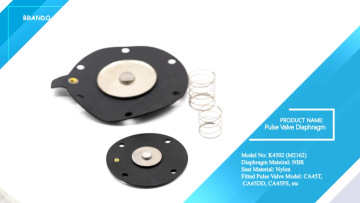

Product Details of K4504 M2187 Goyen Type Diaphragm Repair Kit:
Available Models of Goyen Type Buna/Buna Diaphragm Repair Kits:
| Valve Model | Series | Note | Pipe Size | Repair Kit |
| CA/RCA20 | DD, T | * | 3/4'' | K2002 (M764) |
| CA/RCA25 | DD, FS, MM, T | * | 1'' | K2502 (M736) |
| CA/RCA32 | – | * | 1 1/2'' | K2522 (M736) |
| CA/RCA35 | T | * | 1 1/2'' | K3502 (M1591) |
| CA/RCA40 | DD, MM | * | 1 1/2'' | K3502 (M1591) |
| CA/RCA45 | DD, FS, T | *** | 1 1/2'' | K4504 (M2187) |
| CA/RCA50 | T |
*** 1B |
2'' | K5004 (M1638A) |
| CA/RCA50 | T |
*** 3B |
2'' | K5004 (M1638A) |
| CA/RCA62 | T |
*** 1B |
2 1/2'' | K5004 (M1638A) |
| CA/RCA62 | T |
*** 3B |
2 1/2'' | K5005 (M1639A) |
| CA/RCA76 | MM, T |
*** 3B |
3'' | K7600 |
| CA/RCA76 | MM, T |
*** LP |
3'' | K7604 |
| CA/RCA76 | MM, T |
*** 1B LP |
3'' | K7610 |
| CA/RCA102 | MM | *** | 4'' | K10203 |
| CA/RCA8 | MM | *** | 8'' | K8000 |
* Single Valve
** Older version with Single Valve
*** Double Valve
1B 1 Bleed Hole
3B 3 Bleed Holes
LP Low Pressure
Brando Factory Production Pictures of Solenoid Valve Diaphragms:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
