24v 500w bldc servo motor with brake

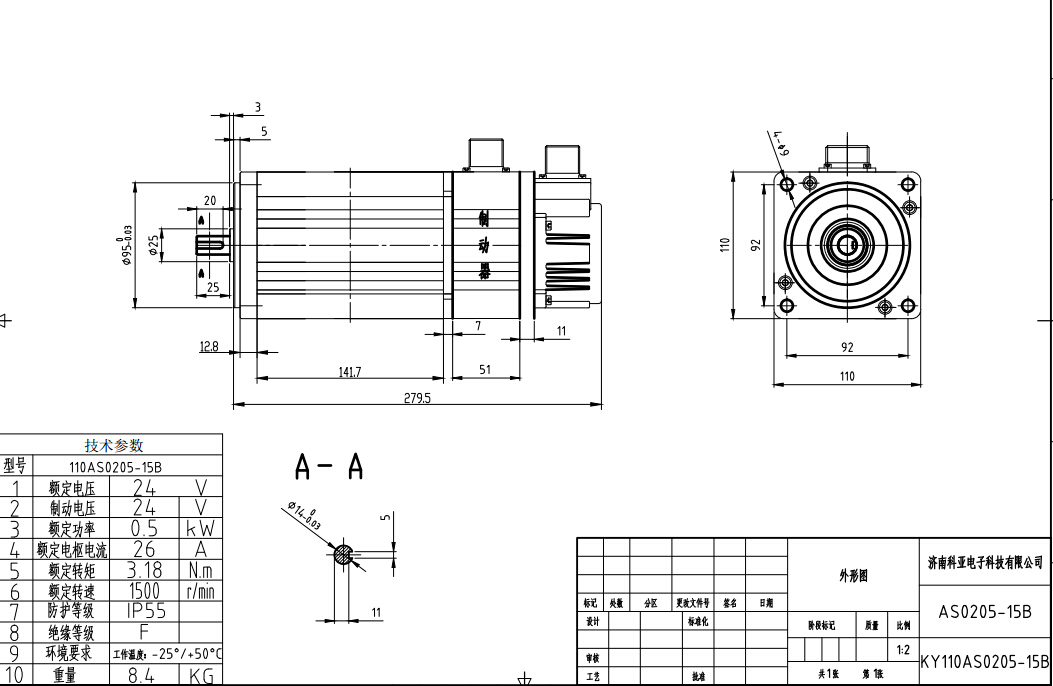

KY110AS0205-15B Right Angle Bldc Motor,L298N Servo Motor,L293D Servo Motor
Brushless DC motors feature high torque, high speed with a small size and weight; brushless DC motors are ideal for heavy duty servo applications with frequent overload conditions as well as for continuous duty applications where maximum operational lifetime is required.
| Rated voltage | 24V |
| Rated power | 500W |
| Rated current | 26A |
| Rated speed | 1500rpm |
| Rated torque | 3.1N.m |
| Peak torque | 10.8N.m |
| Motor shaft diameter | 14mm |
| Motor length | 223mm |
| Encoder | 2500ppr, optical |
| Brake | 24V |
| Weight | 6.6kg |
The 24v 48v robot servo motor system be widely used in mobile robot, for example, crawler robot chassis, inspection robot, automatic guided vehicle, fire fighting robot, self-guided vehicle.
