Main Application
Ribbon mixer mixing machine is an efficient horizontal mixer. Widely used in chemical, pharmaceutical, food and so on. It can mix materials in two forms, solid-solid (powder material) and solid-liquid (powder material; fluid material).
Working principle
Ribbon mixer blending machine is mainly composed of mixing drum, spiral belt and transmission part. The spiral is divided into inner and outer layers. The inner belt makes the material move outward, and the outer belt makes the material move inward, forming a good circulation of the material. The circular motion of the webbing enables the mixer machine to achieve good mixing efficiency in a very short time.

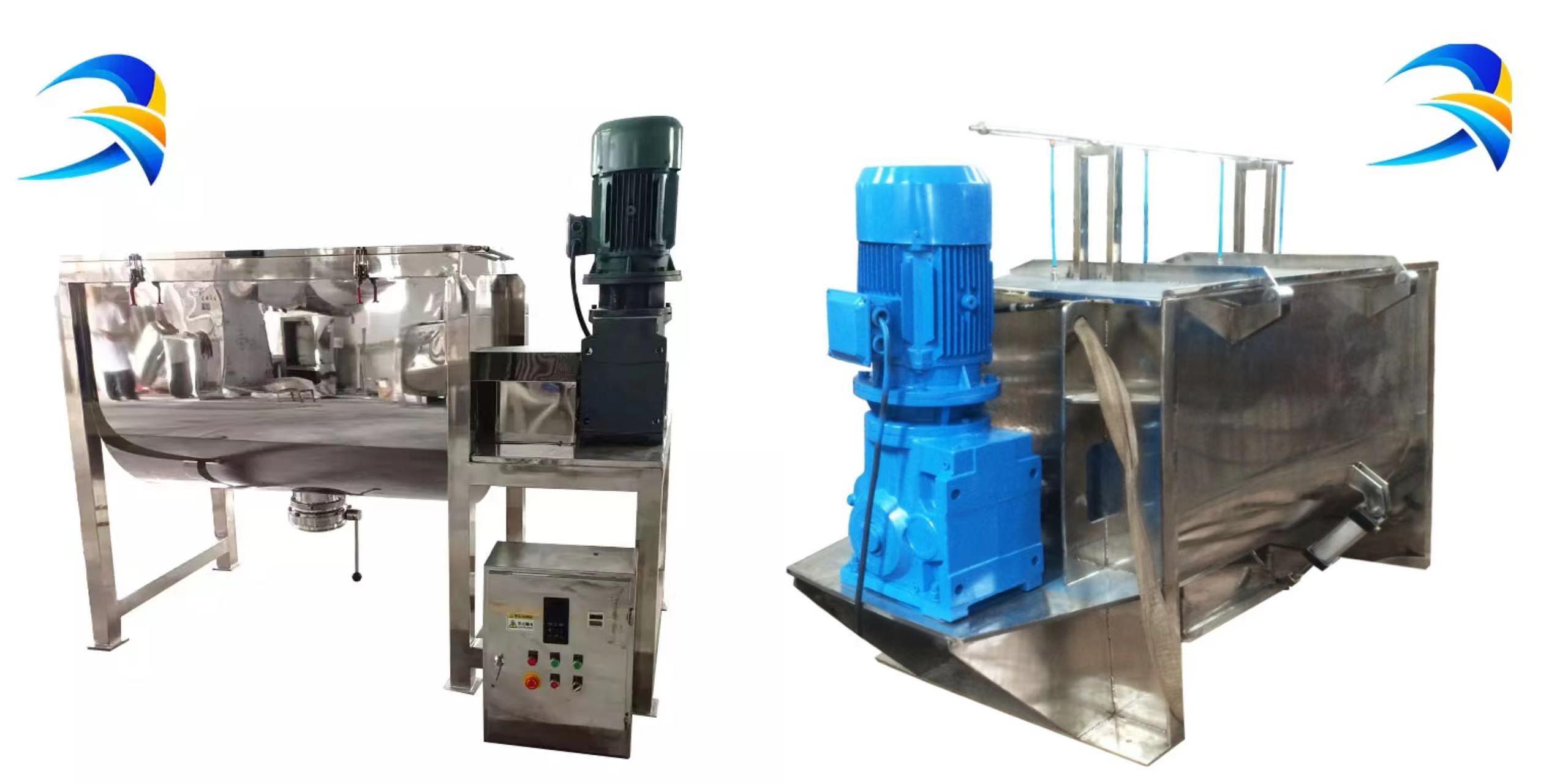

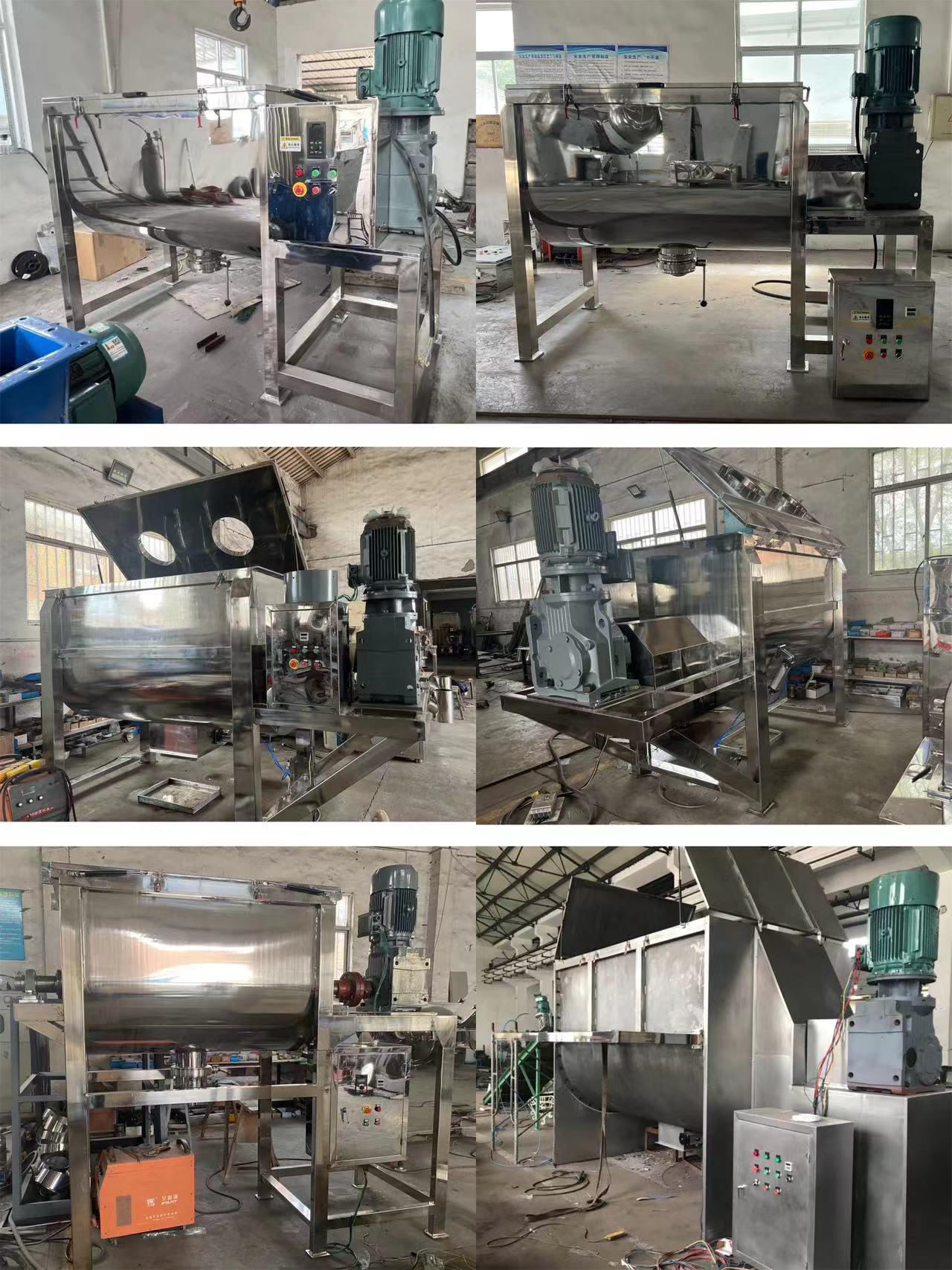

PRODUCT DISPLAY

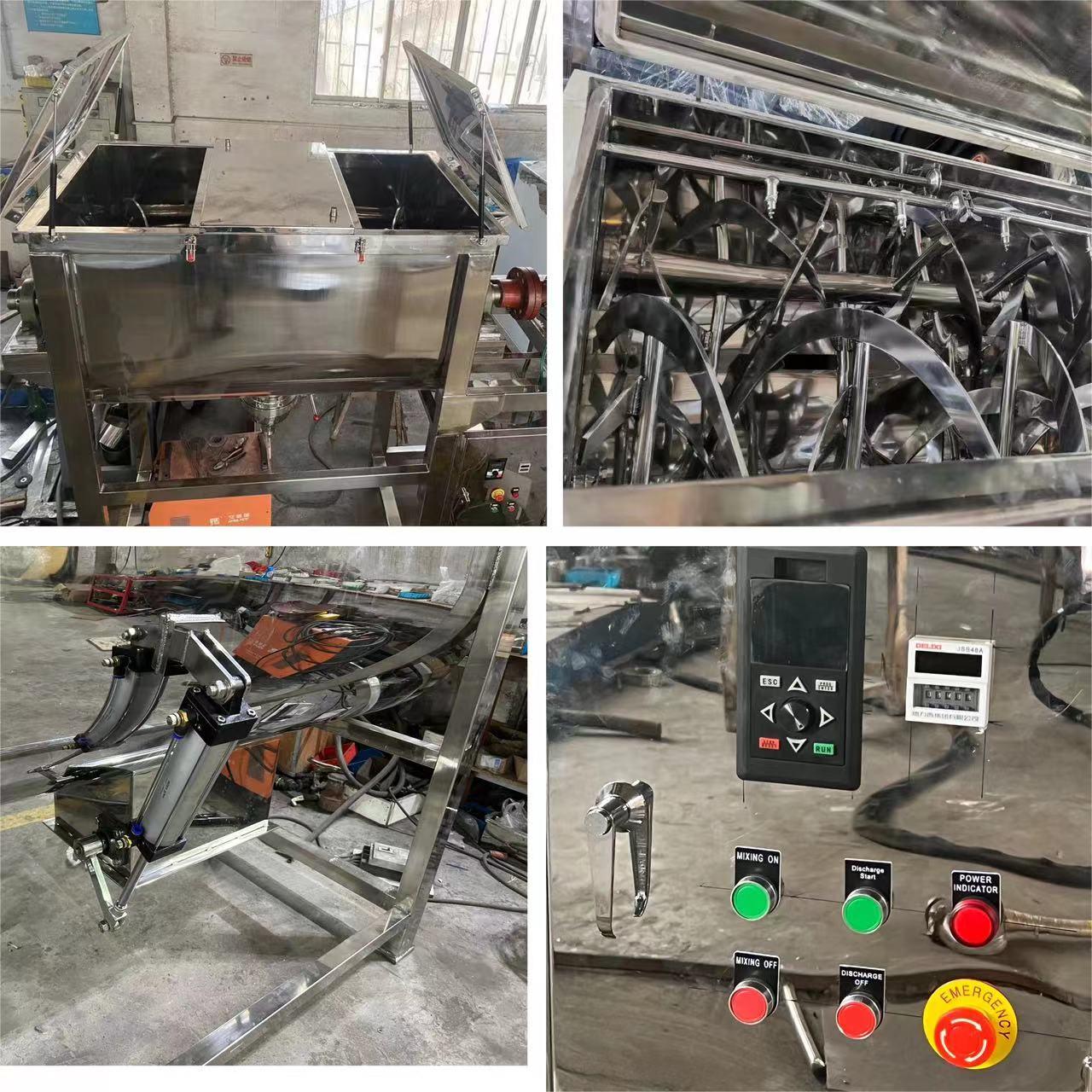

DETAILS DISPLAY
APPLICATION SCENARIOS
TECHNICAL DATA
|
Model
|
Total volume (m3)
|
Loading coefficient
|
Power(kw)
|
Overall size(mm)
|
Weight(kg)
|
|
WLDH-0.1
|
0.1
|
0.4-0.8
|
3
|
1190*740*770
|
330
|
|
WLDH-0.2
|
0.2
|
0.4-0.8
|
3
|
1550*700*800
|
420
|
|
WLDH-0.3
|
0.3
|
0.4-0.8
|
4
|
2030*630*980
|
720
|
|
WLDH-0.5
|
0.5
|
0.4-0.8
|
7.5
|
2320*730*1130
|
980
|
|
WLDH-1
|
1
|
0.4-0.8
|
11
|
2800*920*1320
|
1700
|
|
WLDH-1.5
|
1.5
|
0.4-0.8
|
11
|
3180*1020*1550
|
1800
|
|
WLDH-2
|
2
|
0.4-0.8
|
15
|
3310*1120*1640
|
2100
|
|
WLDH-3
|
3
|
0.4-0.8
|
18.5
|
3750*1290*1820
|
3000
|
|
WLDH-4
|
4
|
0.4-0.8
|
22
|
4220*1400*1990
|
3980
|
|
WLDH-5
|
5
|
0.4-0.8
|
22
|
4220*1500*2100
|
4620
|
|
WLDH-6
|
6
|
0.4-0.8
|
30
|
4700*1610*2260
|
6180
|
|
WLDH-8
|
8
|
0.4-0.8
|
37
|
4420*2150*2470
|
8200
|
|
WLDH-10
|
10
|
0.4-0.8
|
45
|
5520*2960*2720
|
8920
|
|
WLDH-12
|
12
|
0.4-0.8
|
45
|
5720*3010*2840
|
9520
|
|
WLDH-15
|
15
|
0.4-0.8
|
55
|
5840*3540*2940
|
9950
|

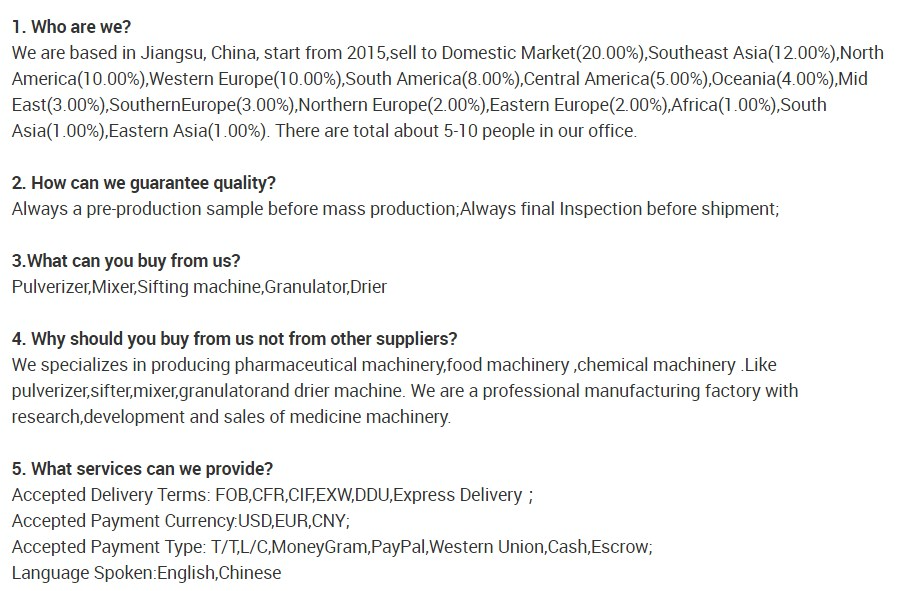

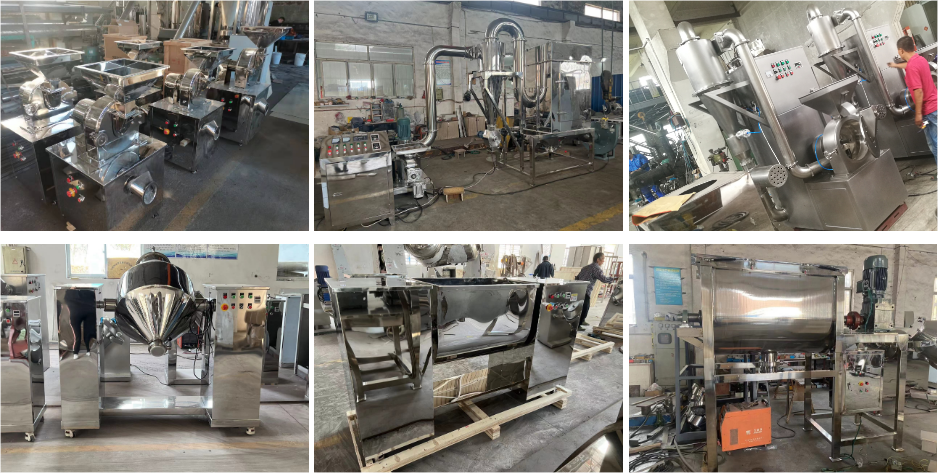

COMPANY INFORMATION
LOGISTICS DELIVERY
