The VI mode mixer machine uses hand-feed and discharge valves closed disc structure, implementing dust-free operation. During the mixing, the materials are without compression and strong friction, so material particles can be maintained intact. The mixing tube is made of stainless steel, making no pollution to the mixing materials. In addition, the blending machine is also equipped with a timing device. You can control the material mixing time.
The cylinder rotation of this industrial blending machine is driven by sector-led slowdown. The mixing is achieved by the asymmetrical movement of the two mixing cylinders of different lengths. When the mixing machine is running, to the combination of the materials from decomposition, a lateral force is produced to promote the horizontal exchange of materials due to potential differences. And when the decomposition of the materials from combination, another lateral force is produced to promote the horizontal exchange of the materials again, due to the different material planes. About 25% of the materials flow from one cylinder to another during one revolution of the cylinder. At the same time, the rotary of the cylinder also produces radial flow of material. The materials are mixed of high uniform, by the alternative movement of horizontal and radial decomposition and combination.
TECHNICAL DATA
MODEL
MODEL 180
MODEL 300
MODEL 500
MODEL 1000
Capacity（kg/time)
60
80
130
240
Total volume （m3）
0.18
0.3
0.5
1
Blending time （min)
4-8
6-10
6-10
6-10
Motor power（kw）
1.1× 1.1
1.1× 1.5
2.2× 2.2
3× 4
Cylinder speed（r/min）
15
15
12
12
Agitating speed（r/min）
500
500
500
500
Overall size （L×W×H）（mm）
1730×650×1700
1845×960×1850
2500×1350×2450
2800×1350×2700
Weight （kg）
320
480
620
1100

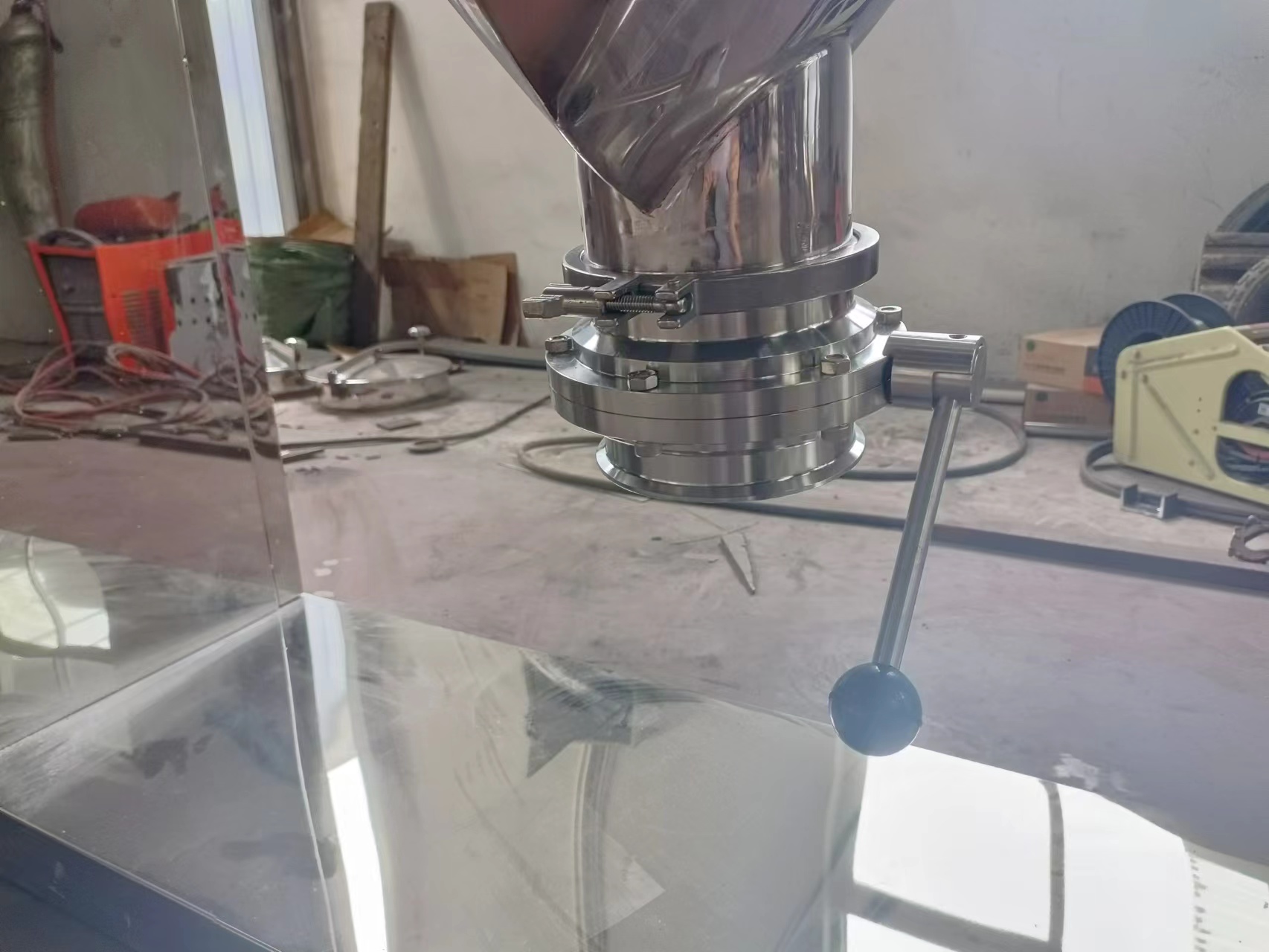

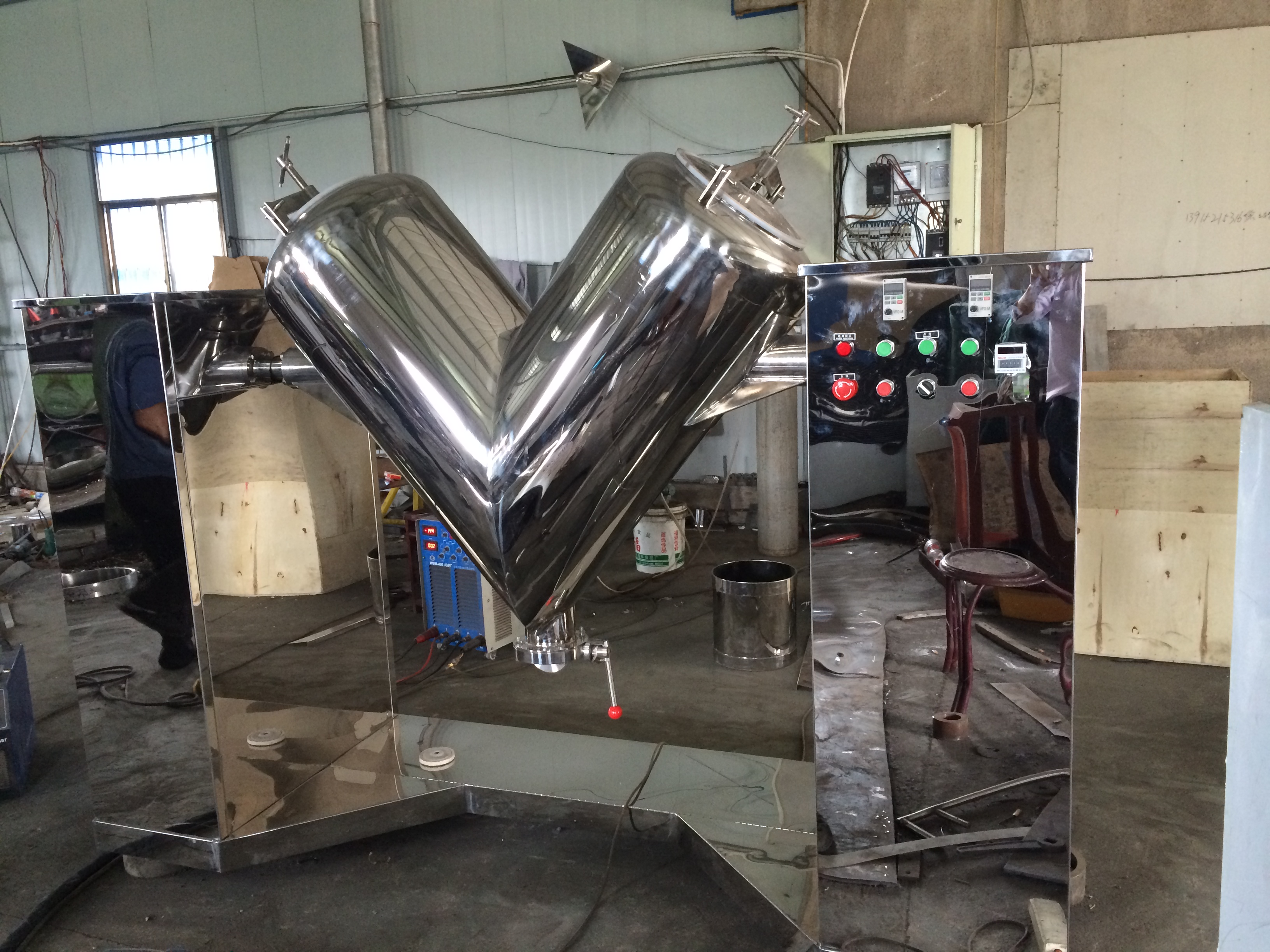

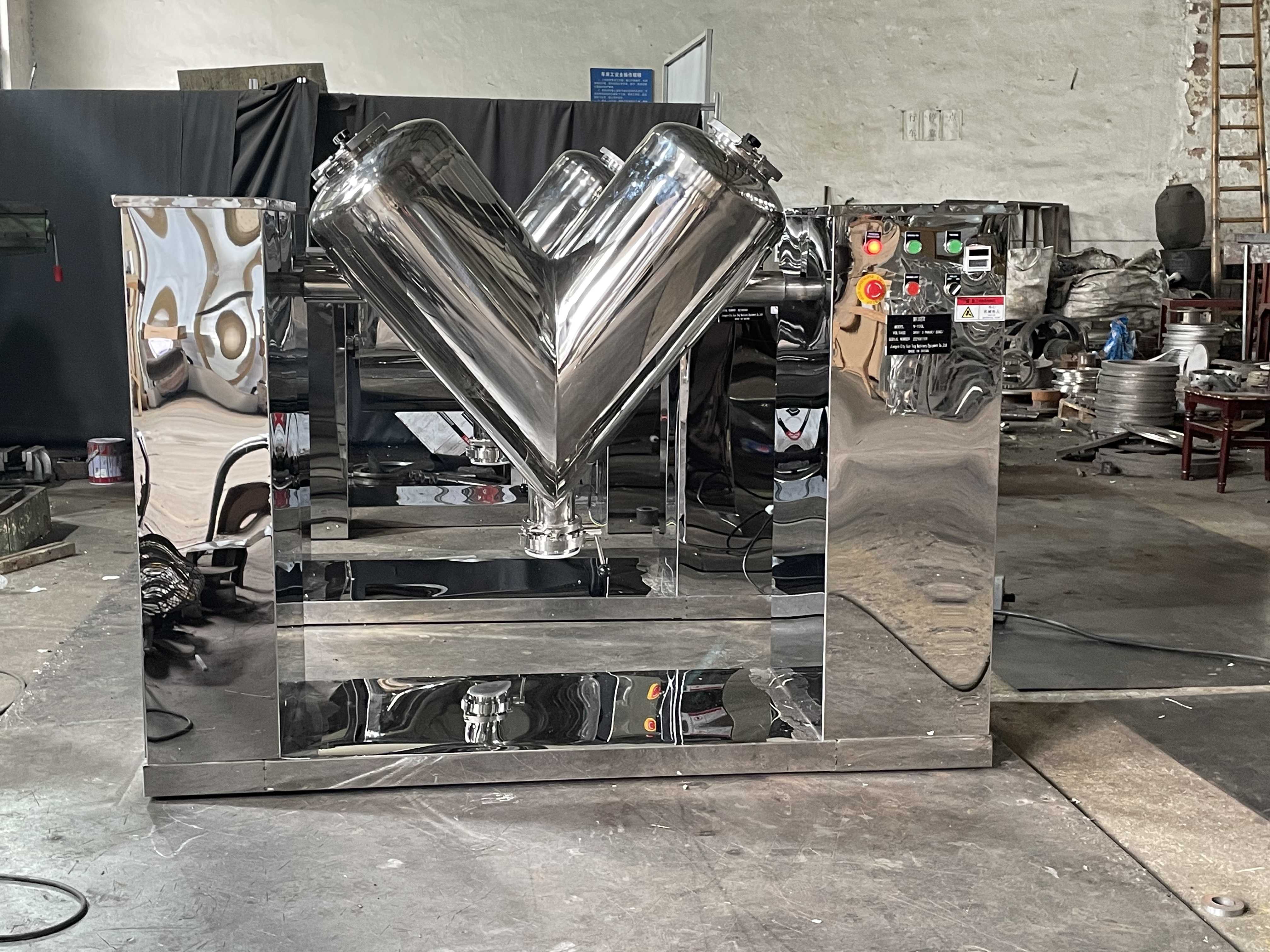

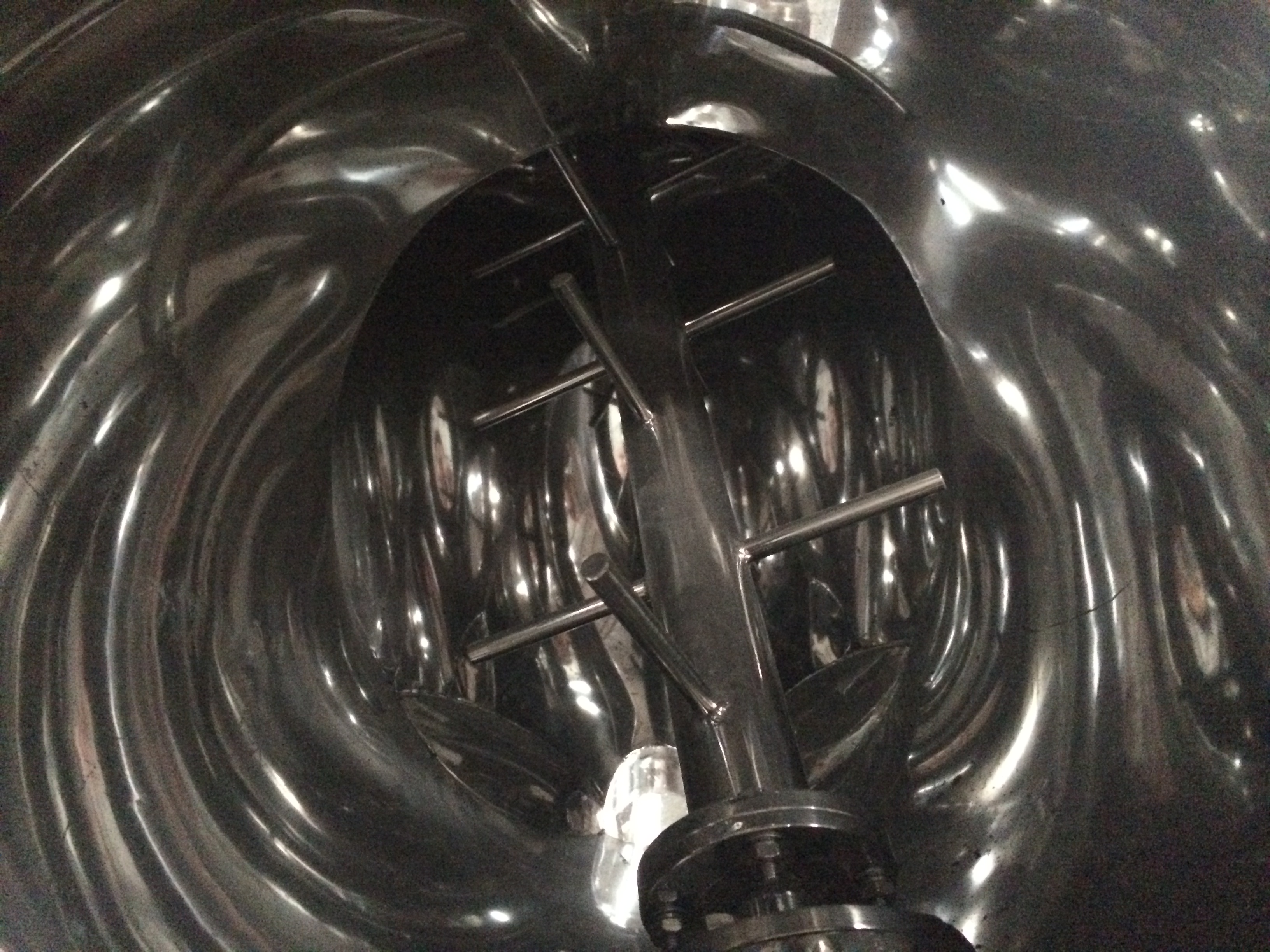

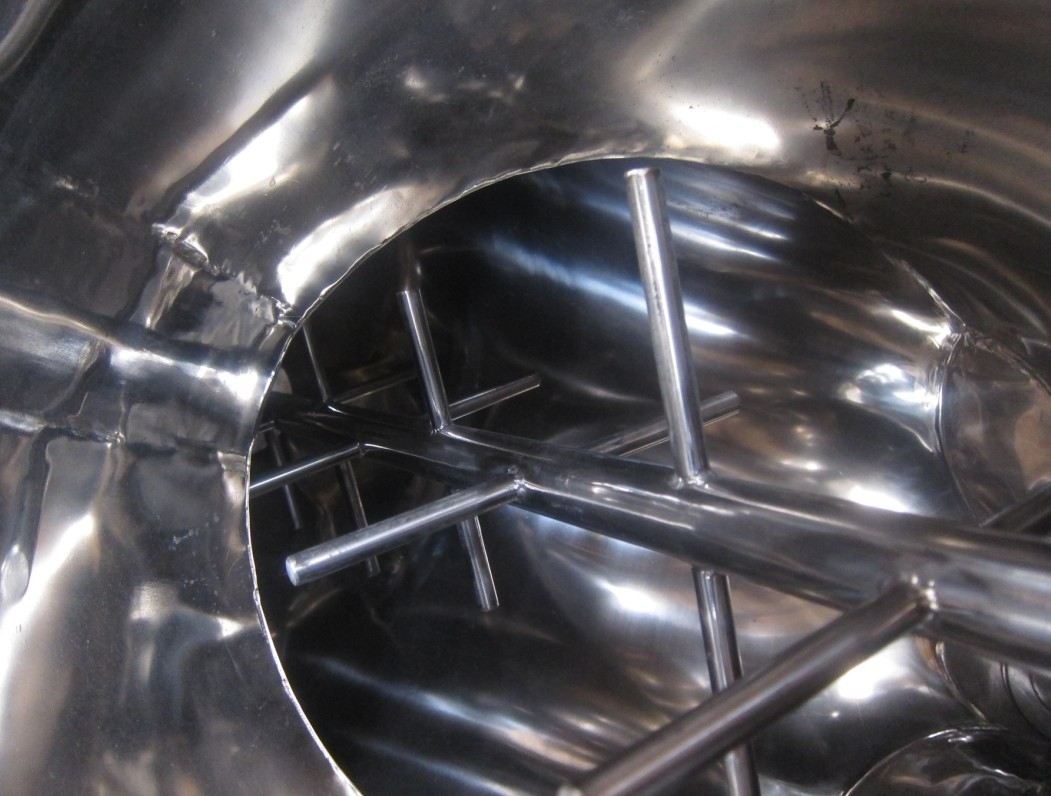

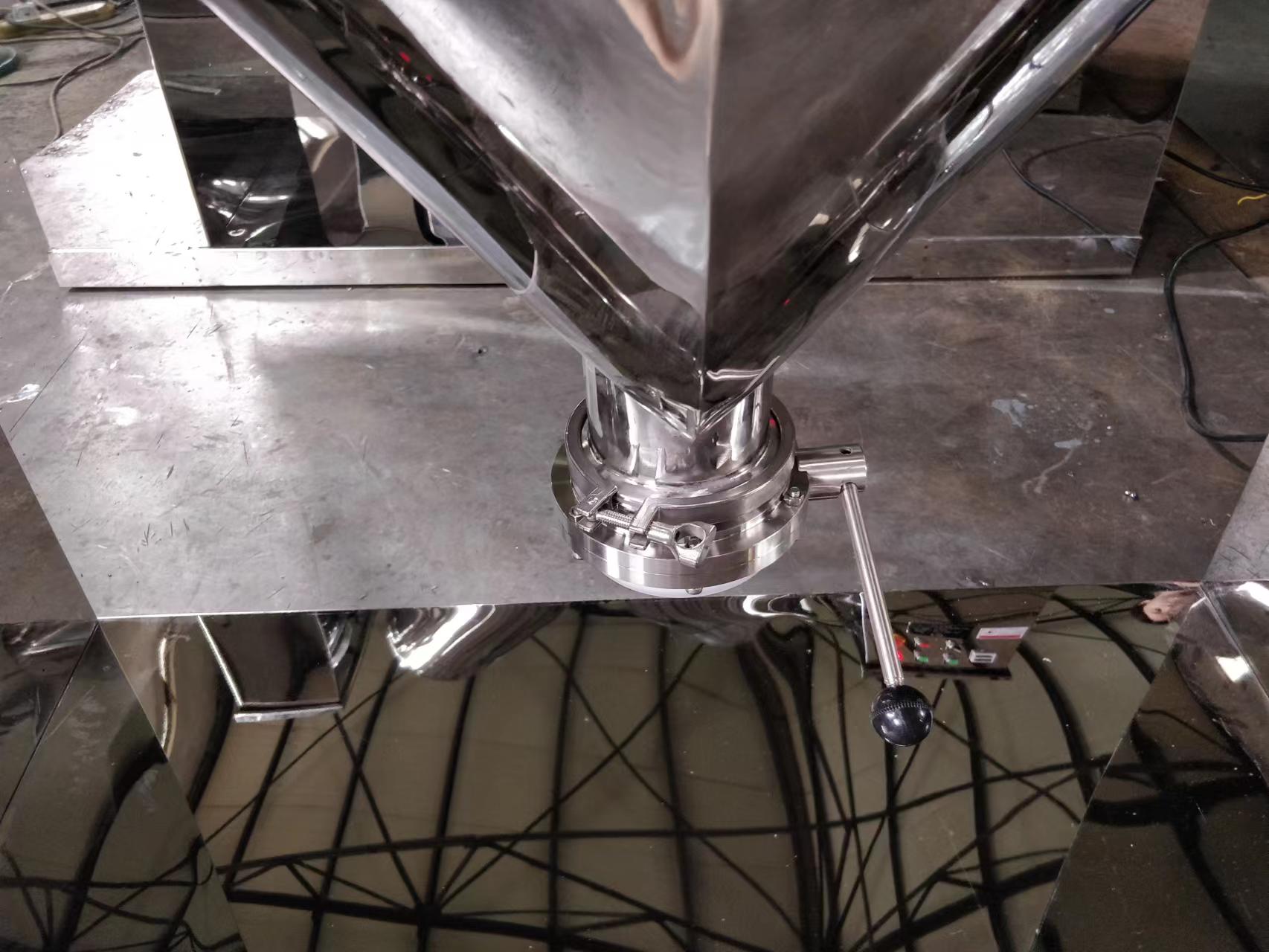

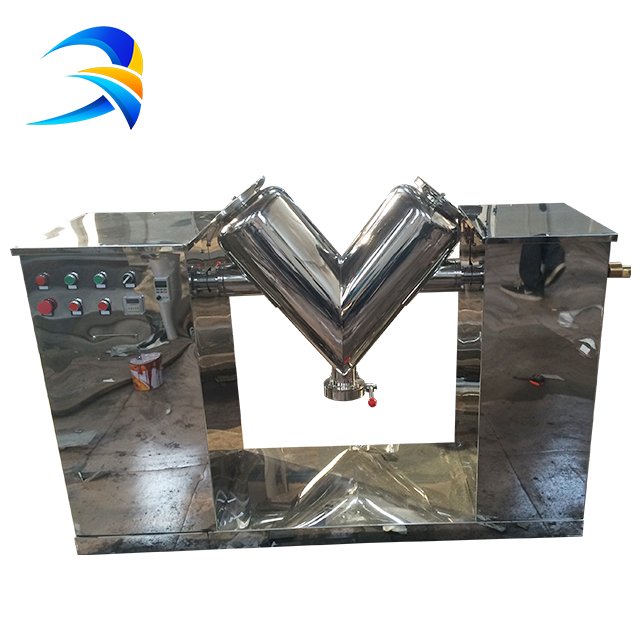

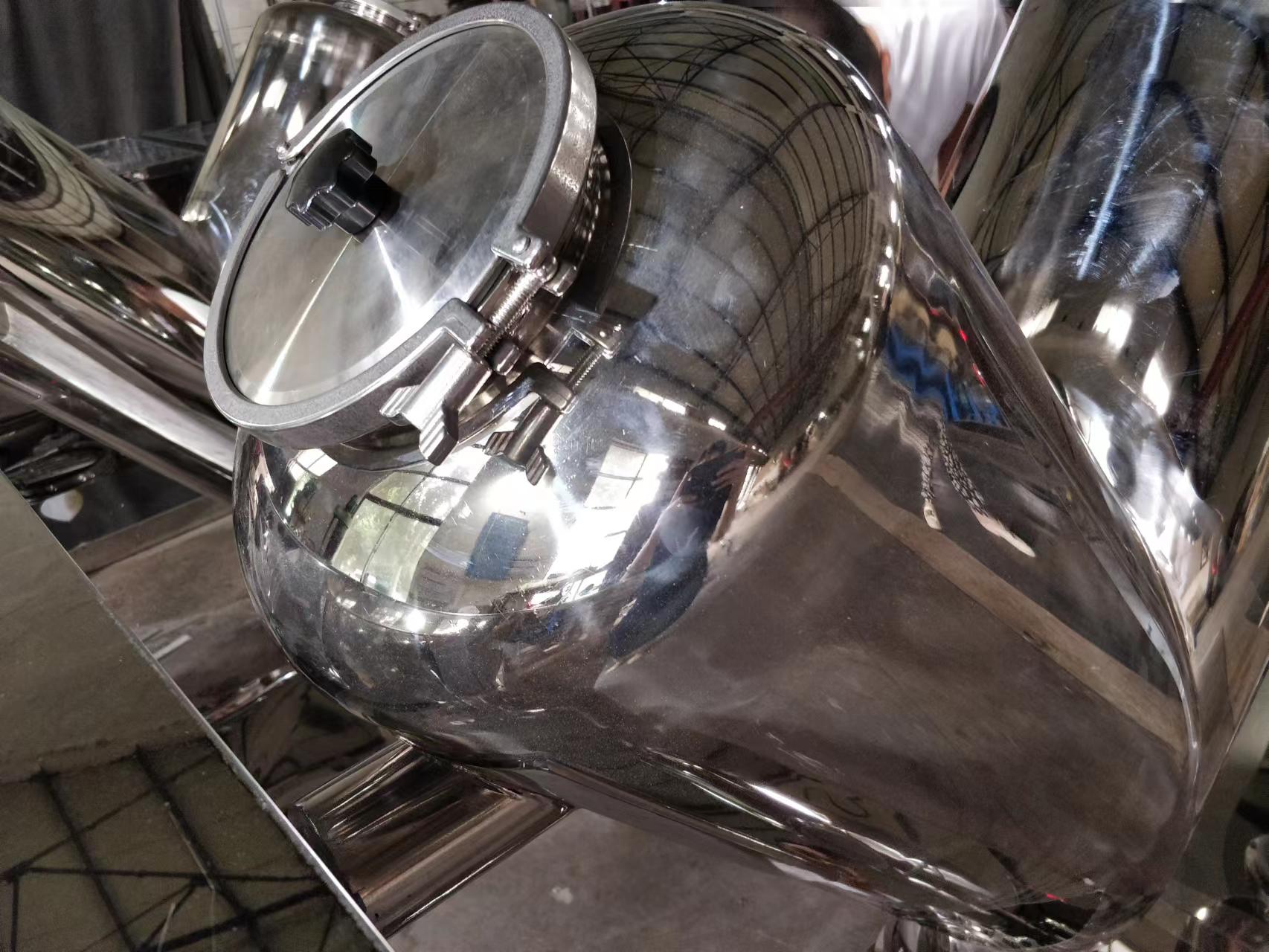

DETAILS DISPLAY
