Main Application

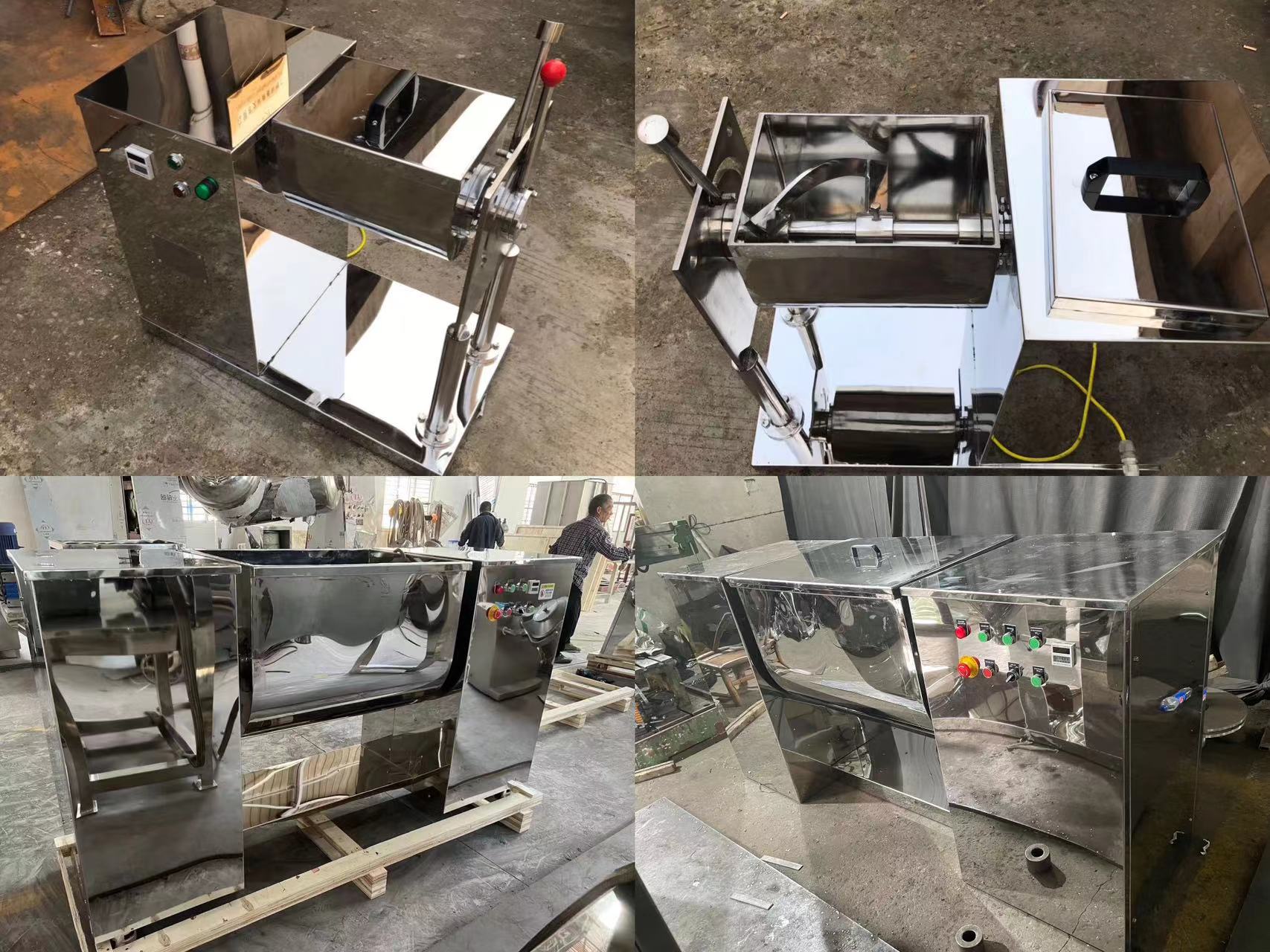

This trough type mixer machine is used to mix the different powder material. Making used of blades to rotate in material trough, it can mix the different materials evenly and uniformly. The reverse operation of material trough and blades makes the materials mixing more evenly and uniformly. This mixing machine is also suitable for mixing different mainly complementing the material such industrial departments as chemical, food industry, etc. It is most suitable for mixing semi-solidly, solution or gluing and spending big material.
Feature
CH type blending machine agitating paddle is rotated, through mechanical driving, which pushes the material turn repeatedly and mix uniformly. Operate with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration., thus improving the mix quality of each batch of material and realizing the high homegeneous mixing.
TECHNICAL DATA
|
Model
|
CH-5
|
CH-10
|
CH-20
|
|
Volume(L)
|
5
|
10
|
20
|
|
Mixing speed(r/min)
|
24
|
24
|
24
|
|
Inclined angle(° )
|
105
|
105
|
105
|
|
Mixing motor(KW)
|
0.2
|
0.25
|
0.37
|
|
Dumping motor
|
Manval
|
Manval
|
Manval
|
|
Over size (mm)
|
500*200*400
|
570*230*420
|
680*380*550
|
|
Weight(kg)
|
40
|
45
|
65
|
|
MODEL
|
CH-50
|
CH-100
|
CH-150
|
CH-200
|
CH-300
|
|
Paddle shape
|
S double paddle
|
S single paddle
|
S single paddle
|
S single paddle
|
S single paddle
|
|
Working volume (L)
|
100
|
100
|
150
|
200
|
300
|
|
Mixing speed (r/min)
|
24
|
24
|
24
|
24
|
24
|
|
Stir angle ( ° )
|
< 105
|
< 105
|
< 105
|
< 105
|
< 105
|
|
Mixing power (KW)
|
2.2
|
2.2
|
3
|
4
|
5.5
|
|
Dumping power (KW)
|
0.55
|
0.55
|
0.55
|
0.75
|
1.1
|
|
Weight (kg)
|
350
|
350
|
410
|
450
|
520
|
|
Overall size L× W× H (mm)
|
1400× 580 × 1000
|
1400× 580 × 1000
|
1600× 600 × 1150
|
1700× 650 × 1200
|
1800× 700 × 1250
|
If you are interested in the product, contact 2bvideo.com for more information for more information
