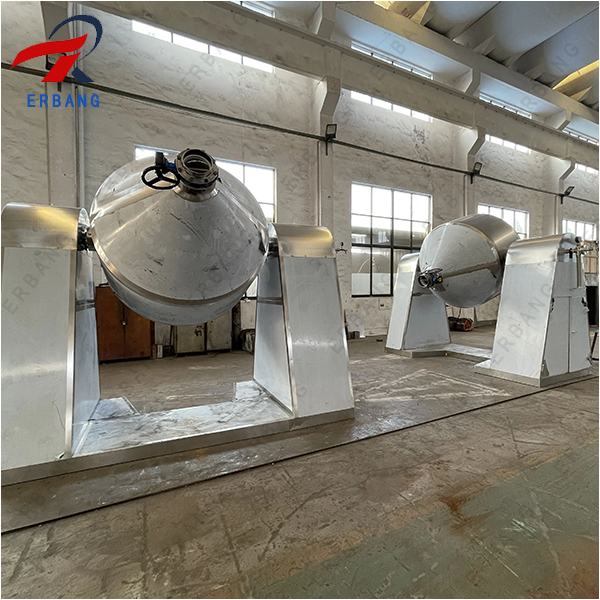

Bronopol Vacuum Dryer
Product Description
Hot medium is inlet jacket for drying, Heat exchange id done by the inner wall contacts with damp material. After the material absorbs heat, water is evaporated. The evaporated moisture and other gas is exhausted from vacuum exhaust pipe by vacuum pump. In the tank it is vacuum state and the rotary of tank makes the material overturn continuously, so the drying speed is fast and drying intensity is increased, and can achieve the purpose of uniform drying. Bronopol Vacuum Dryer (Bronopol Vacuum Drier, Bronopol Vacuum Drying Machine) is a new style dryer that combines mixing and drying together. It can be used together with condenser and vacuum pump(If don`t need recover solvent, condenser is not needed).
Main Features:
1. Bronopol Vacuum Dryer is mainly suitable for the following materials to be dried in pharmaceutical, foodstuff and others industries.
2. The container of the Bronopol Vacuum Drier rotates continuously so as to renew surfaces of heating materials.
3. Bronopol Vacuum Dryer adopts Indirect heating approach and unpolluted material.
4. Rotary Vacuum Dryer will be increased by over two times in heat efficiency compared with the general one.
5. Low temperature, Rapid drying and Mixed powder.
6. The material in the Vacuum Dryer is heated by steam or hot water.
Bronopol Vacuum Dryer Application
This Vacuum Dryer can be widely used for drying or mixing powder or granule materials in pharmaceutical, chemical, foodstuff industries etc.
The main technical datum of the vacuum drying equipment is for reference. We also produce and design product as per customers' requirement.
| Type of the vacuum dryer | SZG-0.1 | SZG-0.3 | SZG-0.5 | SZG-1 | SZG-2 | SZG-3 | SZG-4 | SZG-5 |
| Volume(L) | 100 | 300 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| Material feed factor | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Max material feed weight(kg) | 50 | 120 | 200 | 400 | 800 | 1200 | 1600 | 2000 |
| Vacuum of the drying machine | Dg50 | Dg50 | Dg50 | Dg50 | Dg70 | Dg100 | Dg100 | Dg100 |
| Condensed water in the machine | G3/4" | G3/4" | G3/4 | G1" | G1" | G1" | G1 1/2" | G1 1/2" |
| Motor power(kw) for drying | 1.1 | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 11 | 15 |
| Total weight(kg) | 650 | 1200 | 1450 | 2800 | 3580 | 5950 | 6450 | 7300 |
