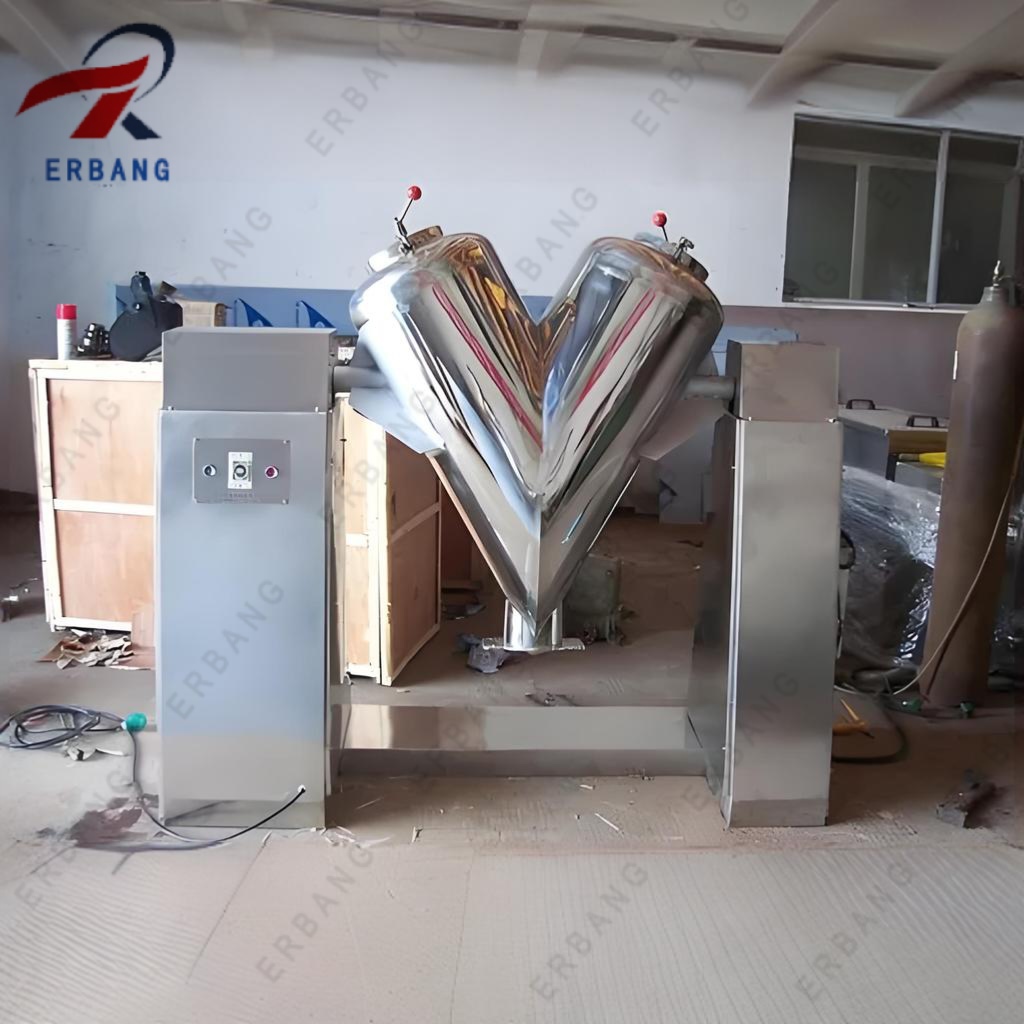

Instant Tea Powder Mixing Equipment
Instant Tea Mixer Specialities:
1. VH Series Dry Powder Mixer is V Type Powder Mixing Equipment becuase it can mix the tea powder so also named as Instant Tea Mixer , Instant Tea Powder Mixer
2.The whole machine features novel design, compact structure, and good appearance, the evenness of mixing reaches 99% , and the volume charge factor reaches 0.8.
3. Smooth running, reliable performance, easy operation.
Product Introduction
V type high efficient asymmetric mixer, it is suitable for chemical, food, medicine, fodder, ceramics, metallurgy and other industries or granular material. The machine`s structure is reasonable, simple, closed operation, feeding and discharging material conveniently, (artificial or vacuum charging) barrel is made of stainless steel material, easy to clean, and can according to user requirements supporting forced mixer, for thin powder, block, containing certain moisture mixed material.
Principle and structure
There is one set of motor and reducer at one end of the spiral mixer machine. The motor and reduce are connected by belts.
When the power on, the motor start work to drive reducer work ,The reducer rotate with the coupling to make the barrel rotary continuously, drive material inside the barrel runs up, down, left, right. This will achieve intensive mixing
Instant Tea Mixing Equipment is used for mixing of dry granulate material in pharmaceutical, food-stuff, chemical and other industries. The Main technical datum is for reference. We also produce and design product as per customers' requirement:
| Model of mixing machine | Capacity(m2) | Loading factor | Loading capacity(L) | Rotating speed(r/min) | Motor power(Kw) | Total weight(kg) | Model of vacuum pump |
| VH-0.1 | 0.1 | 0.4 | 40 | 15 | 1.1 | 180 | W2 |
| VH-0.3 | 0.3 | 0.4 | 120 | 15 | 1.5 | 350 | W2 |
| VH-0.5 | 0.5 | 0.4 | 200 | 15 | 1.5 | 550 | SK-1.5 |
| VH-1.0 | 1.0 | 0.4 | 400 | 12 | 3.0 | 1000 | SK-3 |
| VH--1.5 | 1.5 | 0.4 | 600 | 10 | 4.0 | 1100 | SK-3 |
| VH-2.0 | 2.0 | 0.4 | 800 | 10 | 5.5 | 1500 | SK-3 |
| VH-2.5 | 2.5 | 0.4 | 1000 | 8 | 7.5 | 1700 | SK-6 |
| VH-3.0 | 3.0 | 0.4 | 1200 | 6 | 7.5 | 1800 | SK-9 |
If you are interested in the product, contact 2bvideo.com for more information for more information
