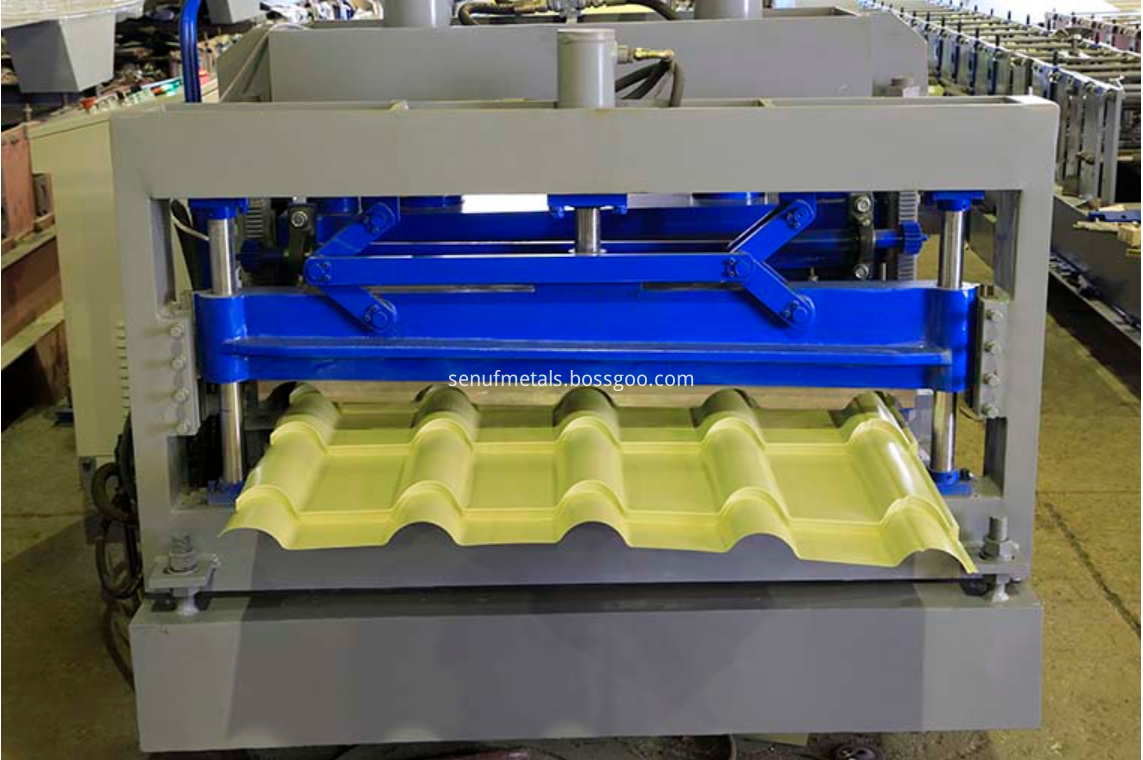

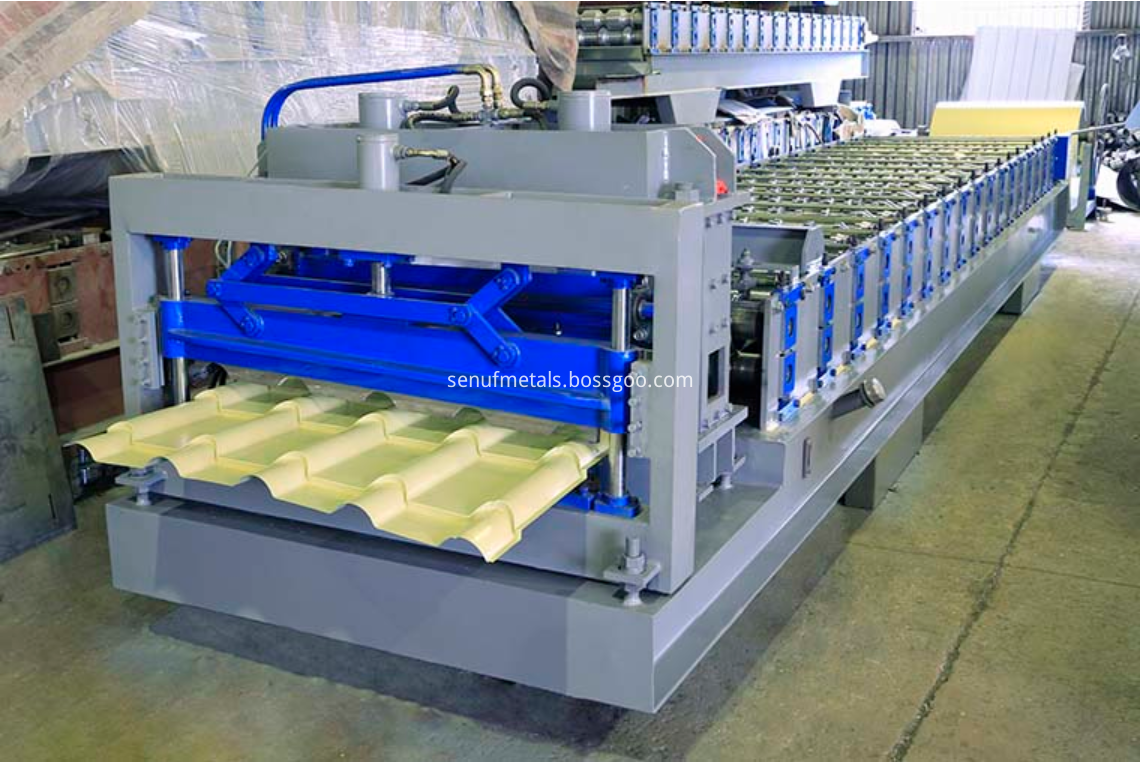

1010 aluminium glazed roofing tile roll forming machine
1. Good quality: We have a professional designer and experienced engineer team. The raw material and accessories we use are good.
2. Good service: we provide the technical support for whole life of our machines.
3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4. Easy operation:All machine cotrolling by PLC computer controlling systerm.
5. Elegant apperance:Protect the machine from rust and the painted colour can be customized
6. Reasonable price:We offer the best price in our industry.

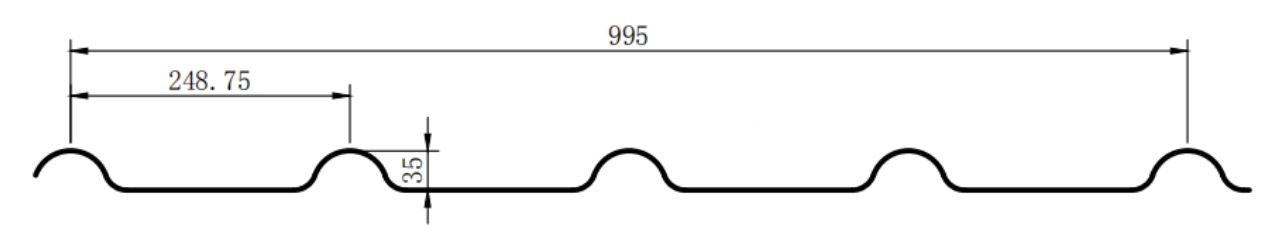

Detailed images of 35-995 Profile Glazed Tile Forming Machine
1. 35-995 Profile Glazed Tile Forming Machine pre-cutter
with feeding guide

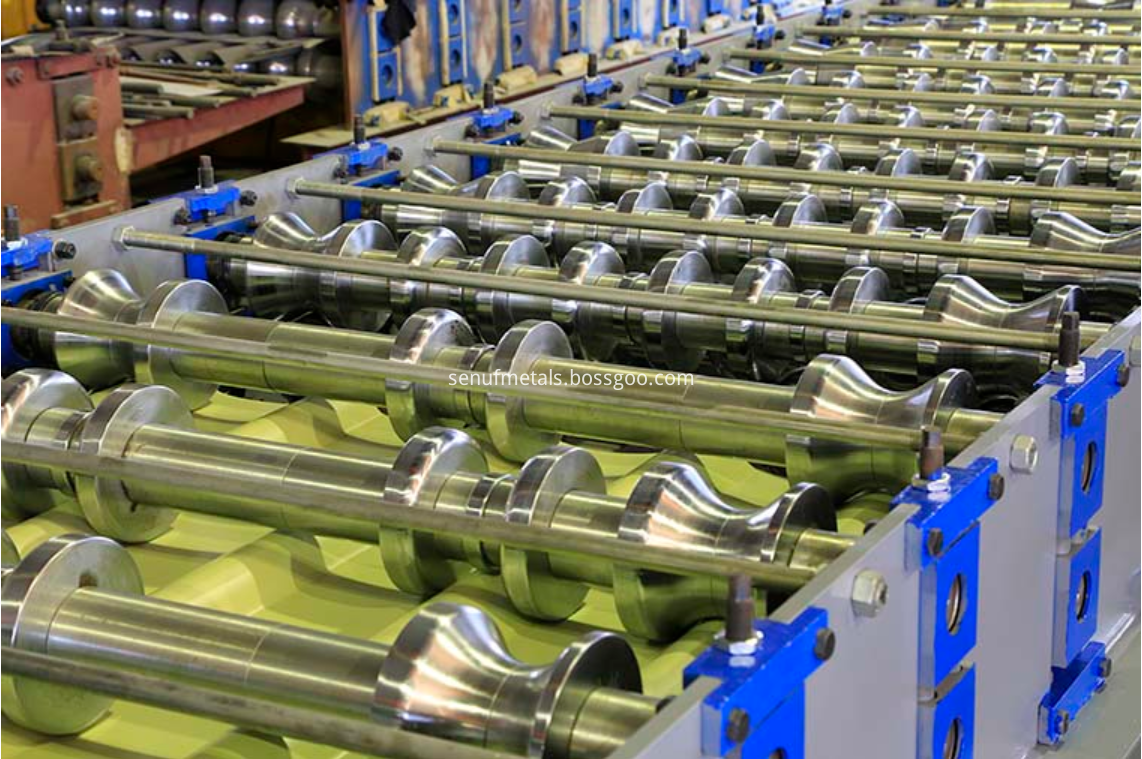

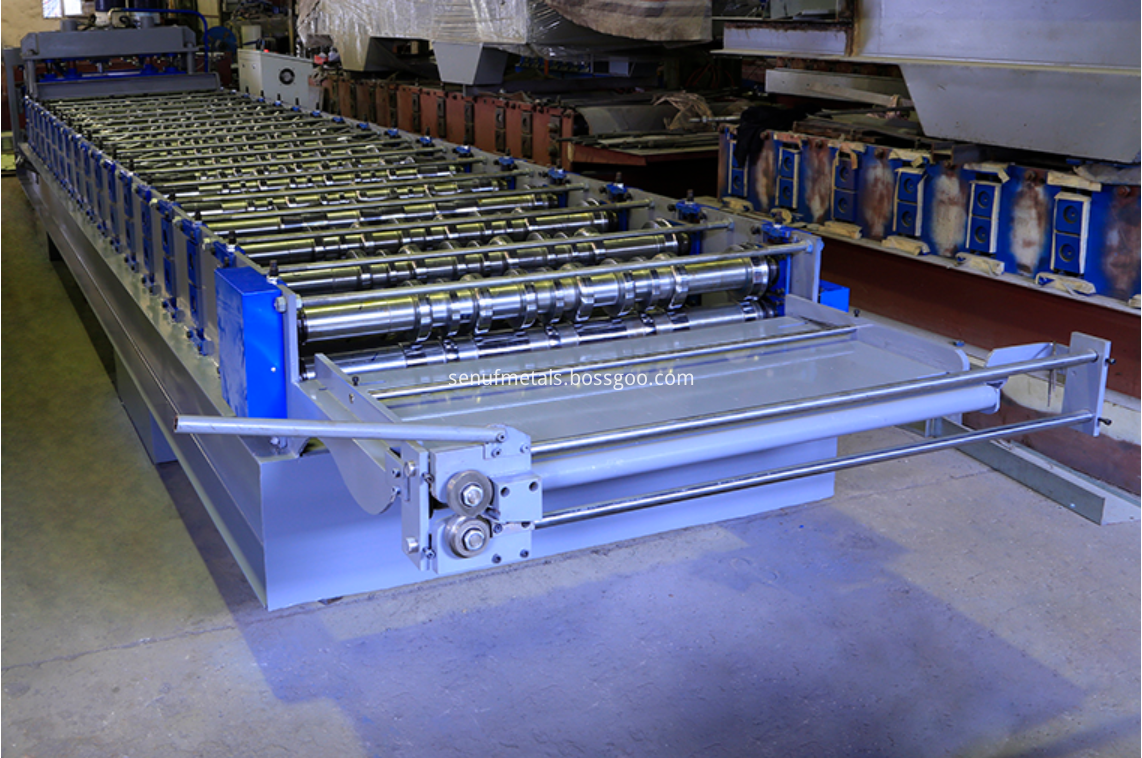

2. 35-995 Profile Glazed Tile Forming Machine rollers
Rollers manfactured made by high quality 45# steel, CNC lathes, Heat Treatment,
with black treatment or Hard-Chrome Coating for options,
Body frame made by 350# H type steel by welding

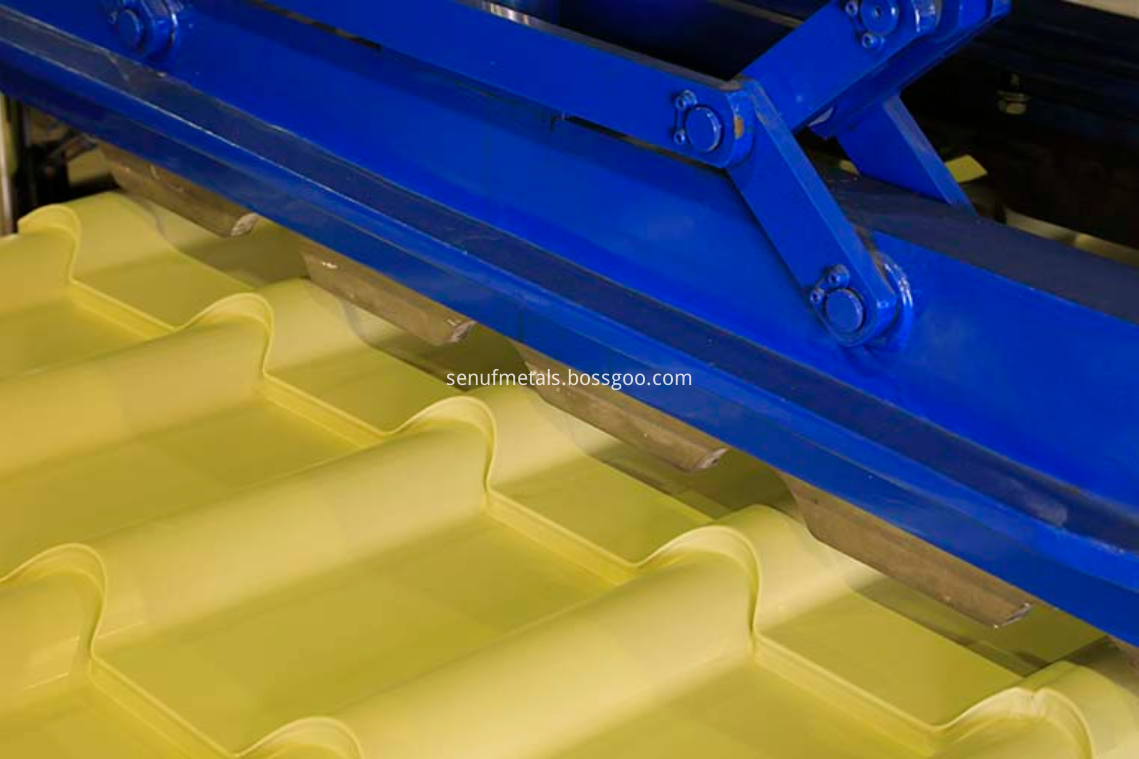

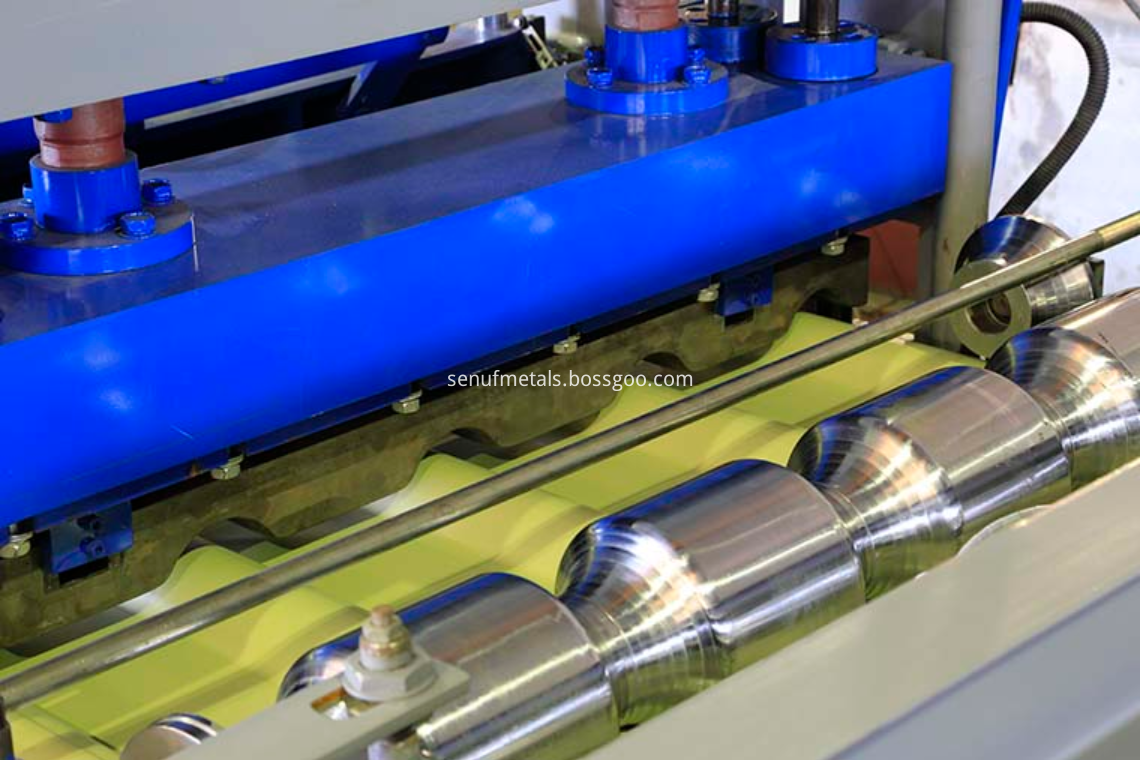

3. 35-995 Glazed Tile Forming Machine punching mold
4. 35-995 Glazed Tile Forming Machine post cutter
Made by high quality mold steel Cr12 with eat treatment,
Cutter frame made by high quality 20mm steel plate by welding
Hydraulic motor: 5.5kw, Hydraulic pressure range: 0-16Mpa

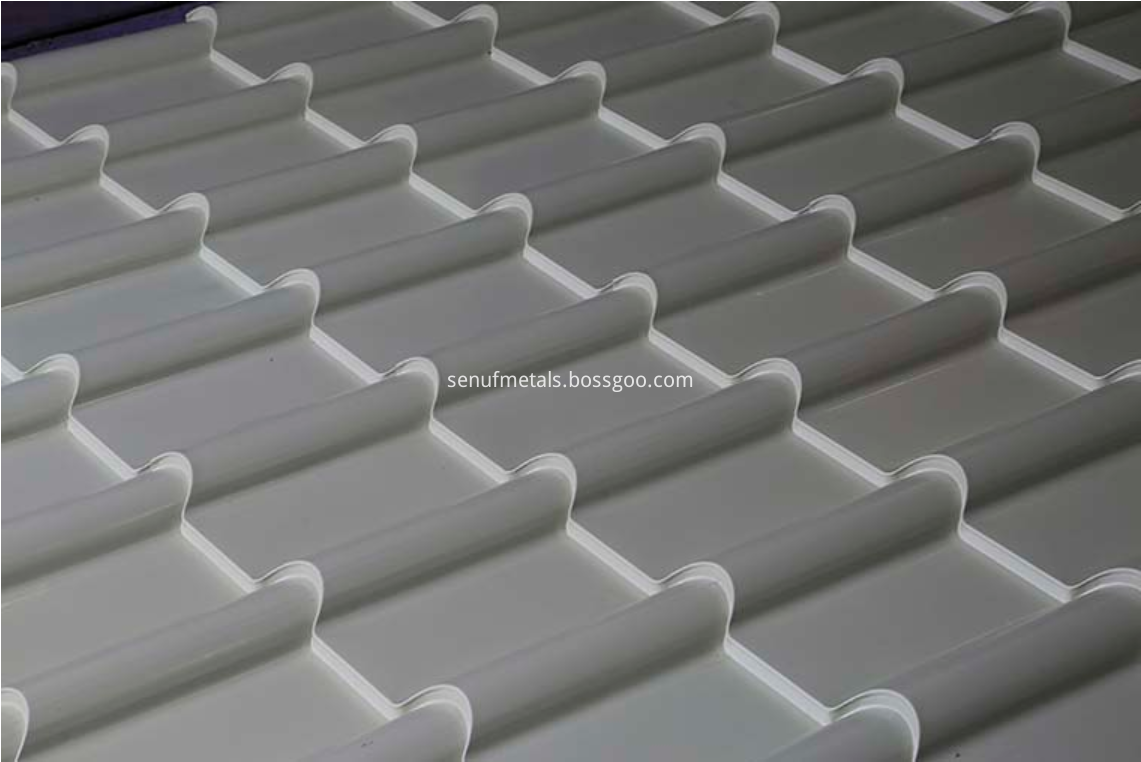

5. 35-995 Glazed Tile Forming Machine products sample

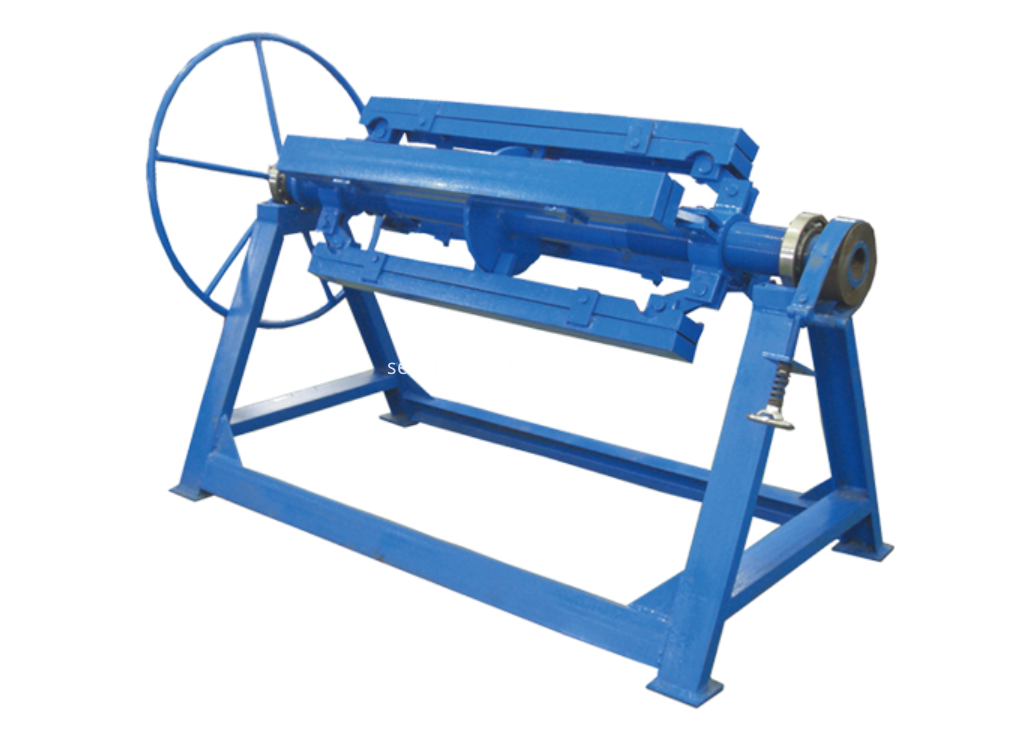

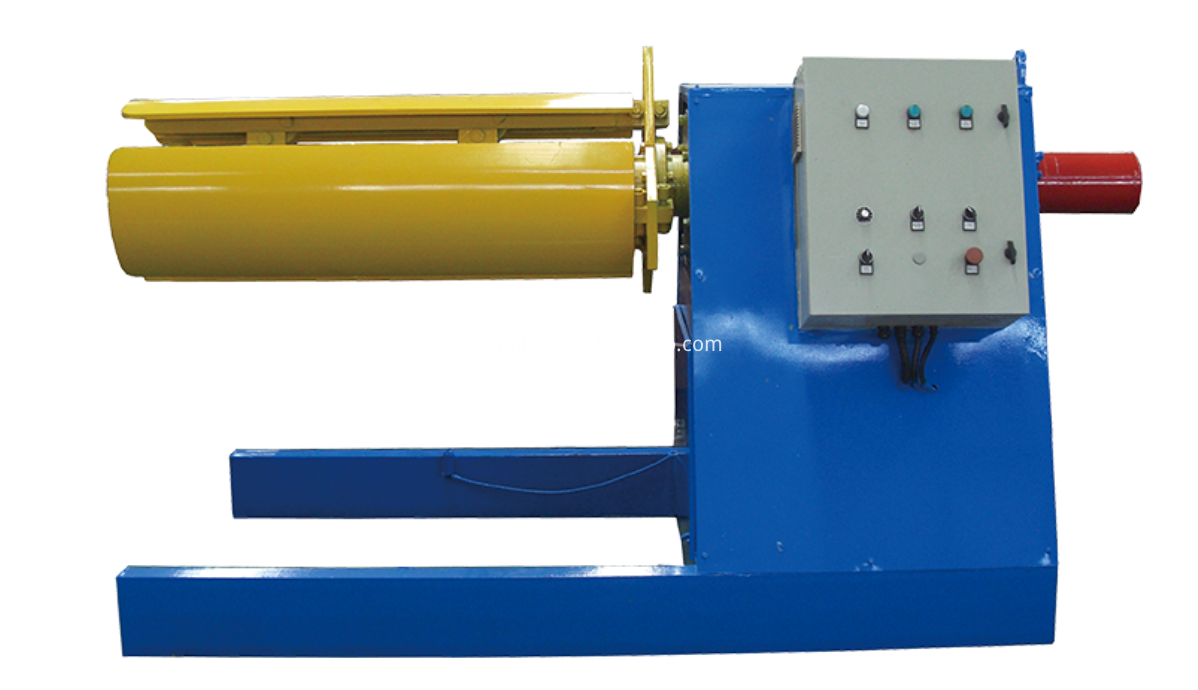

6. 35-995 Glazed Tile Forming Machine decoiler
Manual decoiler: one set
Un-powered, manually control steel coil inner bore shrinkage and stop
Max feeding width: 1200mm, coil ID range 508mm±30mm
Capacity: 5-9 tons

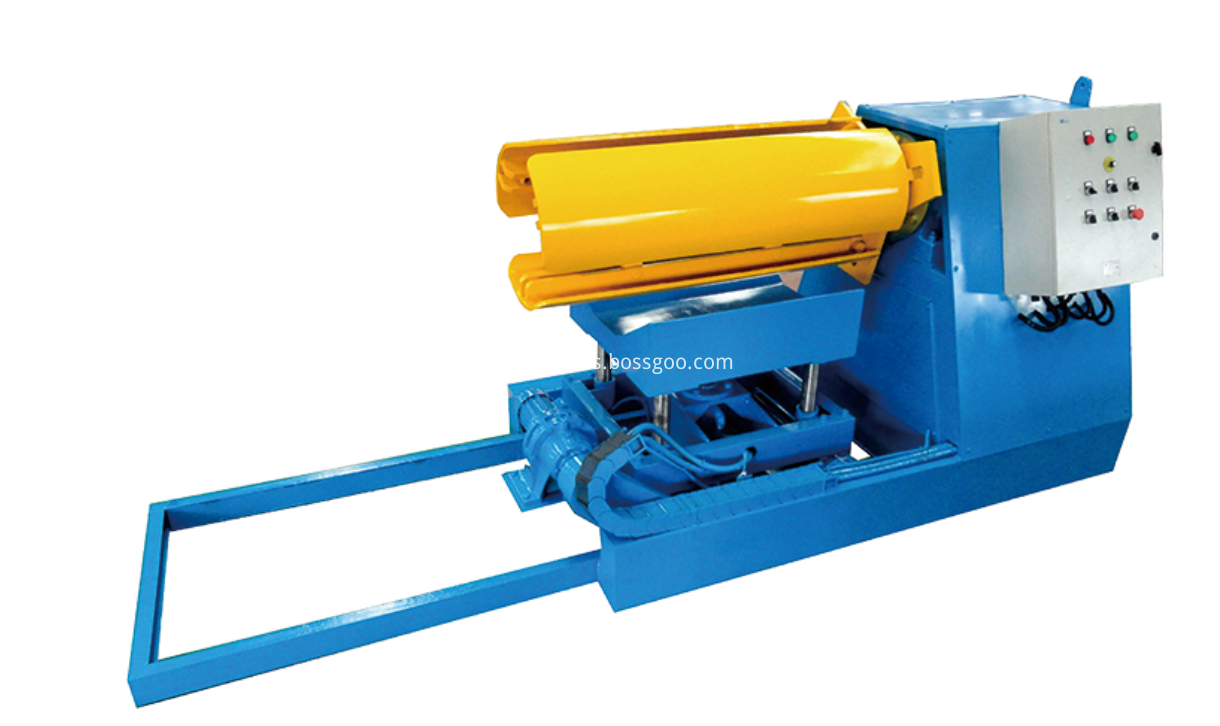

with 6 ton hydraulic decoiler for option
Other details of 35-995 Glazed Tile Forming Machine
Suitable for material with thickness 0.3-1.0mm
Shafts manufactured by 45#, Main shaft diameter 90/75mm, precision machined,
Motor driving, gear chain transmisson, 20 steps to form,
Main motor: 15kw, frequency speed control, forming speed approx 12-15m/min
