Product Features
◆ Large color touch
screen with intuitive interface provides an excellent intuition operational
experience
◆ 3-phase input
voltage meets worldwide power distribution regulation, AC mains
187~253Vac/340~460Vac for optional
◆ Constant voltage
(CV), constant current (CC) and constant power (CP) operation mode, CC or CV
working priority setting
◆ Adjustable voltage/current slew rate
◆ DDS Arbitrary
function generator*
◆ Solar panel I-V
curve simulation function*
◆ Smart 3-stage
charging algorithm simulation*
◆ Battery simulator
function*
◆ Continuous source
& sink function, with APM DC E-load to expand loading capability (optional)
◆ List/ Step mode
programming
◆ TTL/Analog control
and monitoring
◆ Built-in standard
automotive power network voltage curves*
◆ Full protection:
OVP, OCP, OPP and OTP protection
◆ Supports
master-slave mode, paralleling up to 16 units
◆ Supports SCPI commands,
provides web GUI function
* Only professional
version units support these functions
Functions and Advantages

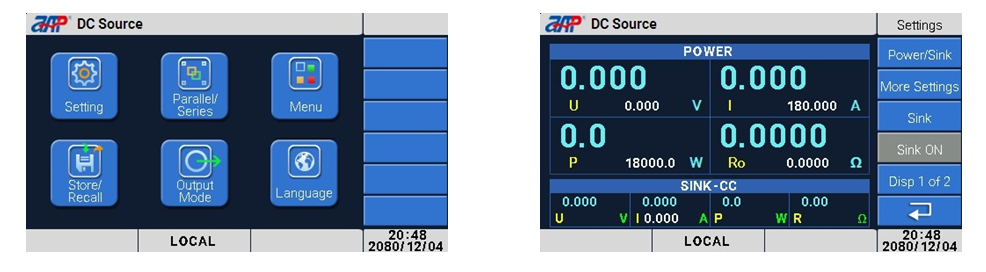

Graphical User Interface
The large color touch screen provides simple and fast operation for customers, real-time update of display output data and power status.The actual values are displayed with bigger characters, so they can be read from a large distance.
Wide Input Voltage Range & High Power Density

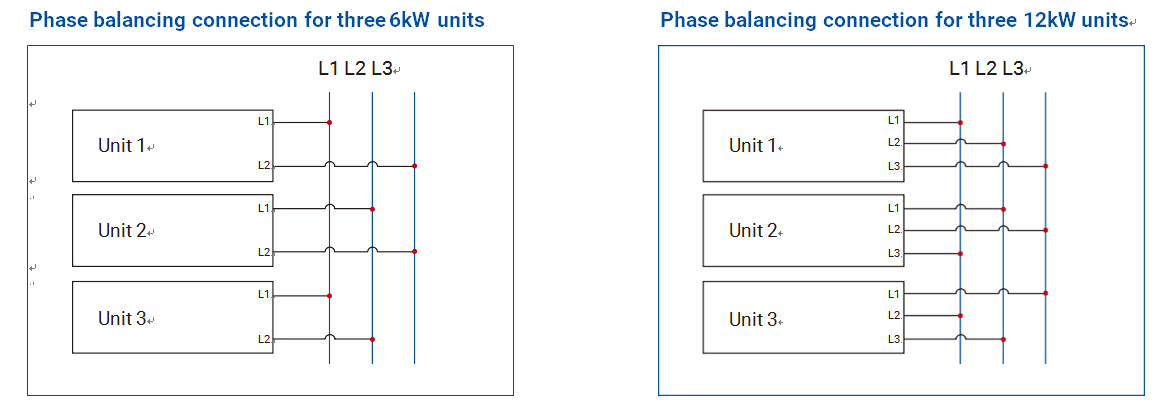

3-phase input voltage range 187~460Vac meets worldwide power distribution regulation. 36kW/6U high density, higher efficiency, lower ripple and fast response make it ideal for test requirements in different periods of different applications. This series power supply can have from one to three internal 6kW power blocks, each of which is connected across a separate phase of the 3-phase AC mains. The following figures illustrate how to install three 6kW units or three 12kW units to obtain a balanced current draw on the 3-phase AC mains.
CC & CV Priority

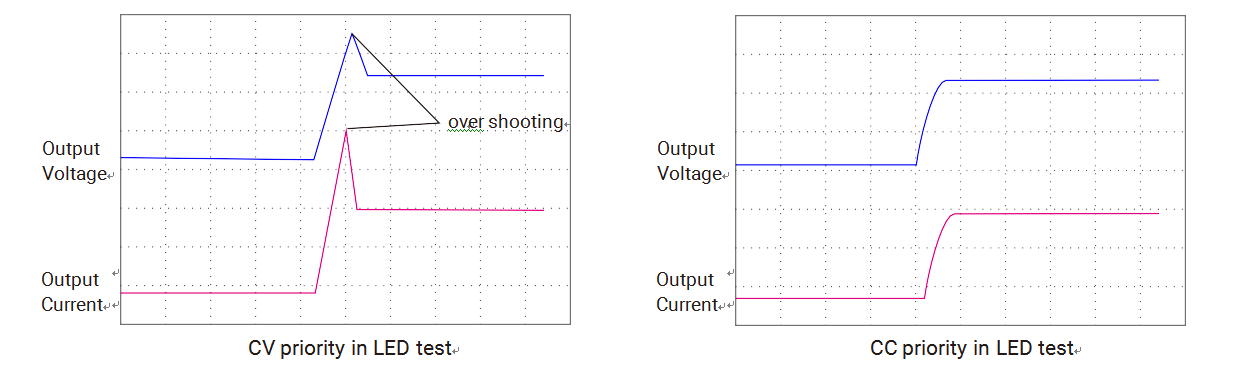

This series power supply provides CC/CV priority function allows the user to select suitable mode correspond to test requirement, let the output be voltage high speed or current no overshoot mode. Below shows an application of CC priority to avoid current overshoot during LED test.

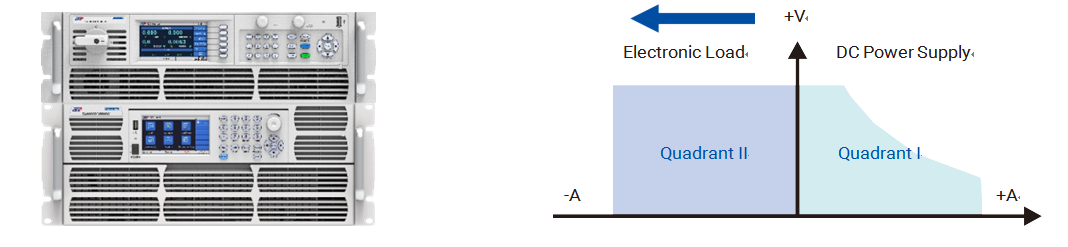

With APM DC E-load To Expand Loading Capability
If a large fast current sinking capability is required, the user can choose APM programmable electric DC loads as well. A power supply can connect and control three DC loads at the same time through CAN communication to realize a rapid response system. Meeting demanding requirements of high power discharging test.
List/Program/Step Mode Programming
This series power supply provides List/Program/Step modes for output waveform programming. Users can edit the voltage/current value & the time of each step in advance and provide the power supply with a trigger signal. Then the preset sequences / waveform will be executed automatically according to the defined files. Sequence mode supports link between multiple files, the user can set the repeat times of each file and the total repeat times of the complete sequence file.
DDS Arbitrary Function Generator
This series power supply includes a true function generator which can generate typical functions as displayed below, convenient for editing or directly recall. Additional to the standard functions, this arbitrary generator is accessible for the creation and execution of complex sets of functions, which is can be used for testing purposes in development and production.
