S.N. Type HM4 Refrigeration Solenoid Valve Coil
This HM4 solenoid coil is popularly used in refrigeration solenoid valves, which is a clip on version coil and can be fitted without use of tools. The standard voltage is 12VDC, 24VDC, 24VAC, 110VAC, 220VAC or 380VAC, the standard power is 13W, 18W, 13VA, 16VA or 18VA, other voltages and powers can be customized as your request, IP65 protection class, Class F insulation.
Hole Size:13.4mm
Height:46.0mm
Width:40mm
Voltage :24VDC, 110VAC, 115VAC, 220VAC, 230VAC
Power:13W, 18W, 13VA, 16VA, 18VA
Connector:DIN43650A
Insulation class:F, H
Protection class:IP65
Application: Refrigeration Solenoid Valve
Technical Data:
|
BRANDO Model
|
BB13446065
|
|
Ref No
|
HM4
|
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC, 380VAC
|
|
Power
|
13W, 18W, 13VA, 16VA, 18VA
|
|
Connector
|
DIN43650A
|
|
Protection Class
|
IP65
|
|
Insulation Class
|
F
|

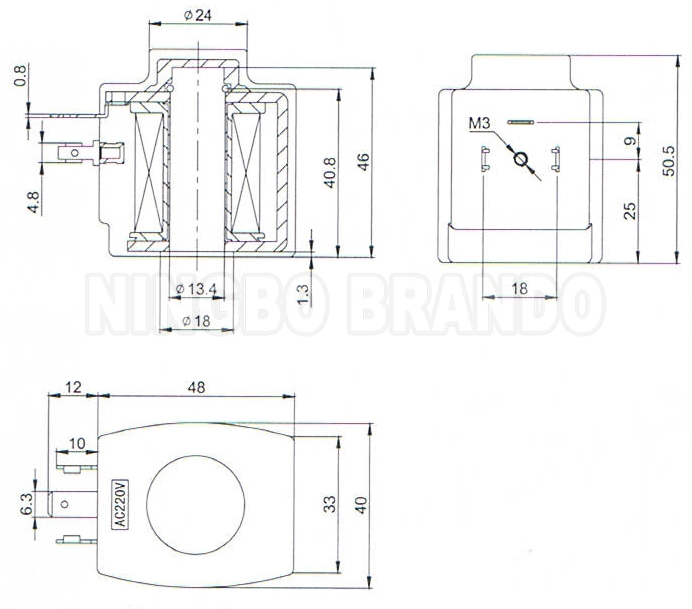

Main Dimension:
