I. Basic Attributes of the Equipment

Equipment name: Servo oil pressure trimming machine
Equipment type: high - performance Edge Trimming Machine
Design positioning: specially designed for high - end industrial packaging products. This design is aimed at meeting the stringent quality and precision requirements of high - end industrial packaging, ensuring that the trimmed products can achieve excellent appearance and dimensional accuracy for better protection and presentation of high - end industrial items.
Main application scenario: used for trimming burrs of shaped pulp semi - finished products. This is crucial in the production process of pulp - based packaging, as removing burrs can improve the overall quality and usability of the final packaging products, making them more suitable for packaging various industrial goods.

II. Core Functions

It provides high - pressure cutting force through a servo motor to quickly and efficiently trim the edges of products, ensuring that the edges of finished products are burr - free and dimensionally accurate. The servo motor’s precise control enables the machine to apply the right amount of force, resulting in clean and accurate cuts, which is essential for maintaining the high - quality standards of industrial packaging products.

III. Applicable Products

Including Wet Press Industrial Packaging Tray, Digital Product Paper Tray, etc. These products often require precise edge trimming to enhance their aesthetic appearance and functionality. For wet press industrial packaging trays, a smooth edge can prevent damage to the packaged items, while for digital product paper trays, accurate edges contribute to a better - fitting and more protective packaging solution.

IV. Equipment Advantages

Servo hydraulic control technology: The equipment adopts servo motor control, which makes the press cutting precision higher, the operation smoother, and the energy consumption significantly reduced; the hydraulic system provides a greater impact force, which can meet the edge cutting demand of various products with complex structures. This combination of servo and hydraulic technology not only improves the quality of the trimming process but also allows for efficient processing of different product geometries.

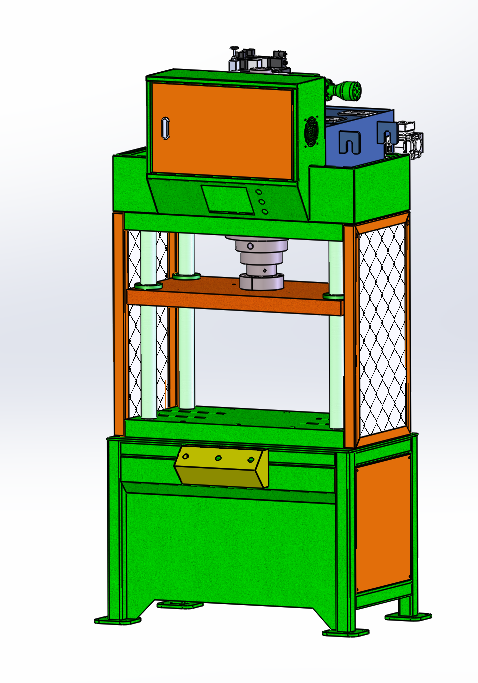

Four - column structure: It ensures the smoothness and accuracy of the mold during press cutting, and improves the consistency of product processing. The four - column design provides a stable framework, enabling the mold to move precisely during the cutting process, thus ensuring that each product is trimmed to the same high - quality standard.
Strong adaptability of molds: Die - cutting molds can be customized according to the shape and dimension requirements of different products, which can be flexibly applied to various product types. This adaptability allows the machine to handle a wide range of industrial packaging products, from small - scale digital product trays to large - sized industrial packaging trays, meeting the diverse needs of different industries.

Installation Method

Site preparation: First, select a flat and stable installation site. The floor should be able to bear the weight of the machine and the forces generated during operation. Ensure that the installation area has sufficient space for the machine’s operation, maintenance, and access to relevant power and hydraulic connections.
Machine placement: Carefully place the servo oil pressure trimming machine on the prepared site. Align the four - column structure to ensure it is perpendicular to the floor. Use leveling tools to adjust the machine’s levelness, which is crucial for the smooth operation of the press - cutting process and the accuracy of product trimming.
Connection of power and hydraulic systems: Connect the power supply according to the machine’s electrical requirements. Ensure that the electrical wiring is properly installed and grounded to prevent electrical hazards. For the hydraulic system, connect the hoses to the appropriate ports on the machine and the hydraulic pump. Check for any leaks in the hydraulic system by conducting a pressure test before starting the machine.
Installation of molds: Install the die - cutting molds according to the product requirements. Make sure the molds are firmly fixed in place to ensure stable operation during the press - cutting process. Adjust the position of the molds if necessary to achieve the desired cutting accuracy.
Testing and commissioning: After the installation is complete, conduct a series of tests. Start the servo motor and hydraulic system to check their normal operation. Test the press - cutting function with sample products to ensure that the trimming quality meets the requirements. Adjust the relevant parameters such as cutting force, speed, and mold position if necessary until the machine operates stably and produces high - quality trimmed products.

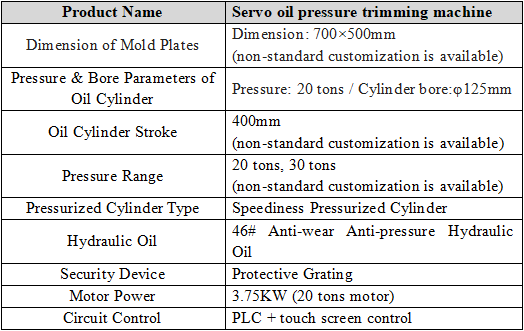

Parameter table of servo oil pressure trimming machine
