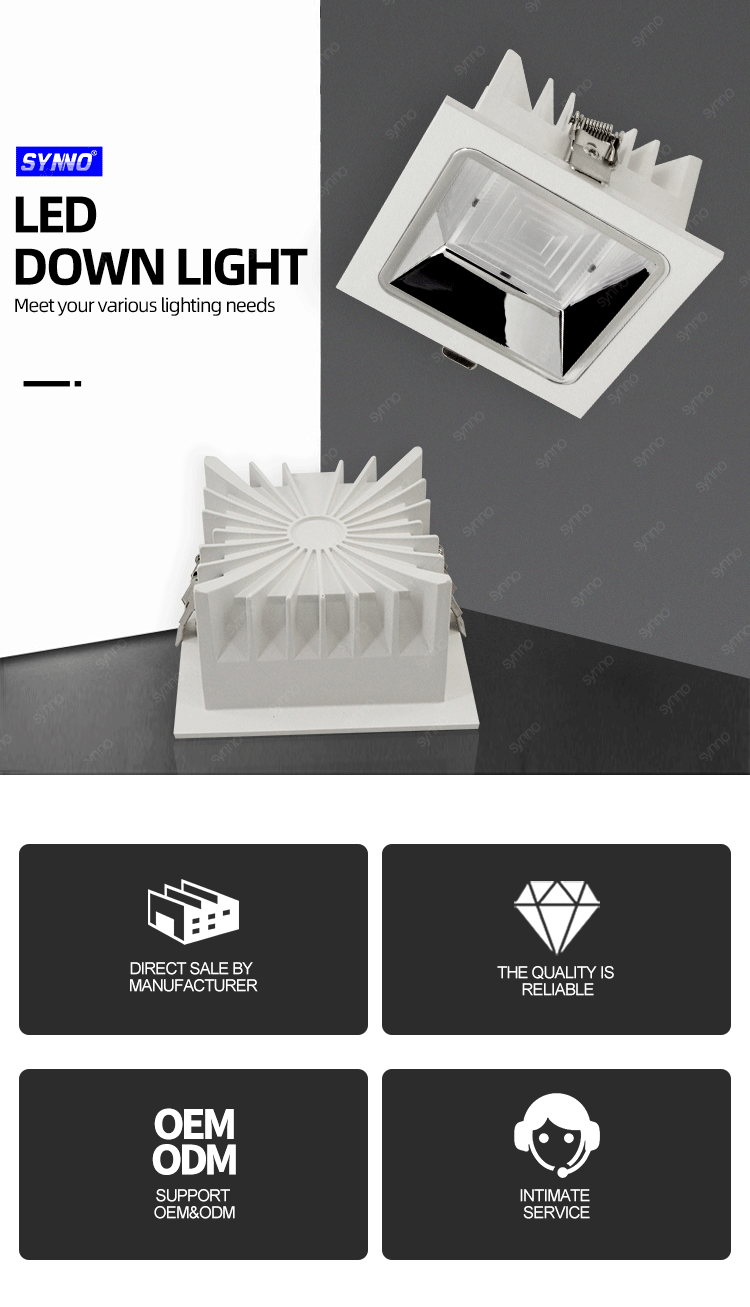

The SMD Square LED Downlight is engineered with Surface Mounted Device (SMD) LED technology, offering high luminous efficiency, low heat generation, and long service life. This modern square-shaped downlight is perfect for architectural projects, residential lighting, and commercial interiors where both performance and design are critical.
Its slim recessed profile allows for easy integration into ceilings without compromising ceiling aesthetics. With its uniform light output, the SMD square downlight eliminates dark spots and ensures a pleasant visual experience. Additionally, its energy-saving design helps reduce electricity costs by up to 60% compared to conventional lighting.
SMD LED technology for uniform, efficient lighting.
Square recessed frame for a stylish ceiling finish.
Energy-efficient performance with reduced power costs.
Lightweight and slim housing for easier installation.
Wide beam angle for broad coverage in interiors.
Low UGR (Unified Glare Rating) for visual comfort.
Available in dimmable versions for flexibility.
Stable driver technology ensures flicker-free lighting.

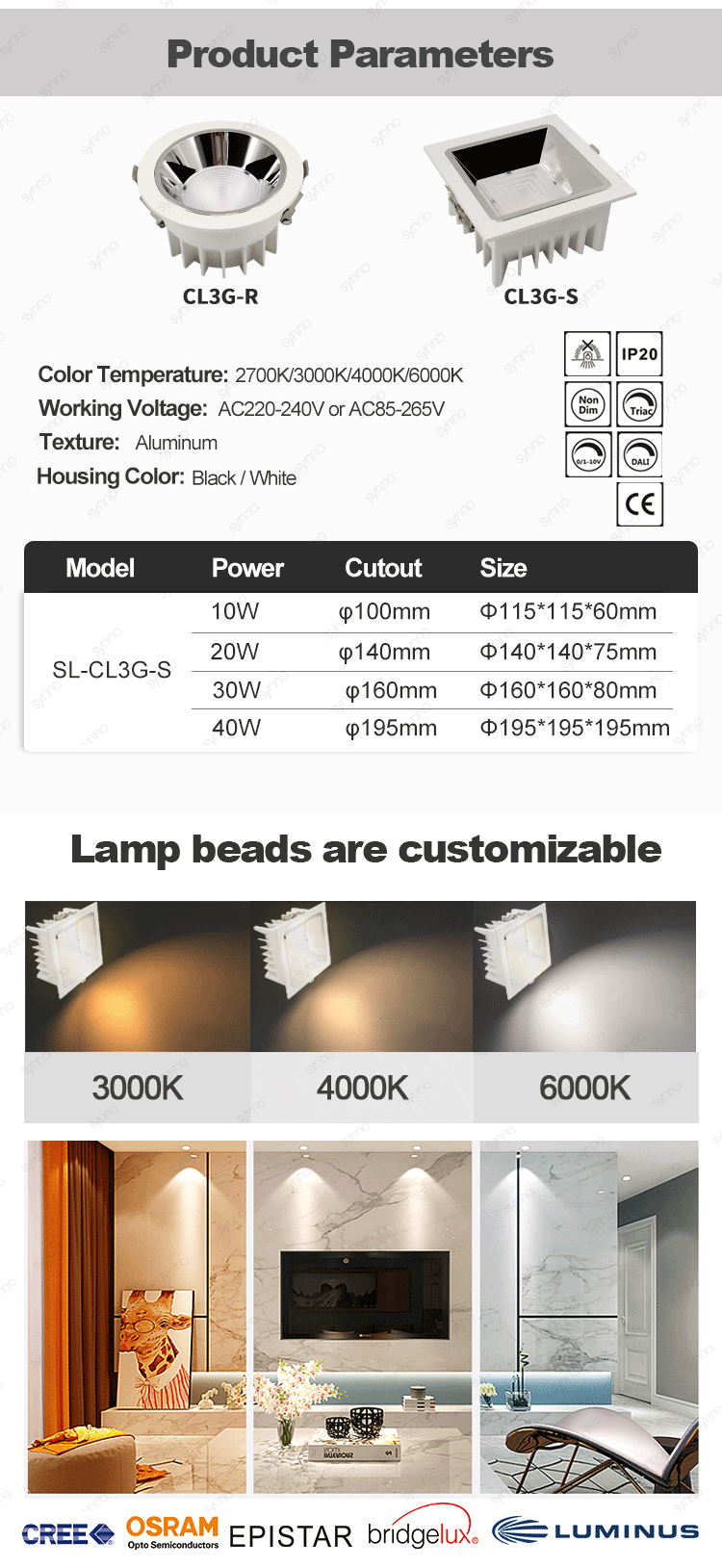

| Parameter | Specification |
|---|---|
| Power Consumption | 10W / 20W / 30W / 40W |
| Input Voltage | AC 85–265V, 50/60Hz |
| Luminous Flux | 800–3200 lm |
| Color Temperature (CCT) | 2700K / 3000K / 4000K / 5000K / 6000K |
| CRI (Color Rendering) | >90 |

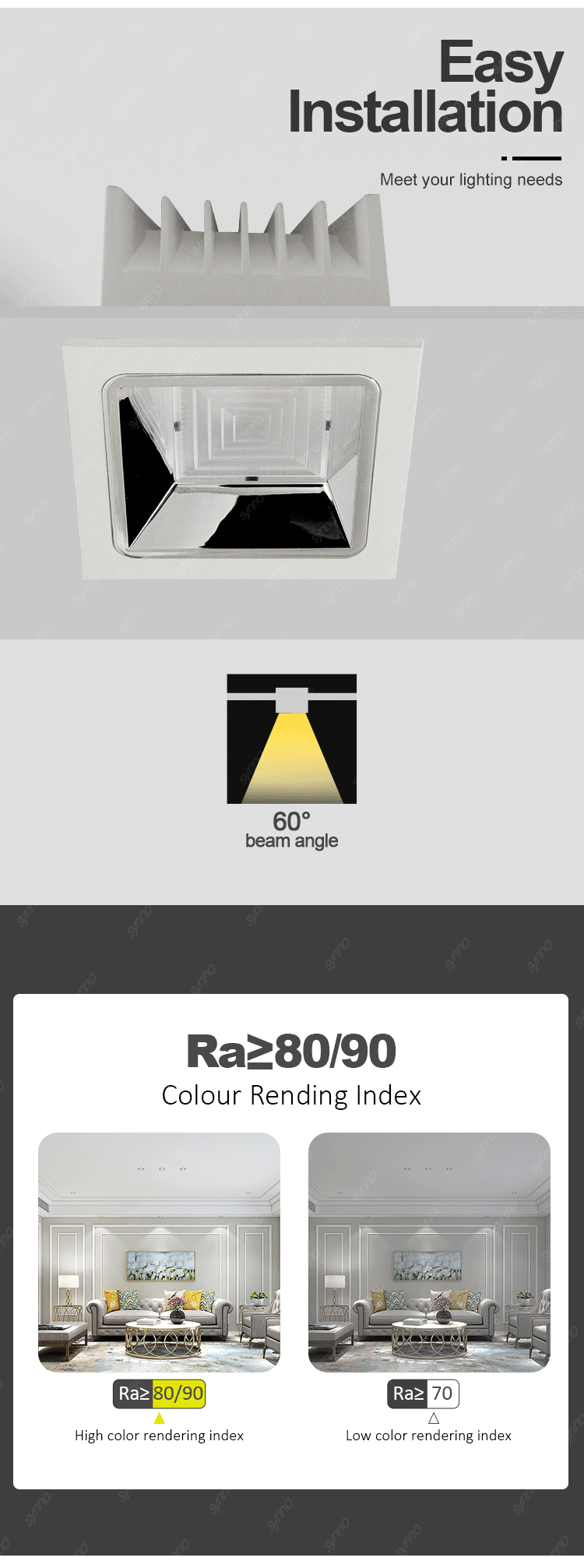

| Beam Angle | 90° |
| LED Type | High-efficiency SMD |
| Material | Die-cast aluminum + polycarbonate lens |
| Shape | Square recessed SMD downlight |
| Finish | White / Black / Silver |
| IP Rating | IP20 / optional IP44 |
| Lifespan | 50,000 hours |

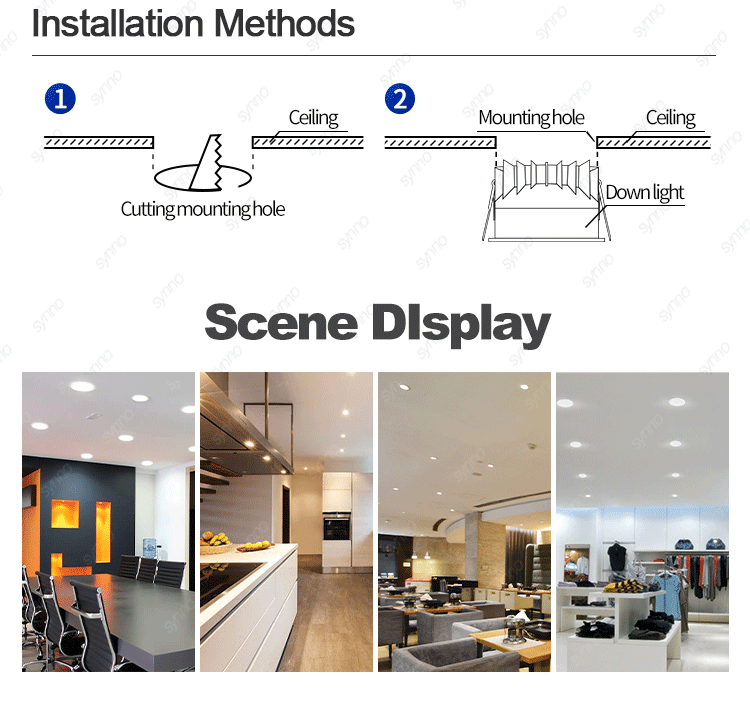

| Mounting Type | Recessed ceiling installation |
Residential lighting – hallways, kitchens, study rooms.
Retail shops – uniform product display illumination.
Corporate offices – cost-efficient, low-maintenance solution.
Educational facilities – classrooms and libraries.
Healthcare facilities – clean, consistent lighting output.
The SMD Square LED Downlight is the ideal balance of energy savings, modern design, and functional performance, making it a go-to solution for professional ceiling lighting projects.
1、Wide range of applications: Square Led Downlight very suitable for corridors, living rooms, kitchens, bedrooms, restaurants, offices and more commercial or residential applications.
2、Smooth Dimming: You can smoothly dim this Square Cob Downlight from 100% to 10% to meet your needs. The long 50,000hrs lifespan eliminates the need for frequent replacements.
3、Durable Lighting: This Square Led Down Light prevents heated airflow from affecting your home's heating and air conditioning thanks to the airtight design. The durable metal spring clips are corrosion resistant and won't easily deform while the aluminum housing grants excellent heat dissipation.

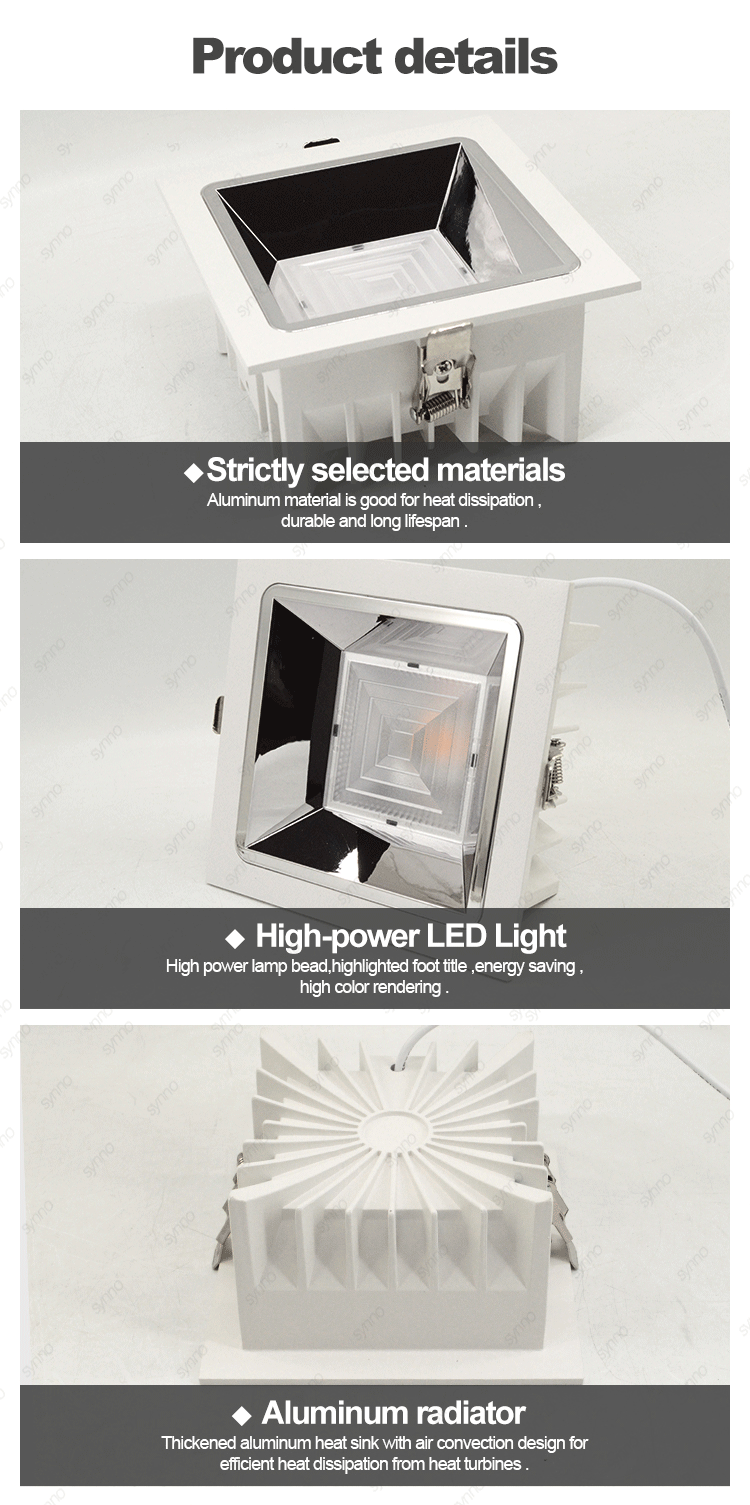

4、Aluminum Material: The fixture of this Square Recessed Downlight is made of aluminum injection molding, which has a very good heat dissipation to ensure that the surface of the lamp will not overheat.
