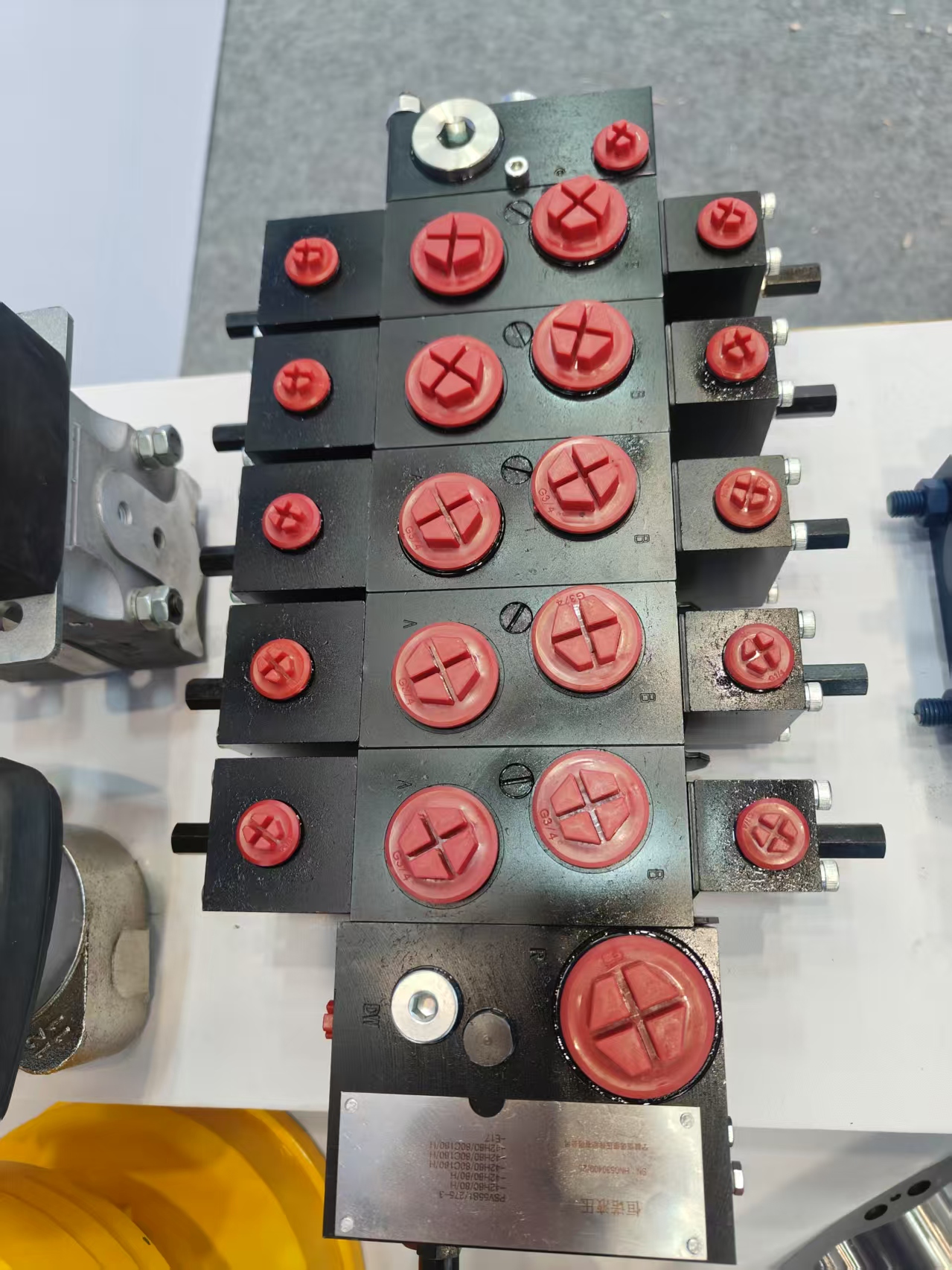

HAWE PSV55S1 - 275 - 3 hydraulic pilot - controlled five - way valve overview
1.Brand and product identification
• Brand: HAWE is a well - known German manufacturer specializing in hydraulic components and systems. With a long - standing reputation in the industry, HAWE is recognized for its high - quality, reliable, and innovative hydraulic products.
• Product model: The PSV55S1 - 275 - 3 is a specific model within HAWE's range of hydraulic pilot - controlled valves. Each part of the model number likely carries certain information about the valve's specifications, such as size, pressure rating, or design features, although the exact meaning of each digit and letter may require reference to HAWE's technical documentation.
2.Hydraulic pilot - controlled mechanism
• Working principle: A hydraulic pilot - controlled valve uses a relatively small hydraulic pilot signal to control the main valve's operation. In the case of the PSV55S1 - 275 - 3, a low - pressure hydraulic signal is applied to the pilot stage. This signal acts on a small pilot valve, which then moves a larger spool or poppet in the main valve body.
• Advantages:
• Precise control: The pilot - controlled mechanism allows for fine - tuning of the valve's operation. It can accurately adjust the flow rate and pressure in the hydraulic system, making it suitable for applications that require precise positioning or speed control, such as in industrial robots or CNC machines.
• Reduced operator effort: Since the pilot signal is typically generated by a small, easy - to - operate control element (e.g., a small lever or a solenoid valve), the operator does not need to apply a large force to directly manipulate the main valve. This improves the overall ease of use and reduces operator fatigue.
3.Five - way valve configuration
• Flow paths: A five - way valve has five ports, which are typically labeled as P (pressure port), T (tank or return port), A and B (working ports), and sometimes an additional port for a specific function. The PSV55S1 - 275 - 3 can direct the hydraulic fluid from the pressure source (P) to either of the working ports (A or B), while the other working port is connected to the tank (T). This allows for two - position control, such as extending or retracting a hydraulic cylinder.
• Applications:
• Hydraulic cylinders: In a simple hydraulic cylinder circuit, the five - way valve can be used to control the direction of the cylinder's movement. For example, when the valve is in one position, hydraulic fluid flows to the rod - end of the cylinder, causing it to retract. When the valve is switched to the other position, the fluid flows to the cap - end, extending the cylinder.
• Hydraulic motors: It can also be used to control the rotation direction of hydraulic motors, enabling forward and reverse movement of machinery like conveyor belts or winches.
4.Technical specifications (hypothetical examples, as exact data would need to be obtained from HAWE's official sources)
• Pressure rating: It may have a maximum operating pressure, for instance, 350 bar. This indicates the highest pressure that the valve can safely handle without leakage or failure.
• Flow capacity: The valve might have a certain flow rate capacity, such as 100 liters per minute. This determines the amount of hydraulic fluid that can pass through the valve in a given time, which is crucial for matching the valve to the requirements of the hydraulic system.
• Response time: The time it takes for the valve to switch from one position to another, known as the response time, could be in the range of milliseconds. A fast response time is important for applications that require quick and accurate control, such as in high - speed manufacturing processes.
5.Maintenance and troubleshooting
• Maintenance:
• Regular inspection: Periodically check the valve for signs of wear, such as scratches on the spool or damage to the seals. Also, inspect the hydraulic connections for leaks.
• Cleaning: Keep the valve clean to prevent the entry of dirt and debris, which can cause internal damage. Use appropriate cleaning methods and solvents recommended by HAWE.
• Troubleshooting:
• Leakage: If there is leakage from the valve, it could be due to worn seals or a damaged spool. Check the seals and replace them if necessary. If the spool is damaged, it may need to be repaired or replaced by a qualified technician.
• Erratic operation: If the valve does not operate smoothly or changes position unexpectedly, it could be due to a problem with the pilot signal, such as a blocked pilot line or a malfunctioning pilot valve. Check the pilot system and clean or replace any faulty components.
