1500m 905nm LiDAR Long Range Infrared Sensor
Are you looking for Long Range Infrared Sensor 5meter to 1500meter 905nm ? Yes, the infrared range sensor is 905nm laser wavelength LiDAR (Light Detection and Ranging) that can measure long-range up to 1500 meters. The Long Range LiDAR Sensor is a type of range sensing technology used to measure distances by illuminating the target with laser light and analyzing the reflected light. Meanwhile, the long range photoelectric sensor has been widely used in UAV (unmanned aerial vehicle) airborne pods, night vision devices, thermal imagers, security, and navigation etc.
If you are developing small defense-oriented drones & would like to purchase three units of this infrared range finder sensor, for your . Please let us know.

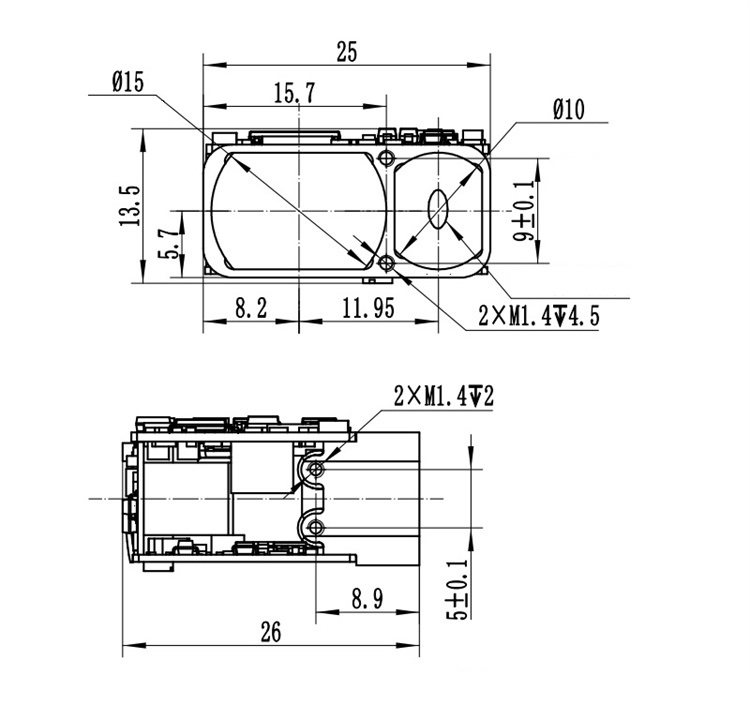

Machinical Dimensions
Technical Parameters:
The following is main performance specification:
1. Working wavelength: 905nm±10nm at 25℃;
2. Ranging capability: ≥1500m(Target: Large target, visibility: ≥10km, humidity: ≤60%, target reflection coefficient: 0.3);
3. Minimum ranging distance: ≤5m;
4. Accuracy: ≤1m (≤300m), ≤±2m(> 300m);
5. Ranging frequency: Single time, 1Hz, 2Hz, 5Hz (meeting the range of 1km is sufficient).
Physical features

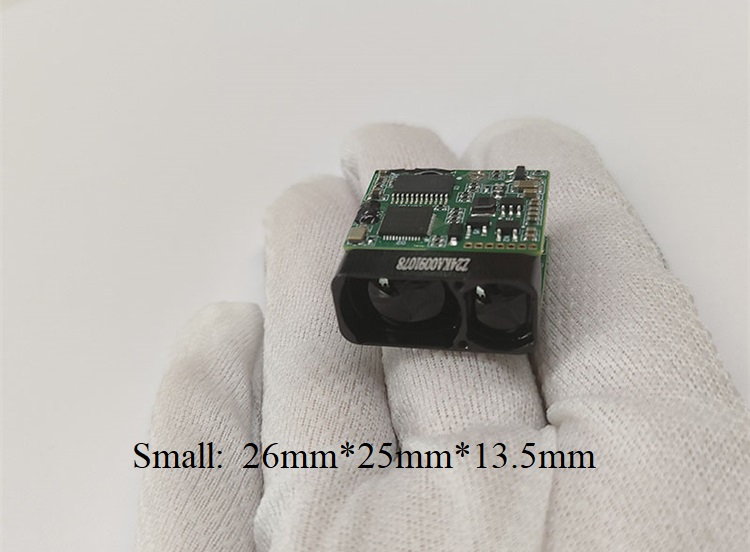

Dimensions: 26 *25 *13.5mm
Weight: about 10g±0.5g
Environmental Adaptability:
1. Operating temperature: -20℃ to +60℃
2. Storage temperature: -30℃ to +60℃;
3. Environmental protection: Meets the requirements of ROHS 2.0.
Ranging capability
Under the conditions of visibility ≥10km and relative humidity ≤60%, when testing large ground targets (with a reflectivity of 0.3) or equivalent target plates, the ranging capability of the laser rangefinder can reach over 1500m, and the accuracy rate is greater than 98%.
Software
Data
a) Single-byte transmission format: It includes
Start bit: 1;
Data bits: 8, no parity(8-bit data is transmitted to the lower bit first and then to the higher bit.)
Stop bit: 1;
Parity bit: none.
b) Baud rate: 115200bps;
c) Communication interface: TTL (3.3V).
Close Picture
Applications
This Industrial laser range sensor can be widely used in agricultural forestry, electricity/power inspection, safety supervision, urban management, security, fire protection, geological exploration etc.
