Product details


Refrigerating Spectrometer-Metal



Features:

  • High signal-to-noise ratio

  • Secondary cooling

  • Back-illuminated area array CCD detector

  • High precisionvarious

  • Low temperature drift characteristics

  • High UV response

  • humanized software design

  • Support download for Spectral Analysis 5.0

Applications:

  • Raman spectrum detection

  • Fluorescence spectrum detection

  • Scientific experiments

  • Environmental testing














■ Standard Specifications

Detector
Detector Hamamatsu cooled area array CCD sensor
Wavelength range 200-1100nm
Pixels 2048 pixels
Pixel size 14um*14um

Spectrometer
Dimensions (mm) 192*109*61.2
Optical resolution Depending on the grating mark density and the slit size (available in a variety of options)
Optical design F/4, symmetrically crossed Czermy-Turner

Electronics
Integration time 17ms-60s
Signal-to-noise ratio

1000:1

AD

16

Connector

USB2.0

Power consumption

450mA@5V DC

Cooling

3A@5V DC

Cooling temperature

Below room temperature 20℃

Support system

WinXP/Win7/Win10

Weight (g)

1790


■ Dimensions

192(L)×109(W) ×61.2(H) mm3




Related Products

Optic Fiber Spectrometer

Fluorescence Spectrometer

Confocal Laser Scanning Microscopy

Raman Spectroscopy Laser

Laser Induced Breakdown Spectroscopy

Fiber Coupled Laser Diode Module



Certifications

Pulsed Laser Driver

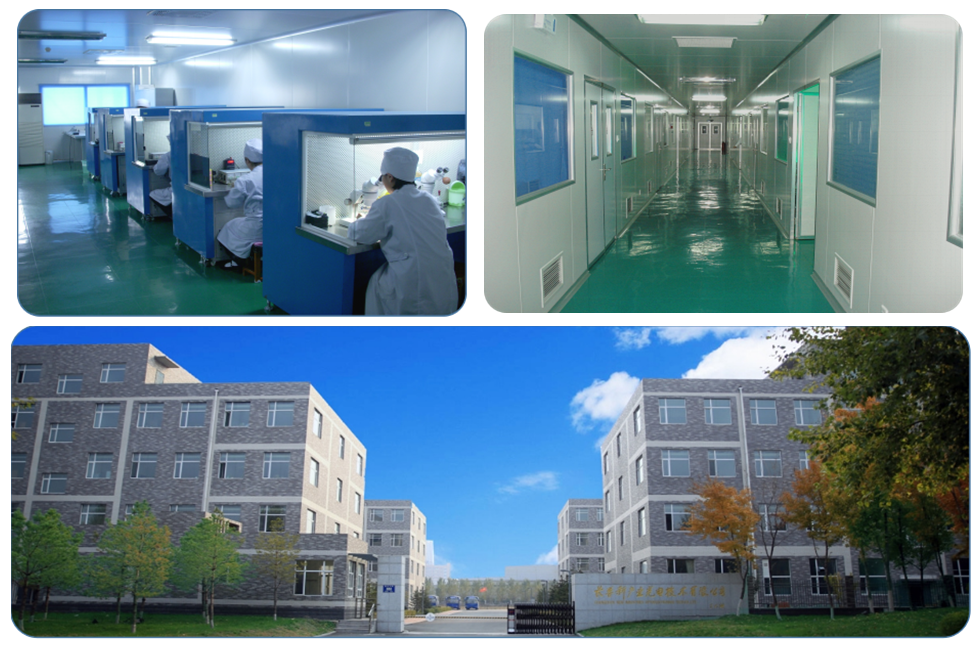

Copmpany Information
