KEYUACE Automotive Braided Protective Sleeving Product Details

1. Product Introduction

Crafted with meticulous attention to detail, KEYUACE automotive braided protective sleeving is constructed from premium PA66 (nylon 66) monofilament and PET polyester monofilament, strictly following the GMW14327 standard. This high-performance cable and wire sleeving serves as a specialized solution, significantly enhancing the mechanical wear resistance of automotive rubber hoses, plastic pipes, and wiring harnesses.

Meeting international benchmarks like RoHS and REACH, it offers remarkable flame retardancy, excellent oil resistance, and superior wear resistance, all while being oxaline-free. Its user-centric design makes installation and operation straightforward, eliminating the need for complex procedures. With certifications from esteemed bodies such as UL, DIN5510, NFPA130, and compliance with quality management systems IATF16949 and ISO9001, it guarantees top-tier quality and reliability.

2. Product Application

The expandable braided sleeving by KEYUACE demonstrates remarkable versatility, being extensively utilized in water circulation systems, air conditioning systems, fuel pipe systems of automobiles and motorcycles, as well as numerous other pipelines. Its high expandability feature enables effortless insertion into both straight and curved pipes.

This sleeving acts as a sturdy shield, not only organizing the pipelines neatly but also providing comprehensive protection and enhanced wear resistance for the vital equipment pipelines and components of vehicles. Whether in high - vibration environments or areas with constant friction, it ensures the integrity and longevity of the protected systems.

KY-CAR automotive braided protective Sleeving

3. Product Structure and Complementary Characteristics

This series showcases an innovative mixed structure of PET and PA66. By combining these two distinct filaments, the braided sleeving creates a harmonious blend where their strengths are maximized, and weaknesses are mitigated.

PA (nylon) silk contributes its exceptional wear resistance, while PET brings in high elasticity and flexibility. This combination results in a product with an extended service life and optimized performance. No matter if it’s exposed to extreme temperatures, high - pressure conditions, or corrosive substances, the complementary nature of these materials ensures the sleeving maintains its functionality and durability across diverse environmental challenges.

4.Technical parameters

Material: PET polyester + PA66 nylon

Operating temperature: -40℃ ~ +150℃

Flame retardant rating: UL 94V2

Standard color: black

Certifications: ROHS2.0, halogen-free, ELV and asbestos-free

Cutting tool: hot cutter

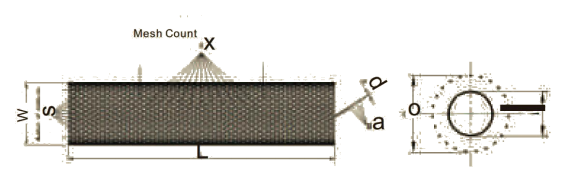

5.Product size illustration

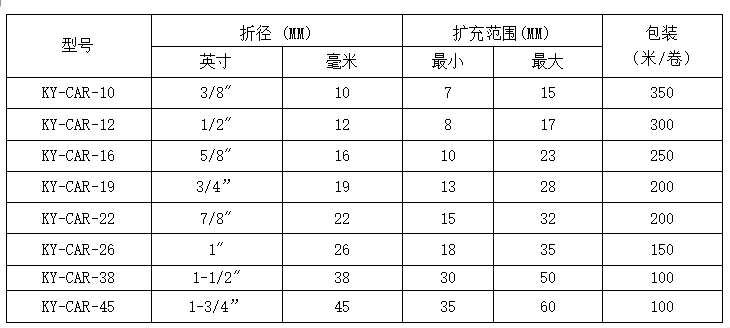

6.Product Specifications

Notes:

1. The folded diameter refers to the flat width of the casing in its natural state.

2. The mesh tube is retractable, and the following specifications are the same specifications.

16mm=l5mm, l9mm=20mm, 32MM=30MM, 38MM =40MM,51mm=50mm

3. Special packaging, special colors, etc. can be customized according to customer needs.

4. Please refer to the sample approval letter for detailed product parameters.
