KY-CX Magnetic Heat Shrink Tube

KY-CX Magnetic Heat Shrink Tube is a premium protective sleeving engineered for advanced electromagnetic management. Crafted from irradiated cross-linked specialty magnetism polyolefin, it combines thermal contraction technology with magnetic shielding capabilities, offering dual protection against physical damage and electromagnetic interference (EMI).

With a 2:1 shrinkage ratio activated at 60°C (initial) and 100°C (full contraction), it ensures tight, uniform coverage around wires, cables, and components. Designed for durability, it operates continuously from -55°C to 125°C, maintaining structural integrity and magnetic performance under extreme conditions.

In the electronic component industry, it revolutionizes inductor and capacitor design by replacing bulky magnetic covers. This not only streamlines component size but also enhances inductance values and electromagnetic compatibility (EMC), critical for high-frequency applications. Beyond passive components, it shields PC power supplies, data cables, and sensitive circuits from external EMI sources, ensuring signal integrity and system reliability.

Compliant with RoHS and REACH environmental standards, the KY-CX tube aligns with global sustainability initiatives. Its easy installation—requiring only heat application—reduces assembly time, while its magnetic properties minimize the need for additional shielding components. Ideal for aerospace, automotive, and consumer electronics, this magnetic heat shrink tube delivers comprehensive protection and EMI mitigation in a single, versatile solution.

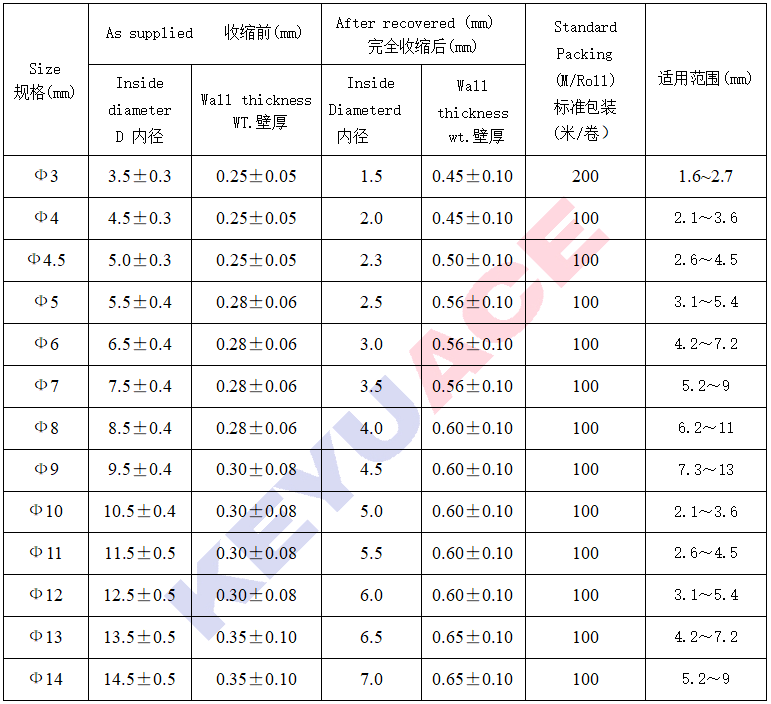

Product Specification

Sleeves smaller than Φ4 or larger than Φ14 are abnormal and shall be manufactured as per the order requirements.

Colour: Standard colour: Black

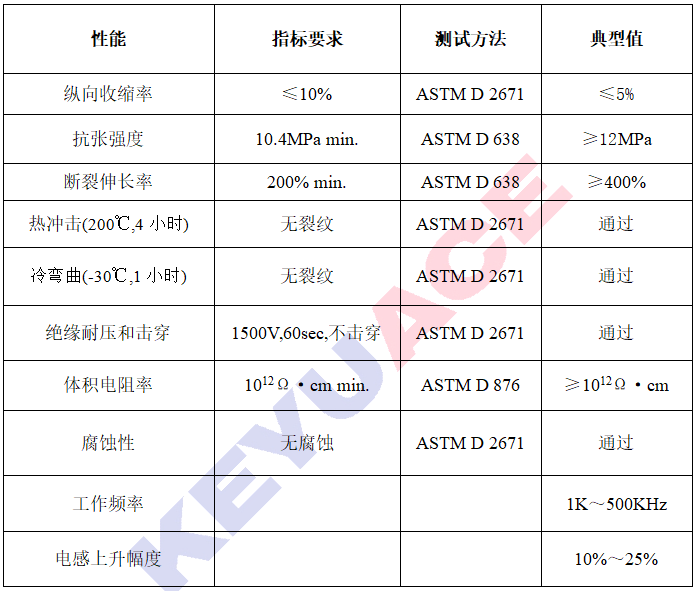

Technical performance
