KY-135℃-2X Heat Shrink Tube

KY-135℃-2X Heat Shrink Tube is crafted from high-quality irradiated cross-linked soft PE material, offering 135℃ temperature resistance and excellent electrical, physical, and chemical properties. As a versatile protective sleeving, it provides electrical insulation for connectors, dust-proof bundling, marking, solder joint corrosion prevention, and mechanical protection.

Featuring a 2:1 thermal contraction ratio, it initiates shrinkage at 80℃ and fully contracts at 120℃, ensuring a tight seal. The soft, elastic material offers high flame retardancy (except transparent variants), with low smoke emission and stable performance from -55℃ to 135℃.

Compliant with ROHS/REACH and certified to AMS-DTL-23053/5, UL224, and CAN/CSA C22.2, it comes in standard colors like black, red, yellow, green, blue, and transparent (non-flame-retardant). Custom sizes and cuts are available. This heat shrink tube combines reliable thermal contraction with protective functionality, ideal for electronics, communications, automotive, marine, and aerospace applications.

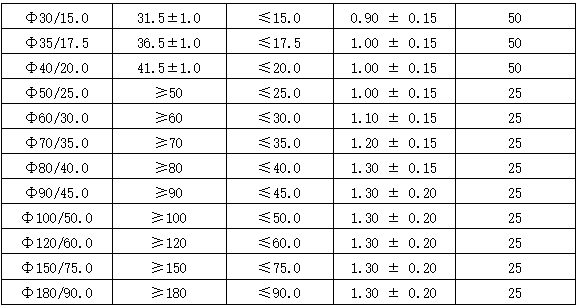

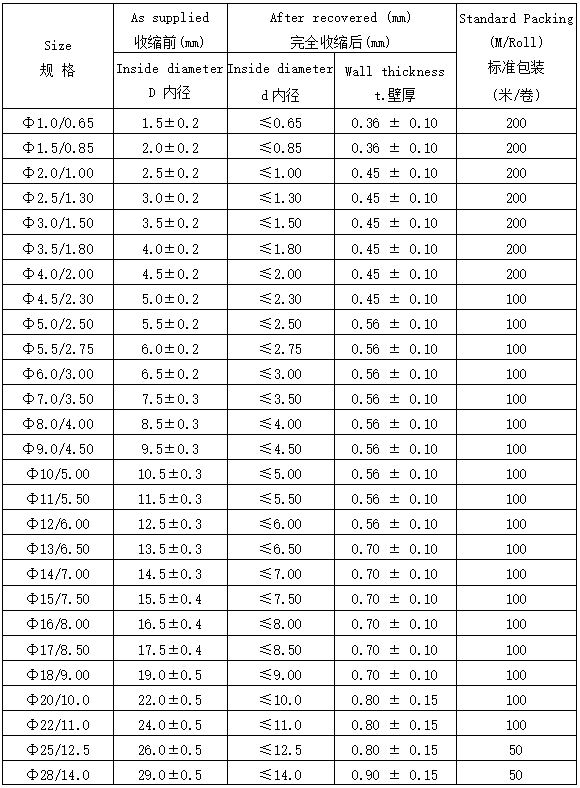

Product Specification

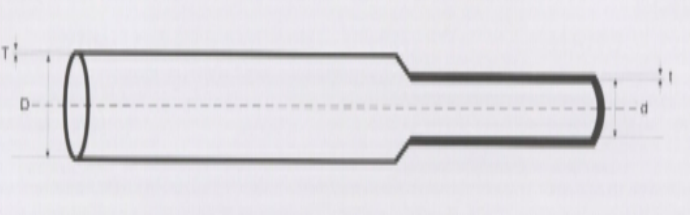

Product illustration

Average wall thickness = (wall thickness at the highest point + wall thickness at the lowest point) ÷ 2

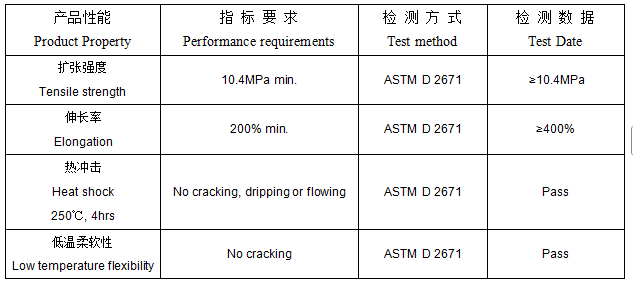

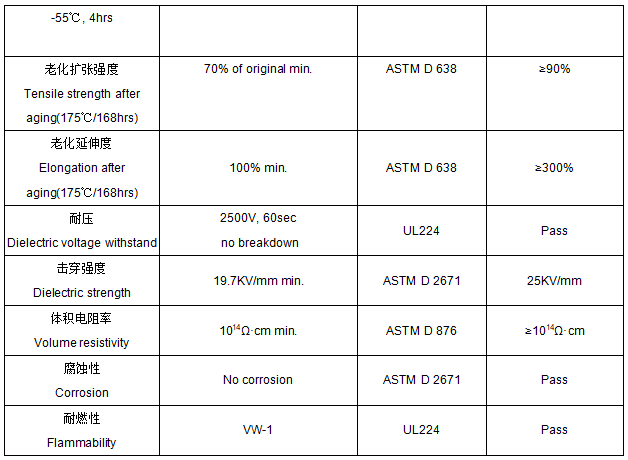

Technical performance
