KY-ES Shielded Heat Shrink Tubing

KY-ES Shielded Heat Shrink Tubing

4 week ago

2 0

Dong Guan KE YU New Material Technology co.,LTD

 8 year year

Product details

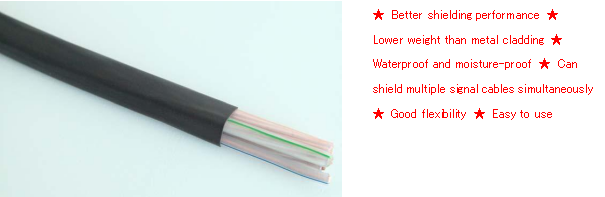

KY-ES Shielding Heat shrink tube

Product Introduction

Shielding Heat shrink tube is a combination of a Thermal contraction Polyolefin tube and a flexible and shrinkable conductive layer. Effective EMI Shielding for cable /connector terminals is provided by heating the surface of the Polyolefin Heat shrink tube, which shrinks along with the conductive layer. This Shielding Heat shrink tube is Shielding lighter than traditional metal braids and easier to install, with an Shielding efficiency of 35dB - 70dB in the 14KHz - 10GHz frequency band.

Product Features

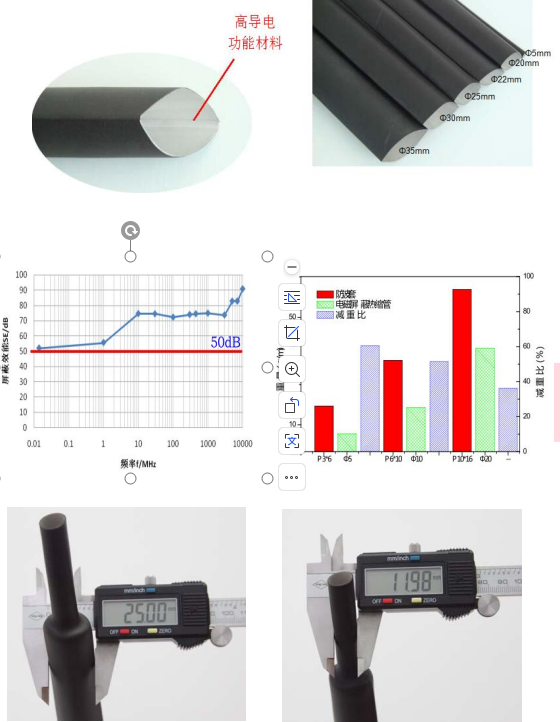

1.High Shielding performance With a very wide Shielding bandwidth effective from 14 KHZ to 10 GHZ, it can meet the demanding requirements of electronic devices. When cut and shrunk, the efficiency of Shielding can reach more than 50dB, which is much higher than that of ordinary Shielding cables.

2.Light weight Compared with commonly used wave sleeves, it is not considered that wave sleeves use protective Heat shrink tubes, reducing weight by more than 35%. Especially for small-diameter specifications, the weight reduction exceeds 60%.

3.Good flexibility Because the Shielding layer is made of polymer material, it has excellent flexibility and can be bent freely without damaging the Shielding layer.

4.Easy to use: It is applied with a common hot air gun, which is convenient and fast.

The standard product has a shrinkage rate of over 50%, and high shrinkage rate electromagnetic shielding heat shrink tubes can also be processed, with a shrinkage rate of over 75%.

Application field

1. For high-performance shielded cables

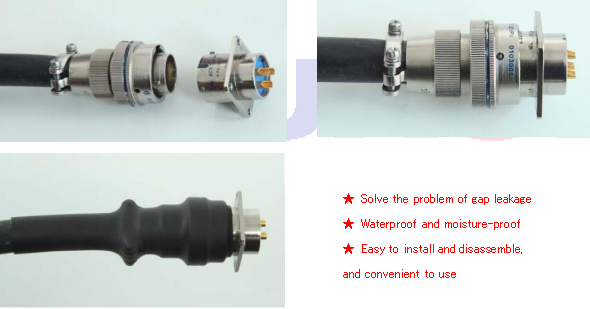

2. For cable connectors

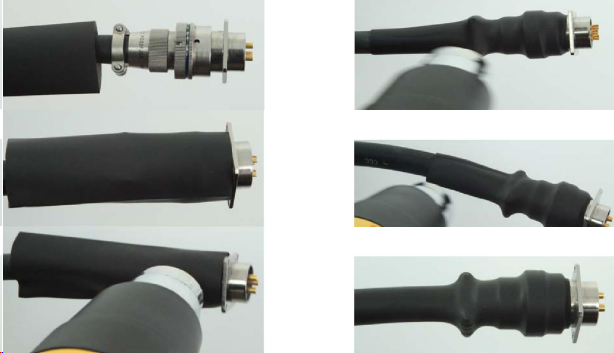

3 Usage Method

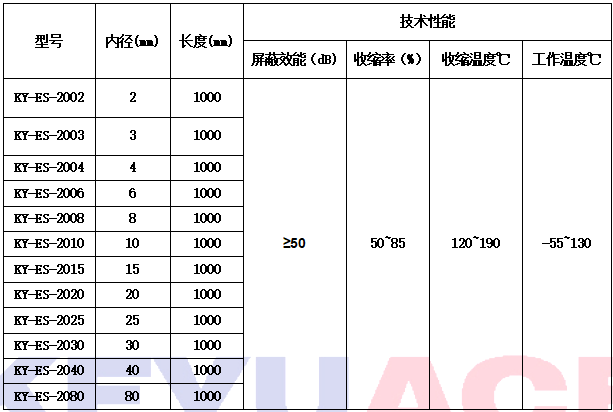

Specification and model
