HJM Adhesive Middle wall heat shrink tubing | 3:1 shrinkage ratio waterproof protection solution

Core advantage

The HJM sleeve adopts a composite structure of semi-rigid polyolefin PE outer layer and EVA hot melt adhesive inner layer. It features a 3:1 shrinkage ratio and multiple protective properties: the electronic insulation grade meets the industry's high standards, and the sealing adhesive layer melts when heated to form a waterproof barrier, which can resist ultraviolet rays, moisture and mechanical shock. It is particularly suitable for the sealing and fixation of light optical cable joints and connection points of irregular cables, solving the protection problem of irregular interfaces.

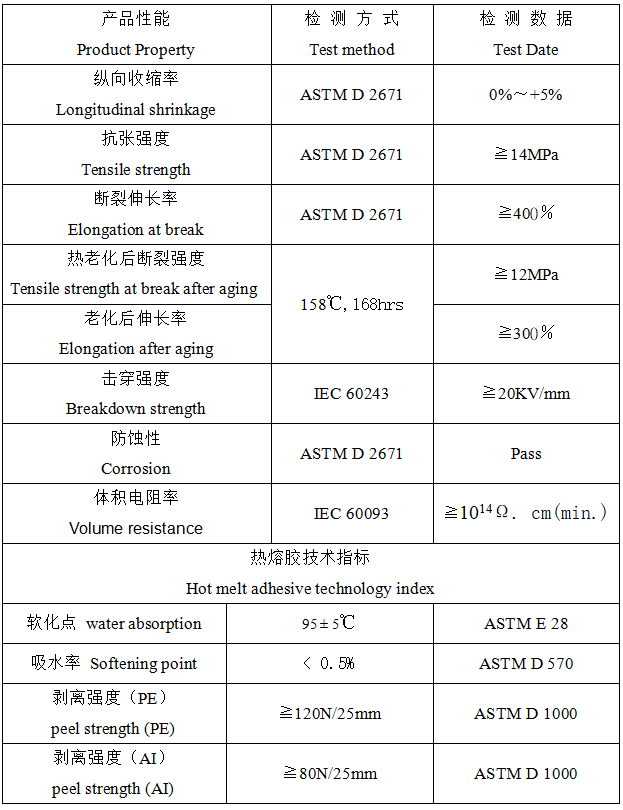

A quick overview of technical parameters

Shrinkage performance: Initial shrinkage at 70℃, sealing completed at 125℃, and wide temperature range operation from -45℃ to 110℃

Structural design: Polyolefin PE outer protective layer + EVA hot melt adhesive inner layer

rotective capabilities: Resistant to UV aging/moisture-proof and anti-corrosion/resistant to impact and wear

Color specification: Standard black and red are available

Analysis of Application Scenarios

In scenarios such as communication equipment wiring and automotive circuit connection, after the casing is heated, the adhesive layer fills the gaps, eliminating the risk of water vapor intrusion and oxidation. The 3:1 contraction ratio is suitable for connection points with sudden changes in pipe diameter, such as aviation plugs and the intersections of branch cables, providing full-cycle protection for electronic components from installation to long-term operation, while balancing the requirements of lightweight and high reliability.

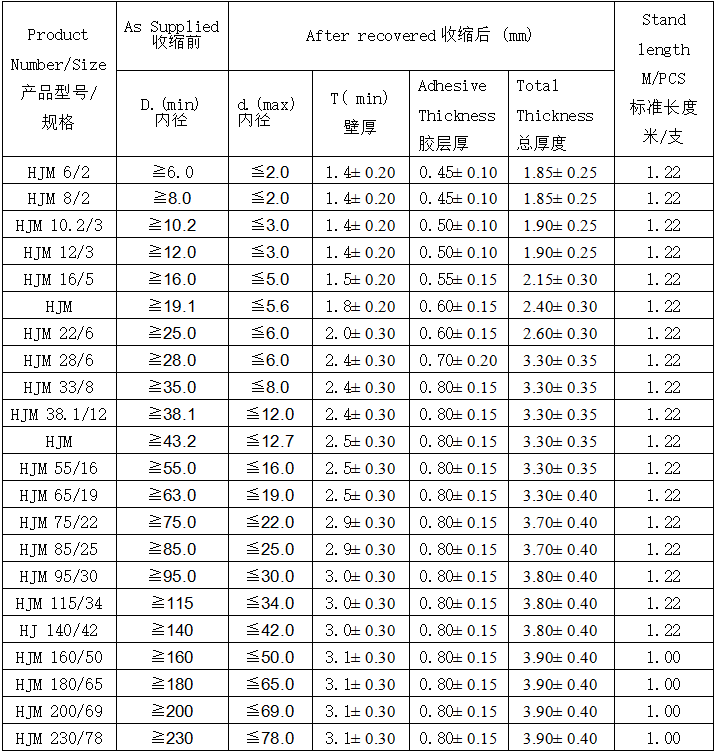

Adhesive mid-wall heat shrinkable sleeve

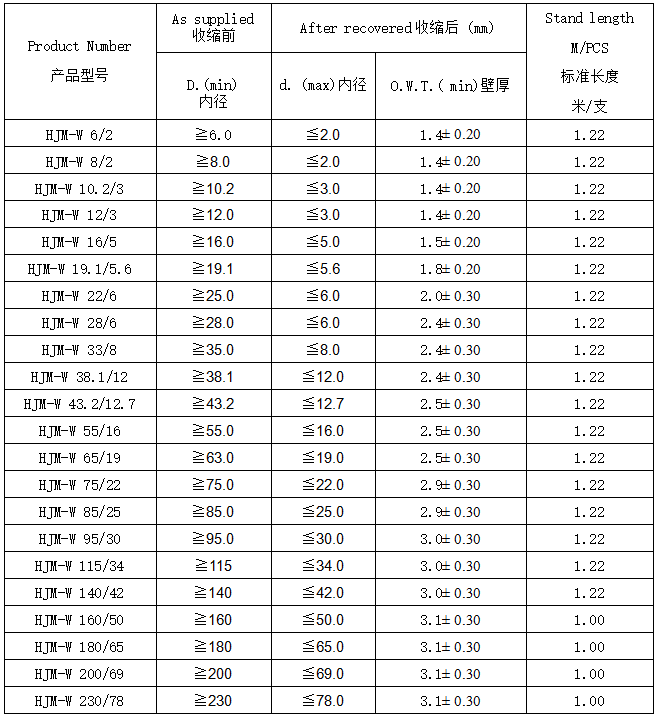

Glue-free mid-wall heat shrink tubing

The specified size and cutting can be provided separately according to the customer's special requirements
