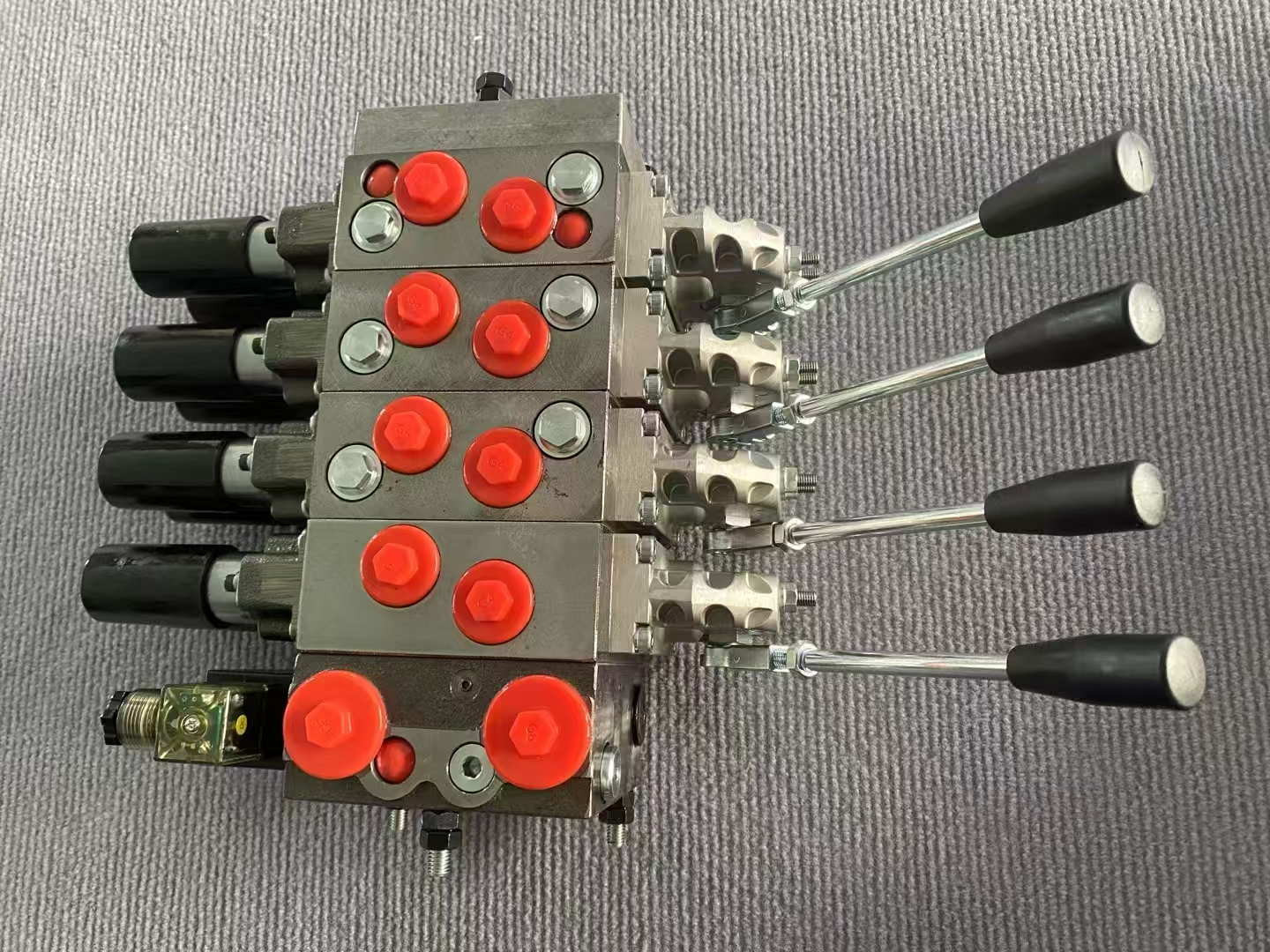

The HSDVG32 Series Hydraulic Valve Bank is a 5-section, 4-spool valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. It features both electric proportional and manual control, offering precise and reliable operation.
This HSDVG32 Hydraulic Valve Bank is a powerful and versatile solution for demanding applications. Its 5-section design allows for independent control of multiple hydraulic functions, while the 4-spool configuration provides a wide range of control options. The valve offers both electric proportional and manual control, providing flexibility for different operating scenarios. It is suitable for use in telehandlers, forklifts, cranes, excavators, skid steers, and other heavy-duty equipment. With its high flow rate of 140 L/min and maximum pressure of 315 bar, this valve is designed to handle demanding hydraulic circuits. Its robust construction and wide operating temperature range ensure reliable performance even in harsh conditions.
PVG32 4-Section Multi-Way Valve (Detailed Overview)
I. Product Overview
The PVG32 4-Section Multi-Way Valve is a high-performance hydraulic control valve group designed for heavy-duty applications in construction machinery, agricultural equipment, and industrial vehicles. Its core features include independent control of multiple hydraulic functions through a four-section (quadruple) structure, along with high precision, reliability, and modular design, enabling it to adapt to complex operating conditions.
II. Technical Specifications
1. Operating Pressure Range:
Typically supports a maximum working pressure of 315 bar (specific models may vary slightly), suitable for high-pressure hydraulic systems.
2. Flow Rate Range:
Flow rates can reach 100-200 L/min depending on configuration, meeting the high-flow demands of medium to large-sized equipment.
3. Control Methods:
• Electro-Proportional Control: Achieves precise flow and pressure regulation via electromagnetic proportional valves, suitable for automated scenarios.
• Manual Control: Equipped with mechanical handles for emergency operation or debugging.
• Load-Sensing (LS) Function: Some models support load-sensing technology to optimize energy consumption and enhance system responsiveness.
4. Ports and Dimensions:
• The valve body adopts a modular design, supporting multi-section expansion (e.g., four-section, six-section, etc.).
• Port types typically comply with ISO/DIN standards, ensuring compatibility with mainstream hydraulic systems.
5. Environmental Adaptability:
• Operating temperature range: -20°C to +80°C (some models extendable to -40°C).
• Protection grade: IP65 or higher, suitable for harsh environments.
III. Core Functions
1. Multi-Section Independent Control:
The four-section structure enables independent control of four separate hydraulic actuators (e.g., cylinders, motors), facilitating synchronized or sequential control of complex movements.
2. Precise Flow Regulation:
In electro-proportional control mode, flow regulation accuracy can reach ±1%, suitable for scenarios requiring fine operation (e.g., excavator arms, agricultural machinery).
3. Energy-Saving Design:
Load-sensing technology reduces system overflow losses, lowers energy consumption, and extends the lifespan of hydraulic components.
4. Safety Protection:
Built-in overload protection, pressure compensation, and anti-shock functions enhance system reliability.
IV. Application Scenarios
1. Construction Machinery:
• Hydraulic arm control for excavators, loaders, and cranes.
• Independent drive of travel motors and swing motors.
2. Agricultural Machinery:
• Hydraulic steering and actuator control for harvesters and tractors.
• Precise regulation of hydraulic suspension systems.
3. Industrial Vehicles:
• Hydraulic lifting and steering control for forklifts and aerial work platforms.
• Hydraulic drive for automated logistics equipment.
V. Advantages Analysis
1. Modular Design:
Supports multi-section expansion, allowing users to flexibly configure the number and functions of valve groups based on needs.
2. High Reliability:
Adopts high-quality materials and sealing technology, adapting to high-temperature, high-pressure, and high-pollution environments.
3. Convenient Maintenance:
Modular structure facilitates easy disassembly and repair, reducing downtime.
4. Strong Compatibility:
Seamlessly integrates with mainstream hydraulic systems (e.g., Rexroth, Kawasaki), lowering integration costs.
VI. Comparison with Other Valve Groups
【表格】
Comparison Item PVG32 4-Section Multi-Way Valve Traditional Multi-Way Valve
Control Precision High (electro-proportional ±1%) Low (mechanical control)
Energy-Saving Effect Excellent (load-sensing technology) Average (fixed overflow)
Expandability Modular design, supports multi-section expansion Fixed structure, poor expandability
Application Scenarios
Heavy-duty, automated equipment
Light-duty, manually controlled equipment
