Eye-safe 3000m Drones For LiDAR Module
The Drones For LiDAR Module is 1535 nm eye-safe wavelengths laser, meaning it operates at a wavelength and power level that is safe for human eyes. Customers uauslly use the rangefinder module for a variety of applications, like Drone height determination, topographic mapping, environmental monitoring etc. If you want buy the Laser Range Sensor Boards sample to test, please contact us.
Technical parameter performance index:
Model: LD30X-3km-3(b250415n25-3)
Working laser wavelength: 1535±5nm
Eye safety laser: Class 1 (IEC 60825-1)
Receiving Aperture: Φ13mm
Emission aperture: Φ13mm
Ranging capability: 15-3000m
≥3000m NATO target
≥2000m Human target
≥600m UAV target
Mini Range: 15m
Multi-target detection: Up to 3 target
Ranging accuracy: ±1m
Ranging frequency: 1~10Hz adjustable
Accuracy rate: ≥98%
False alarm rate: 1%
Divergence angle: ≤0.6mrad
Laser optical axis stability ≤0.05mrad
Parallel error ≤0.3mrad Parallelism error of optical axis to mounting reference
Mechanical Shock: 75g,1ms
Reliability: MTBF ≥ 1500h
Three Main Functions:
First and last target ranging,
Multi-target ranging,
Distance selectivity
Physical specifications

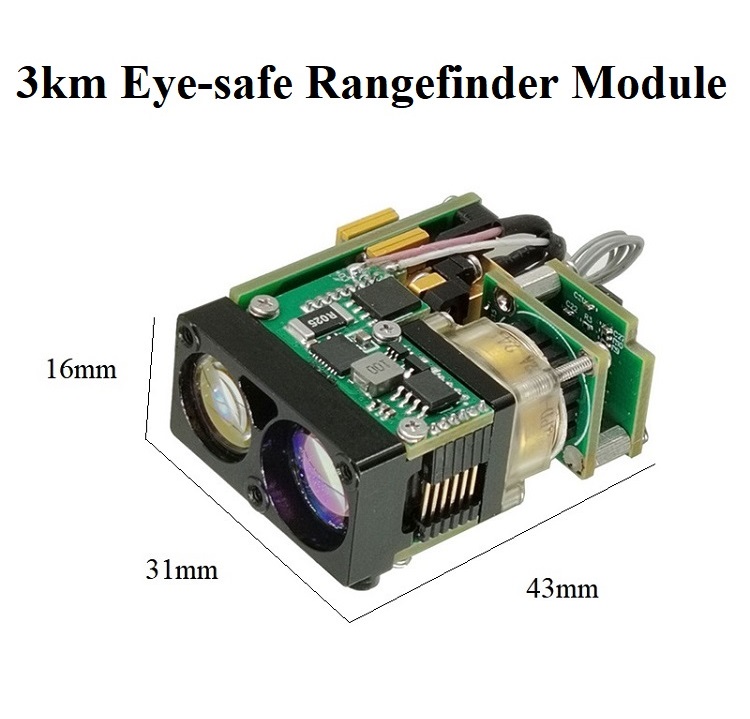

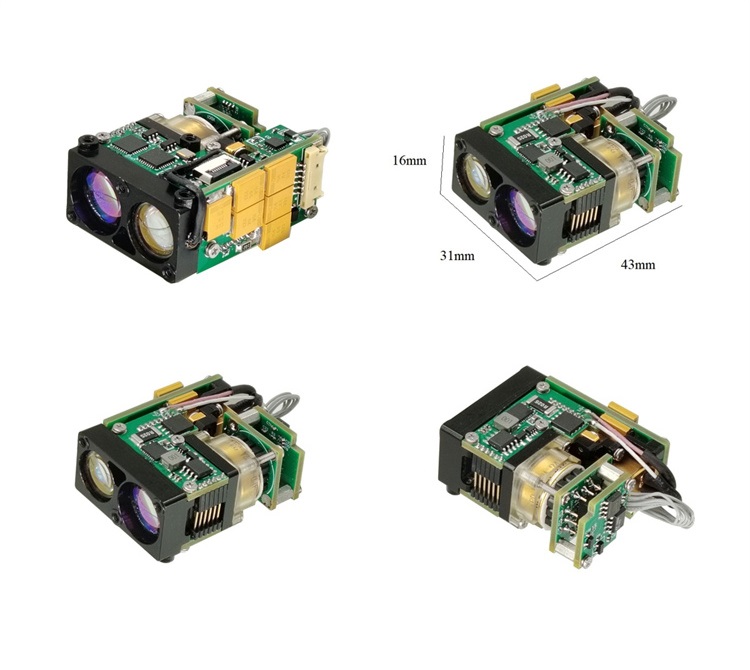

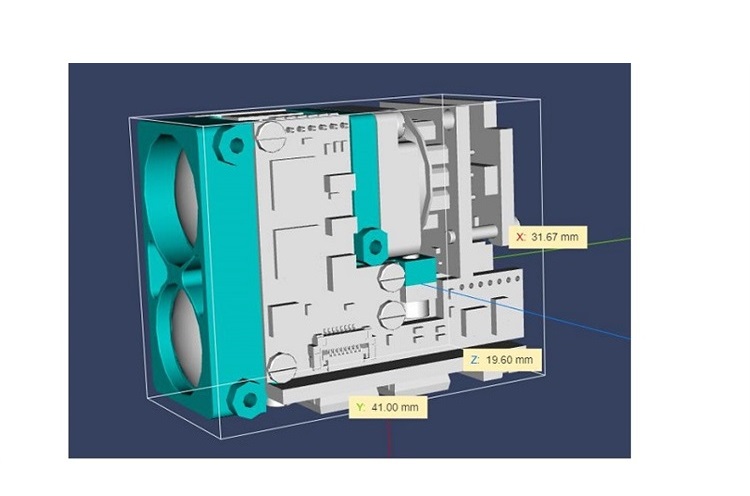

Dimensions: about 43mm ×31mm ×16mm
Weight: ≤44g
Electrical parameters
Voltage: DC5~16V
Power consumption: ≤1.2W(@1hz) for Working power, ≤5W for Peak power
Communication interface assembly
Communication Interface: TTL, RS422/RS232 Interface can be customised
Applicable environmental conditions:
Operation temperature: -40℃~+70℃
Storage temperature: -55℃~+75℃

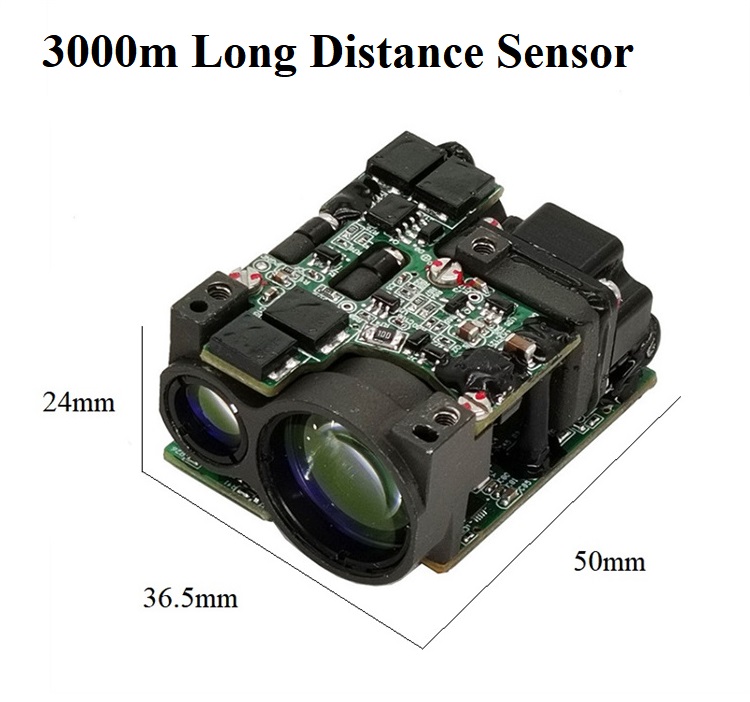

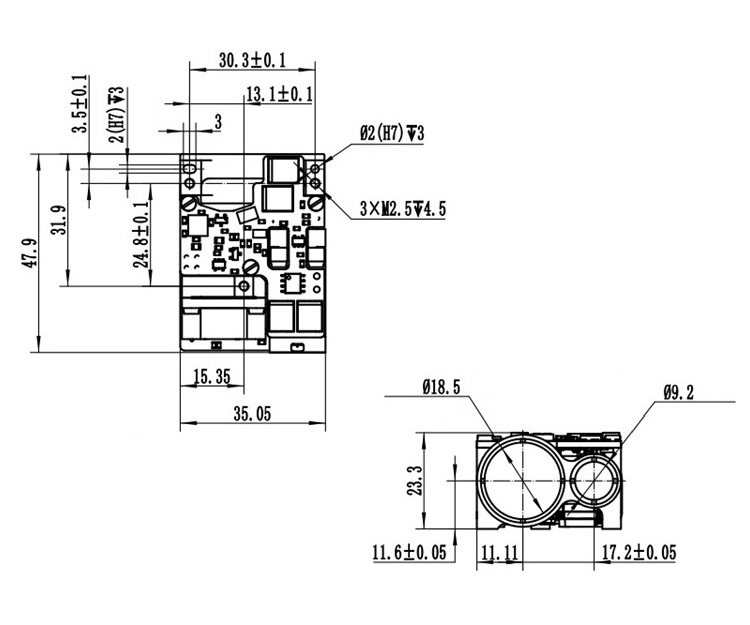

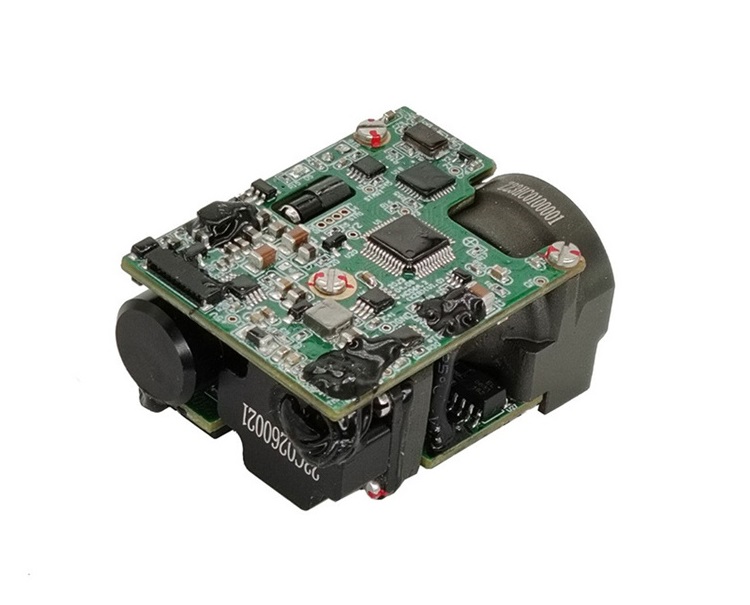

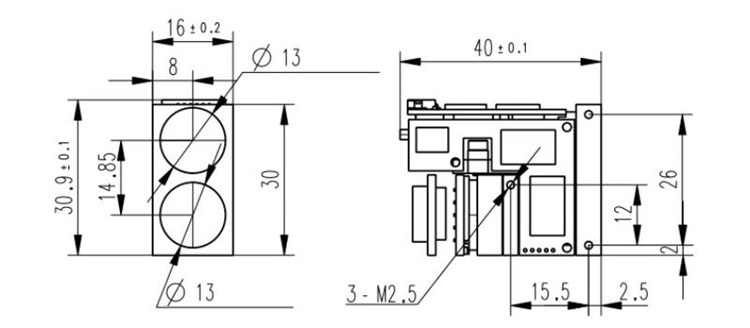

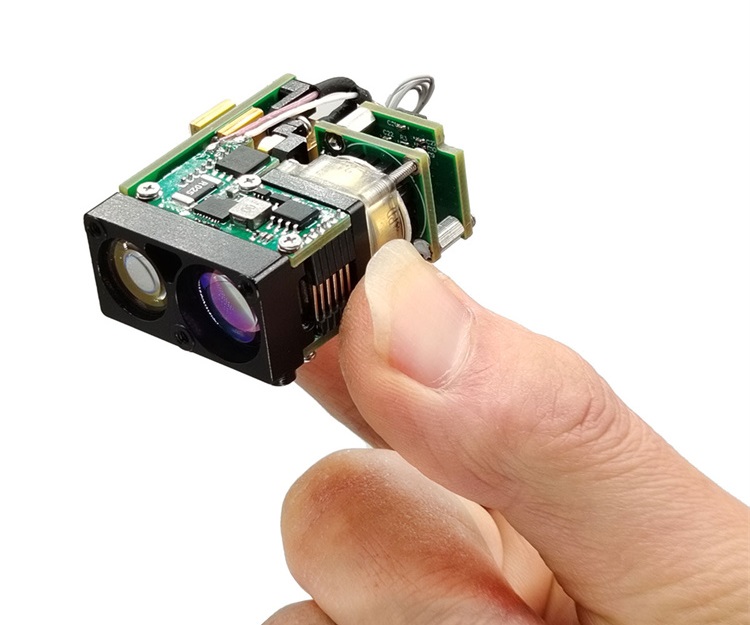

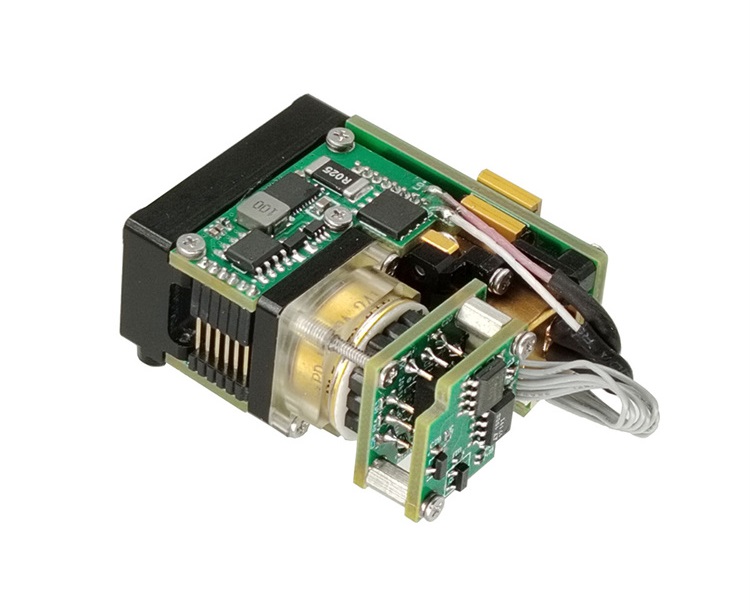

Detailed Pictures:
Applications
This Industrial Laser Distance Sensor can be widely used in agricultural forestry, electricity/power inspection, safety supervision, urban management, security, fire protection, geological exploration etc.

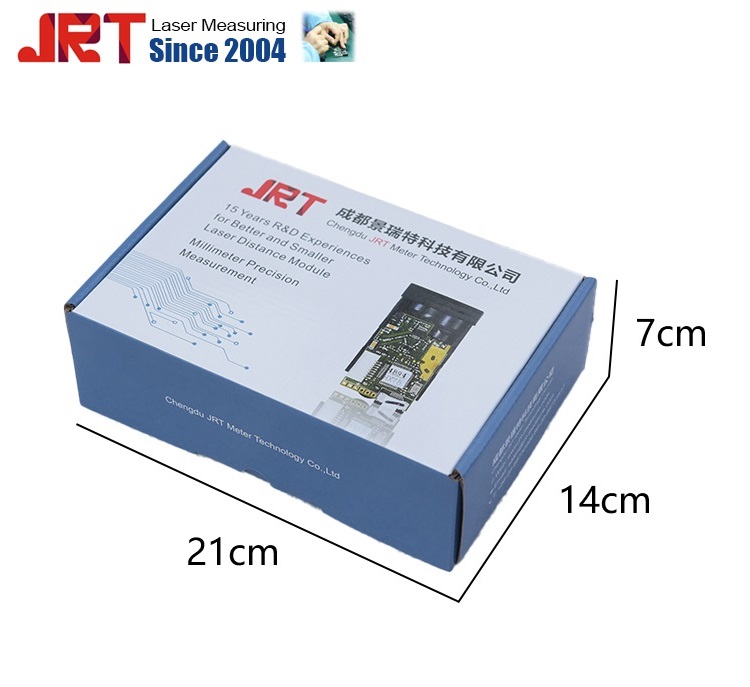

Packaging
Chengdu JRT Main Smart Devices: Industrial Laser Distance Sensors, Rangefinder Sensor , Tof LiDAR Sensors, Measuring Tool Instruments.
