1. Definition and Function
• Definition: AManual Control Pilot Valveis a valve operated manually (e.g., via a handle, knob, or lever) to control a pilot signal (such as hydraulic pressure, pneumatic pressure, or mechanical force), which indirectly drives a main valve or other actuators.
• Functions:
• Signal Control: Converts manual operation into a smaller pilot signal (e.g., hydraulic oil or pneumatic pressure) to control the opening/closing or adjustment of the main valve.
• Pressure/Flow Regulation: Regulates the output pressure or flow of the main valve in hydraulic or pneumatic systems via the pilot signal.
• Safety and Redundancy: Provides manual backup control when automated systems fail.
------
2. Working Principle
• Manual Operation: The user applies force via a handle, knob, or lever.
• Signal Conversion: The manual force is converted into a pilot signal (e.g., hydraulic or pneumatic pressure).
• Main Valve Control: The pilot signal drives the spool of the main valve to control its output (e.g., pressure, flow, or direction).
• Example:
• In hydraulic systems, a manual control pilot valve directs hydraulic oil through small orifices to the pilot chamber of the main valve, pushing its spool to control the flow direction of high-pressure hydraulic oil.
------
3. Applications
• Construction Machinery:
• Used in hydraulic systems of excavators, loaders, etc., to control movements such as arm extension, bucket operation, and slewing.
• Industrial Automation:
• Controls pneumatic or hydraulic actuators in automated production lines requiring manual intervention.
• Aerospace and Marine:
• Serves as manual backup controls for hydraulic or pneumatic systems.
• Agricultural Machinery:
• Controls hydraulic systems in tractors, harvesters, etc.
------

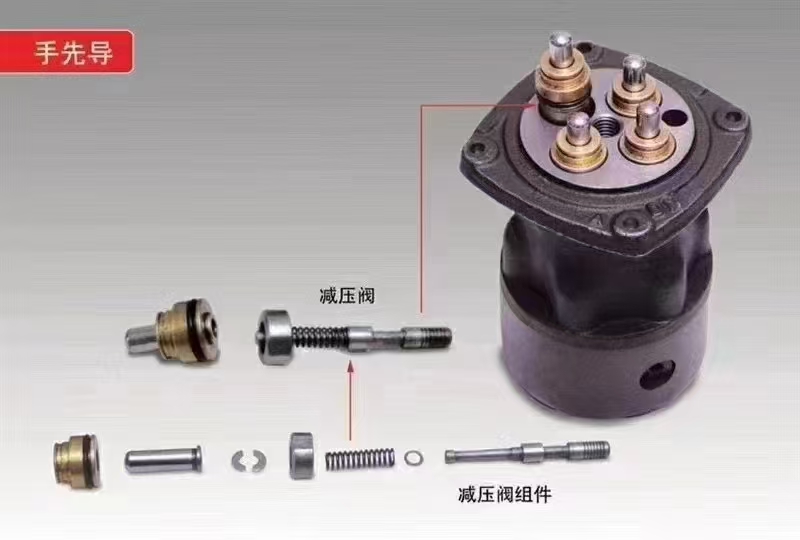

4. Structure and Types
• Components:
• Manual Operation Parts: Handles, knobs, levers, etc.
• Pilot Valve Body: Includes spools, springs, seals, etc.
• Ports: Pilot signal ports (e.g., hydraulic, pneumatic) and main valve control ports.
• Types:
• Manual Hydraulic Pilot Valve: Controls hydraulic pilot signals in hydraulic systems.
• Manual Pneumatic Pilot Valve: Controls pneumatic pilot signals in pneumatic systems.
• Solenoid-Manual Hybrid Pilot Valve: Combines solenoid and manual control functions.
------
5. Advantages and Disadvantages
• Advantages:
• Simple and Reliable: Direct manual operation without complex circuits or automation.
• Low Cost: Simple structure with low maintenance costs.
• Safety Backup: Provides manual control when automated systems fail.
• Disadvantages:
• Limited Operating Force: Manual operation force is insufficient for systems requiring large pilot signals.
• Slower Response: Slower response compared to automated controls.
• Limited Precision: Manual control struggles to achieve high-precision adjustments.
------
6. Case Studies
• Case 1: Hydraulic System in Excavators
• Problem: How to manually control arm and bucket movements when automated control fails?
• Solution: Use a manual control pilot valve with a handle to control hydraulic pilot signals, driving the main valve to control hydraulic cylinders for the arm and bucket.
• Case 2: Pneumatic Actuators in Industrial Automation
• Problem: How to implement manual backup control for pneumatic actuators?
• Solution: Install a manual pneumatic pilot valve with a knob to control pneumatic pilot signals, driving the main valve to control pneumatic actuators.
------
7. Maintenance and Care
• Regular Inspection:
• Check manual operation parts for flexibility and jamming.
• Inspect seals for aging or damage.
• Cleaning and Lubrication:
• Clean the valve body surface to prevent impurity ingress.
• Lubricate moving parts appropriately.
• Troubleshooting:
• If no pilot signal is output, check for stuck spools or damaged seals.
• If the main valve does not respond, check for clogged or leaking pilot signal ports.
------
8. Summary
AManual Control Pilot Valveis a valve operated manually to control pilot signals, widely used in construction machinery, industrial automation, aerospace, and other fields. Its simple structure, low cost, and high reliability make it suitable for scenarios requiring manual backup control or simple operation. However, the limitations of manual operation (e.g., limited force, slower response) must be considered in practical applications. Through proper maintenance and care, manual control pilot valves can operate reliably for extended periods, providing dependable manual control functions for systems.
