1000m Infrared Sensor For Distance Measurement UART
Are you looking for 1000 meters Infrared Sensor For Distance Measurement? Great! The long distance laser sensor is JRT new model capable of ranging 1 km. The long rangefinder modules can be used for any number of applications including night-vision equipment range finding, UAV height detection & position, and Maritime patrol obstacle avoidance etc. How about your project requirements? If you are interested in purchasing a unit for your project that you are working on, welcome to contact us.
Some FAQs may help you:
Q: Does it have UART-TTL interface?
A: Yes, the long range distance measurement sensor supports RX TX port. Customers can use it to connect with MCU etc. dashboard.
Q: What's the blind area in meters?
A: The minimum ranging distance of the PTYS-10X laser measure sensor is 3m.

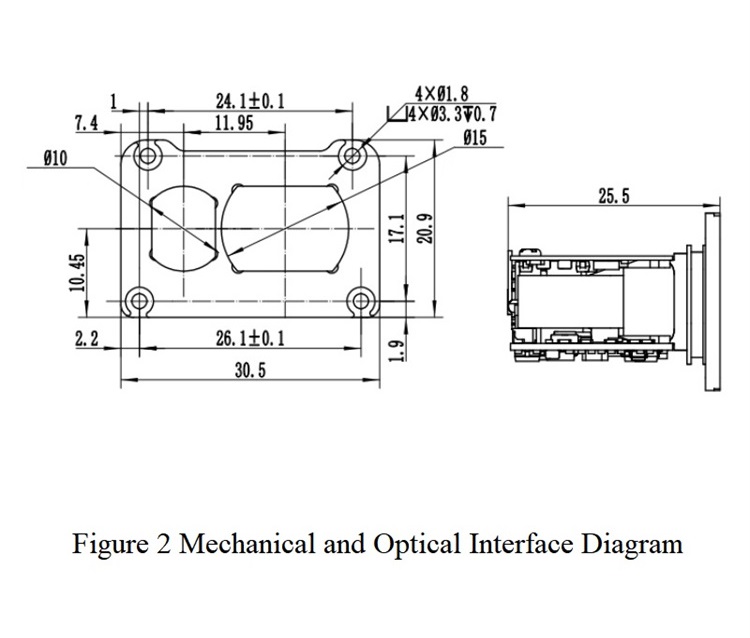

Machinical Dimensions
Technical Parameters:
1. The main performance indicators are as follows:
a) Working wavelength: 905nm ± 5nm at 25℃;
b) Ranging capability: ≥ 1000m (large target, reflectivity 0.3, relative humidity 60%, visibility ≥ 10Km);
c) Minimum ranging distance: ≤ 3m;
d) Accuracy: ≤ ±1m (≤ 300m), ≤ ±2m (> 300m);
e) Precision rate: ≥ 98%;
f) Ranging frequency: single shot, 1Hz;
g) Stray light: ≤ 10°.
2. Environmental Adaptability:
a) Operating Temperature: -20℃ to 60℃ (-30℃ test verified);
b) Storage Temperature: -35(±2)℃ to 75(±2)℃ (verified in the trial production batch);
c) Shock: The module is subjected to a half-sine wave pulse with a peak acceleration of 1000G along the center of the optical axis for 0.5ms each time, for a total of 20 times. The change in the optical axis of the module is ≤ 0.3 mil (tested with the complete machine);
d) Water and Dust Resistance: The module is fixed at the tail of the fixture and inflated with an air pressure of 35kpa. The leakage rate is ≤ ±0.4 sccm;
e) Environmental Protection: Complies with RoHS 2.0 requirements (reports provided for the trial production batch and the first batch of mass production, and subsequently provided at the frequency requested by the customer);
f) Safety Regulations: Complies with Class 1 in IEC:60825-1 (reports provided for the trial production batch and the first batch of mass production, and subsequently provided at the frequency requested by the customer);
g) Vibration Test (verified in the trial production batch): The module is subjected to vibration under specified random vibration conditions for 10 minutes in each of the three directions. The module remains secure and meets all specification requirements;
h) Drop Test (verified in the trial production batch): The lens, packaged as per the sample, is dropped freely from a height of 1.0 meter above a wooden floor, with each corner, edge, and face dropped 5 times. The lens remains secure and meets all specification requirements.
3. Physical Characters

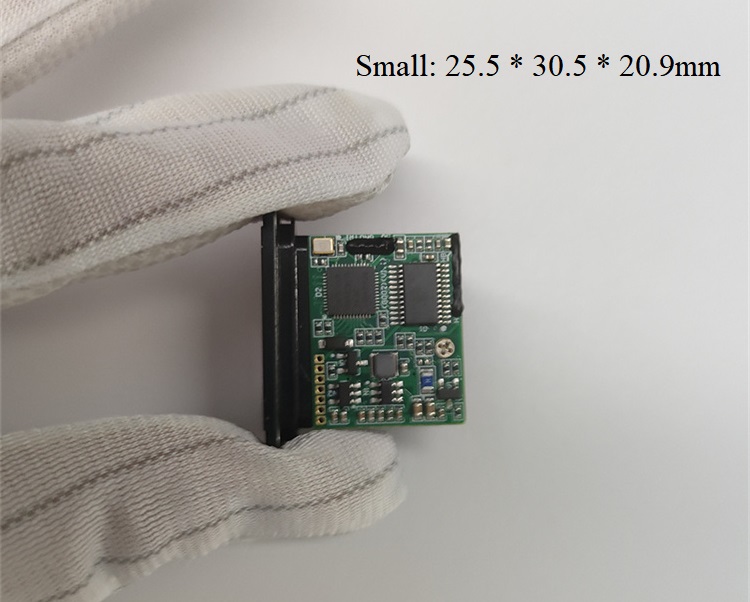

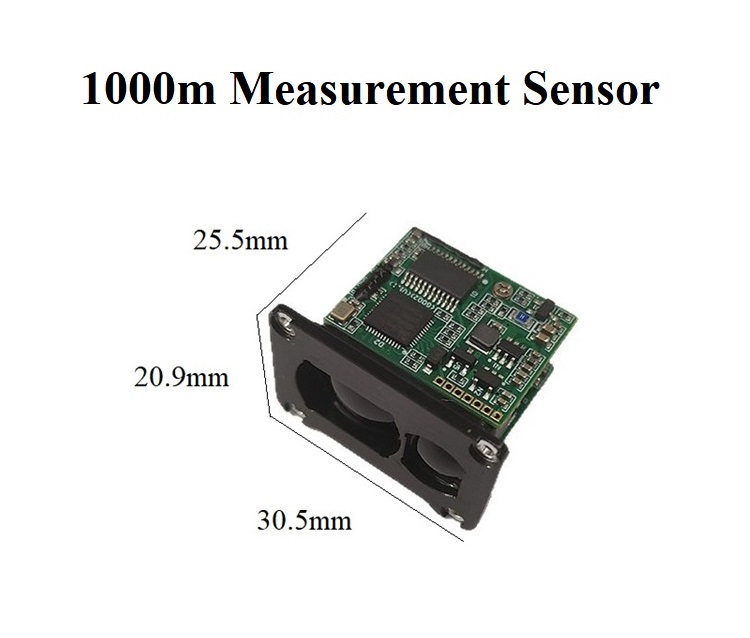

Dimensions: 25.5mm × 30.5mm × 20.9mm (L × W × H)
Weight: ≤ 14.5g
4. Electrical interface requirements are as follows:
a) Power supply voltage: 3.3V;
b) Communication type: UART-TTL (3.3V);
c) Startup peak current: ≤ 680mA at 560us;
d) Standby power consumption: ≤ 0.6W;
e) Average power consumption: ≤ 0.8W;
f) Peak power consumption for distance measurement: ≤ 1.35W;
g) Leakage current: < 100uA;
h) Power-on distance measurement response time: ≤ 100ms;
5. Data
a) Single-byte transmission format: It includes 1 start bit, 8 data bits, no parity, 1 stop bit, and the 8-bit data is transmitted with the lower bits first and the higher bits later.
b) Baud rate: 115200 bps.
c) Communication interface: UART-TTL (3.3V).

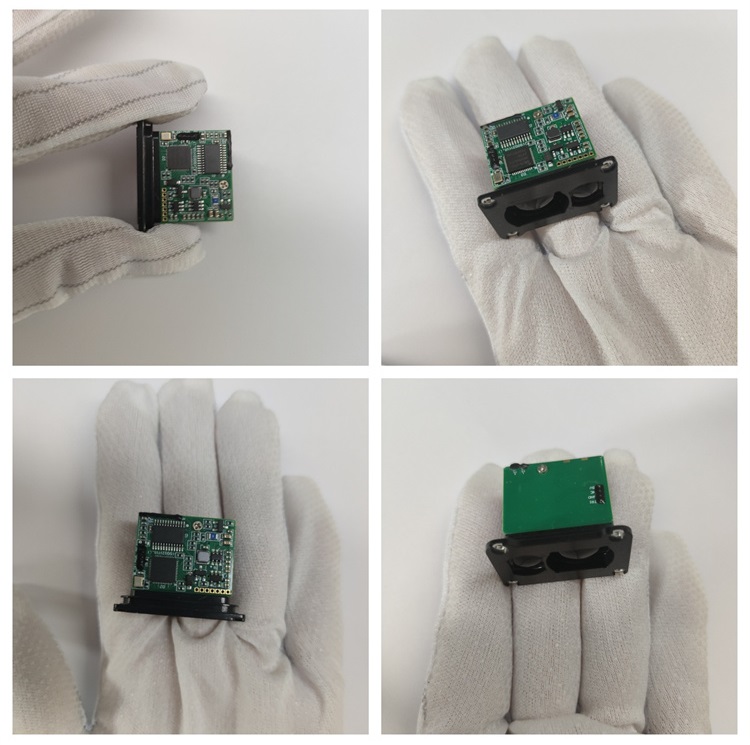

More detailed picture

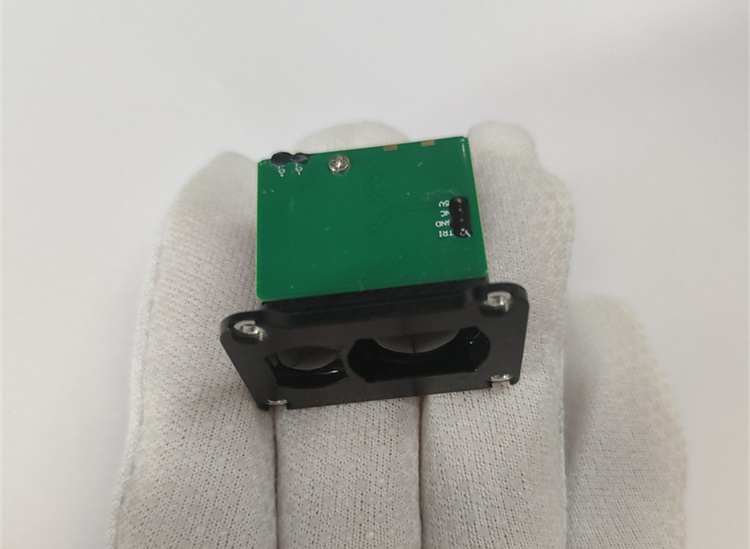

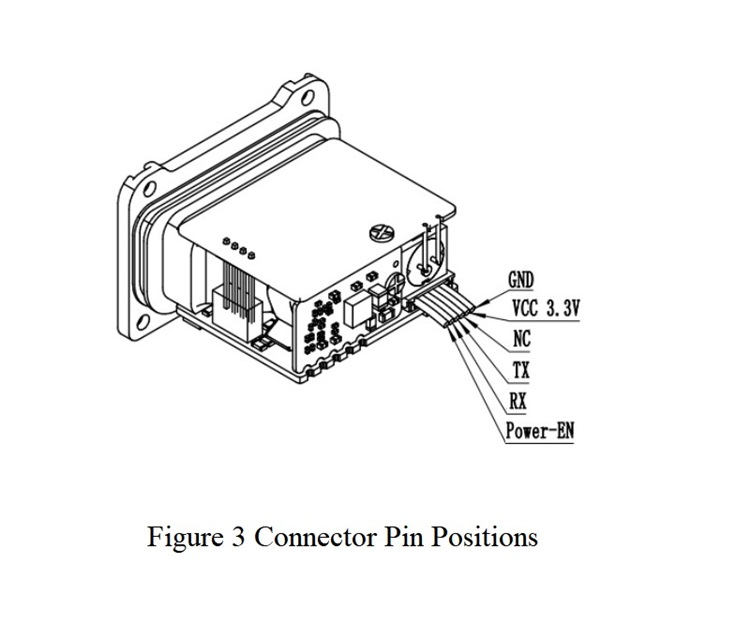

Close Pins Picture
Applications
This Industrial laser range sensor can be widely used in agricultural forestry, drone height determination, electricity/power inspection, safety supervision, urban management, security, fire protection, geological exploration etc.
Chengdu JRT Main Smart Devices: Industrial Laser Distance Sensors, Rangefinder Sensor , Tof LiDAR Sensors, Measuring Tool Instruments.
