Specifications of c9 cylinder liner:
MAHLE NO:127LW9120800
Outer Diameter: 114.3mm.
Inner Diameter: 112mm.
Flange Length: 235mm.
Flange Thickness: 6mm
Type : 6mm.
Wall Thickness : 1.15mm
Material: chromium, molybdenum, and nickel

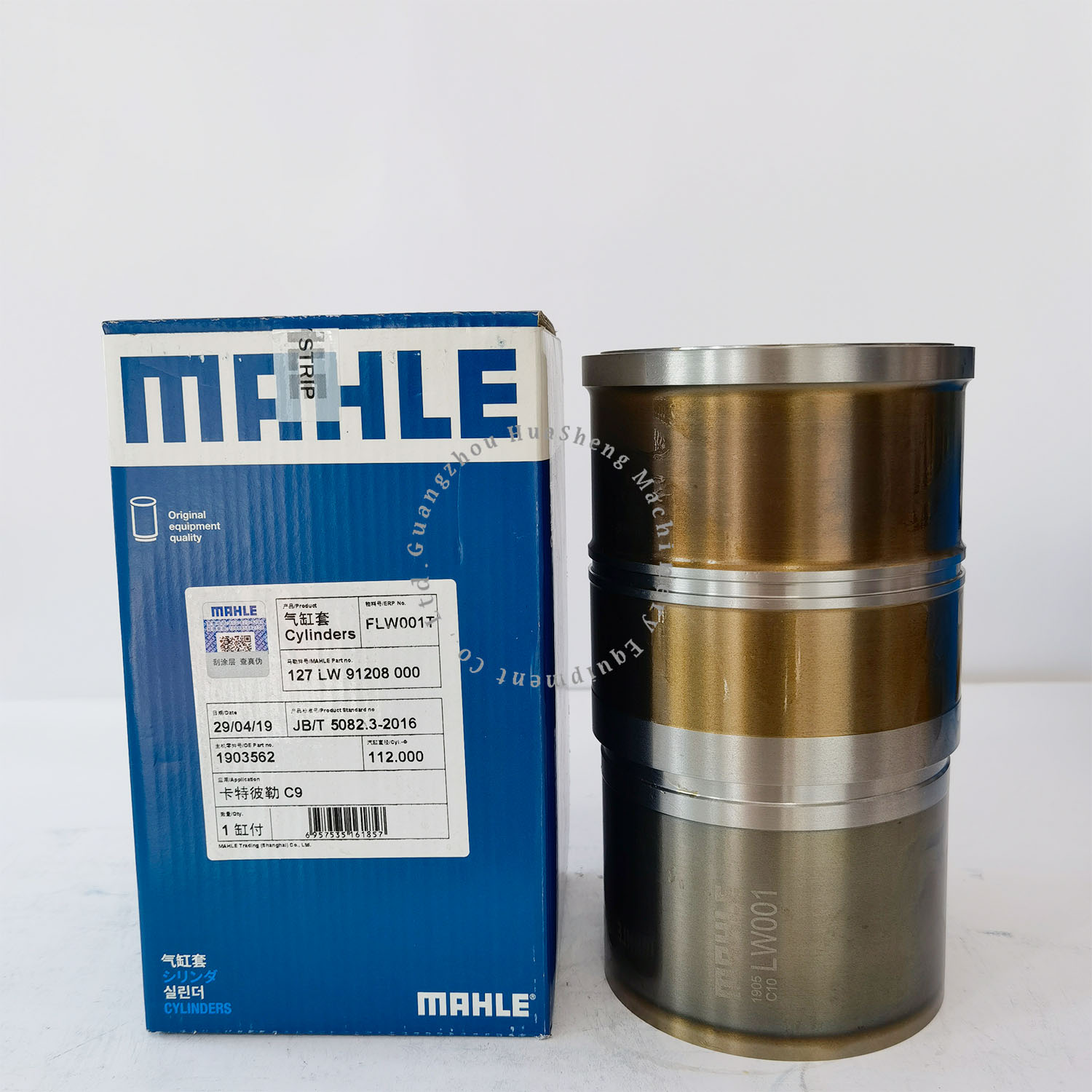

This mahle c9 cylinder liner is produced from alloyed cast iron. It includes a precision-machined flange top. The 1903562 liner undergoes centrifugal casting and is induction hardened and honed. The honing process ensures superior oil retention, minimizing wear on the piston skirt and rings. This cylinder liner is semi-finished which requires final machining.
This c9 cylinder is compatible with 330c hydraulic excavator, 345C L excavator, D6R Series II Track-Type Tractor, 966G Series II Wheel Loader, M322C Wheeled Excavator.
Other Caterpillar C9 engine parts:
Piston , part number: 1979332
Piston ring, part number: 1982562
caterpillar c9 Valve Intake
We also offer a wide range of other Mahle products with a minimum order quantity of just 1 piece.
