DOOSAN DB58 PISTON

3 month ago
17 0
Product details

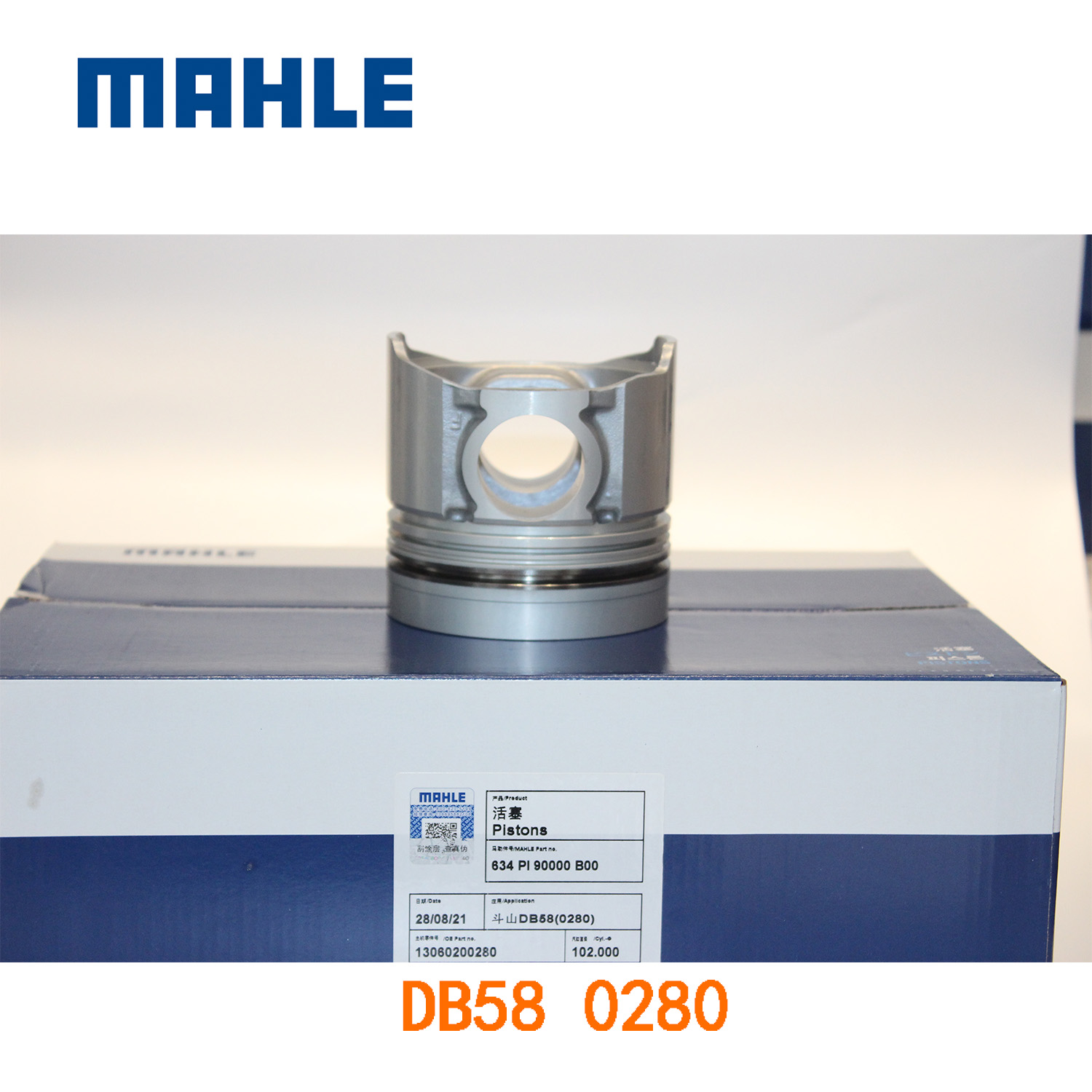

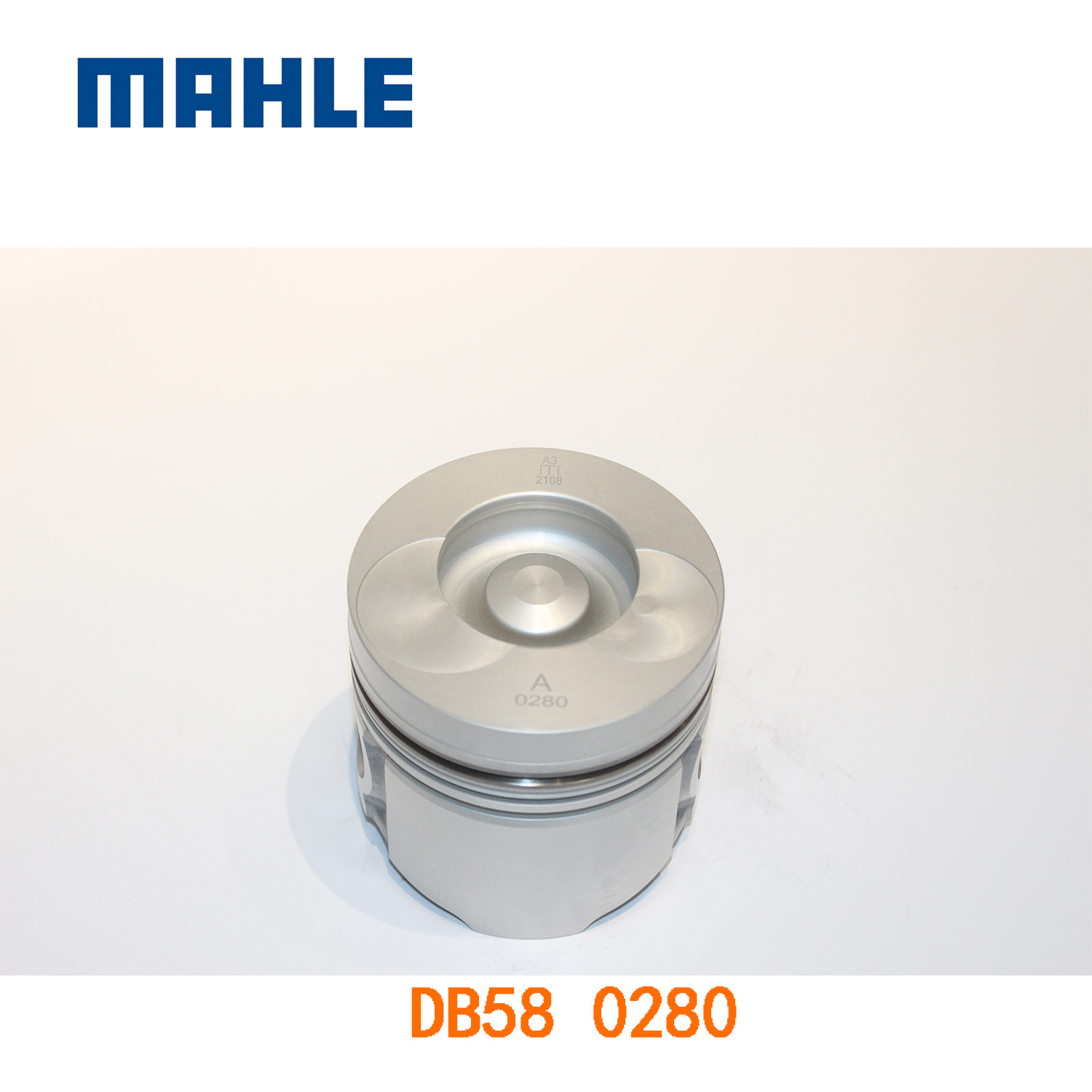

65.02501-0280 DOOSAN DB58 PISTON MAHLE 54MM CHAMBER DH220-5


65.02501-0280 MAHLE piston is designed specifically for doosan DB58 diesel engine. This  65.02501-0280 piston is commonly used in DOOSAN DAEWOO DH225-7, DH220-5, DH225-5 excavator. The diameter is 102mm. 65.02501-0280 piston total height is 98mm. Al-fin.this DB58 piston has round 54mm combustion chamber. piston ring groove is 3*2.5*4mm. piston pin diameter is 36*86mm.  It can used with 65.02503-8058 piston ring set and DB58 overhaul gasket kit.
DB58 0280 (1)default name

OTHER MAHLE ENGINE PARTS FOR KOMATSU 6D95 ENGINE:
6D95 CYLINDER LINER - 6207-21-2210
6D95 OVERHAUL GASKET KIT - 6207-K1-9900
S6D95 VALVE IN - 6209-41-4110
S6D95 VALVE EX - 6209-41-4210
S6D95 MAIN BEARING - 6204-21-8100
S6D95 CONNECTING ROD BEARING 6207-31-3300
S6D95 PISTON RING - 6207-31-2501
S6D95L PISTON RING - 6204-31-2203
6D95 VALVE GUIDE - 6204-19-1310
6D95 SEAT IN - 6209-11-1430
6D95 SEAT EX - 6207-11-1440
6D95 TURBOCHARGER - 6207-81-8210
6D95 TURBOCHARGER - 6209-81-8311
