4000m Compact Binoculars Sensor Measurement Module

3 month ago
17 0
Product details

10km LiDAR Hunting Range Finders Sensor RS422

Are you looking for a LiDAR range finder sensor solution to measure the quantity of multiple unmanned aircraft targets? With 10000 m of range measurement ability, it's suitable for using is in outdoor and monitoring the height of drone. If the target is human, the measure ranging can be up to 5100m. If you hope to know more product infos and have a good cooperation with our company, please contact us.

rangefinder hunting

Frequently Asked Questions:

Q1: Hello, what is the range of this rangefinder module? Can you provide me with the exact pictures? I need a sample first.

A1: The ETYS-10KX is a long range sensor can measure up to 10000 metres. For exact pictures, please see the following particulars, thanks.

Q2: I would like to buy the range finders sensor. What is the interface? The sensor is designed to measure the height of UAS (unmanned aircraft system) for collision avoidance.

A2: Its output is rs422. Can you provide more information of your project? That will be helpful for product selection.

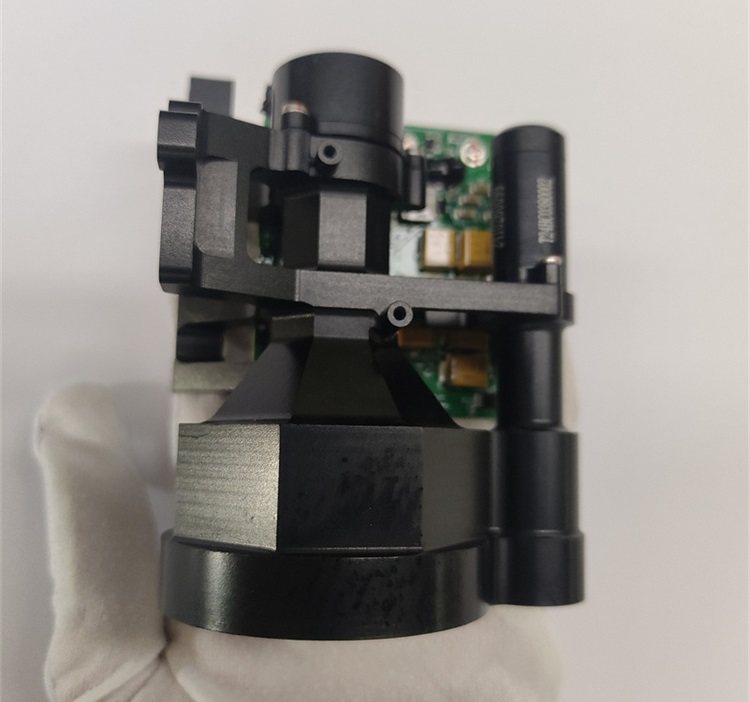

laser range finder sensor

Technical Parameters:

Working wavelength: 1535nm ± 10nm
2 Eye-safe level: Class Ⅰ
3 Transmitting aperture: Φ15.2mm
4 Receiving aperture: Φ47.2mm
5 Baud rate: 38400bps (default)/9600bps/57600bps/115200bps
6 Range measurement capability:
≥ 13200m (typical reference value for large targets)
≥ 10200m (2.3m × 4.6m standard target plate or equivalent target)
≥ 6400 * (person)
7 Range measurement blind area: ≤ 50m
8 Range measurement accuracy: ± 2m (optional ± 1m)
9 Precise measurement rate: ≥ 98%
10 False alarm rate: ≤ 2%
11 Range measurement frequency: single shot, 1Hz, 5Hz
12 Electrical isolation: Power ground, communication ground and structural ground are isolated

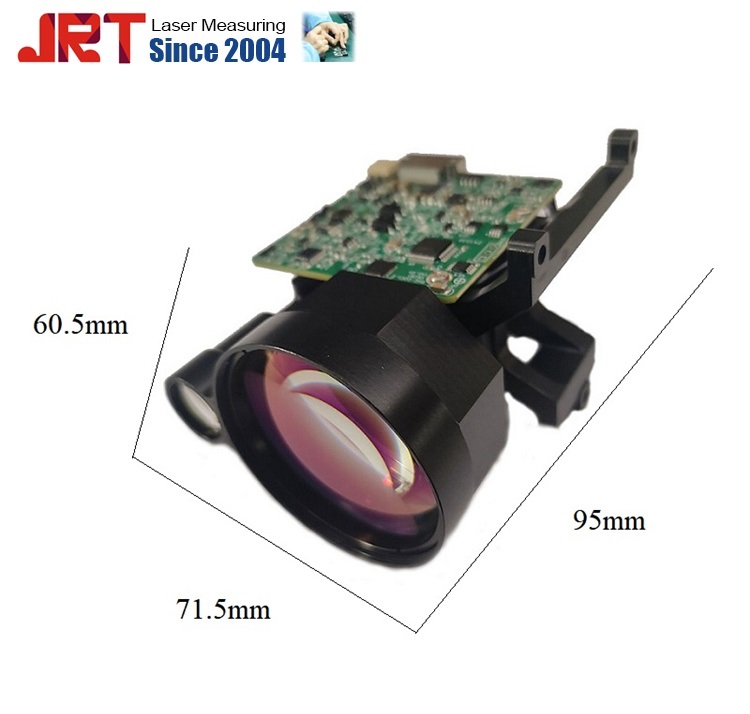

LiDAR range finder

Physical characteristics
Weight: ≤ 230g

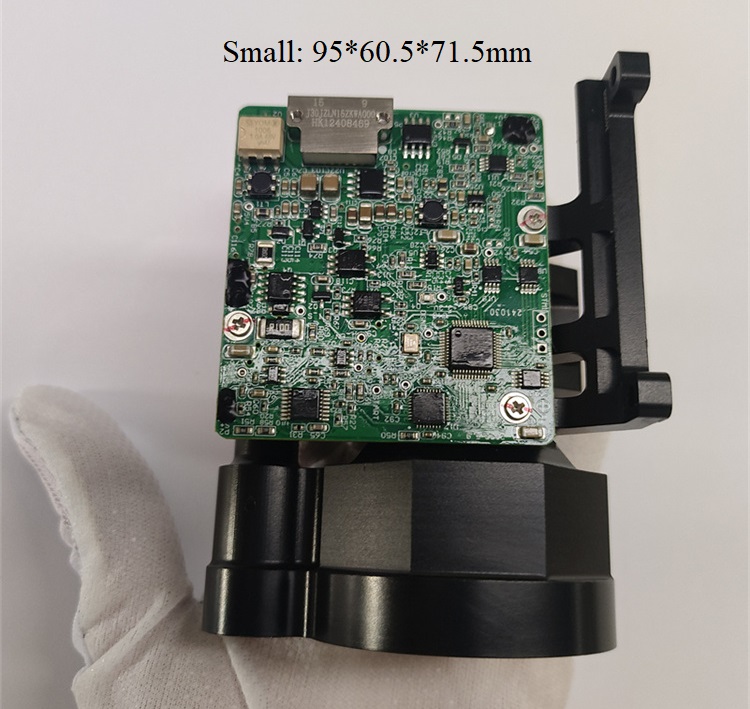

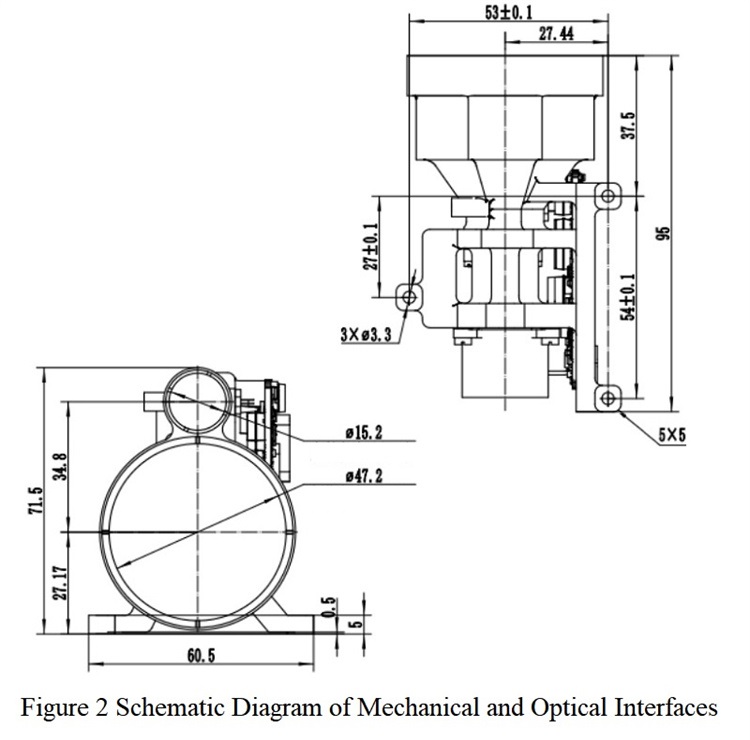

13 Dimensions: ≤ 95mm × 60.5mm × 71.5mm

Communication interface & Electrical
Electrical interface: Connector socket: J30JZLN15ZKWA000
Connector plug: J30JZ/XN15TJCAL01
Power supply voltage: 18V ~ 36V
Standby power consumption: ≤ 1.6W
Average power consumption: ≤ 1.8W
Peak power consumption: ≤ 4.5W

Environmental conditions
Operating temperature: -40℃ ~ 60℃ (defense grade)
Storage temperature: -55℃ ~ 70℃ (defense grade)

lidar range finder sensor

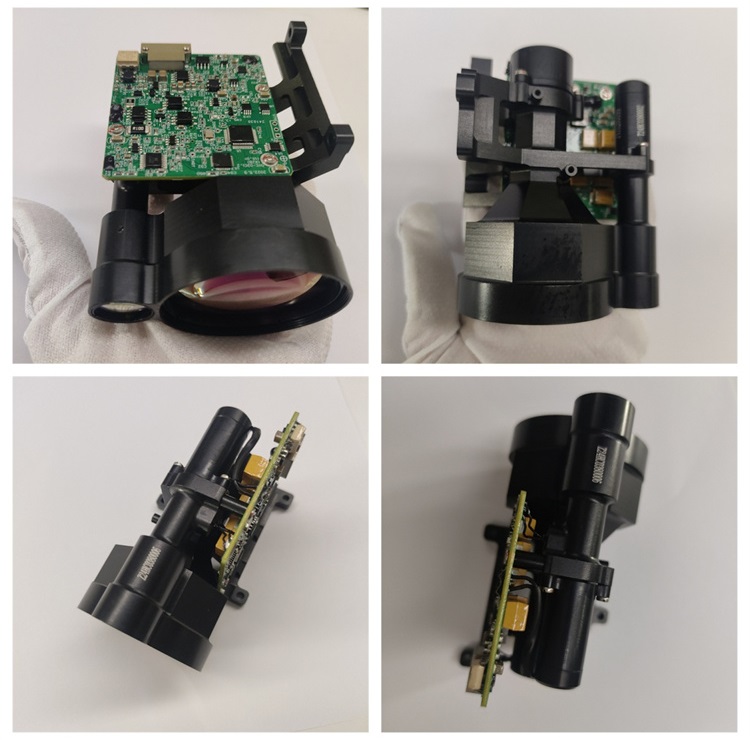

Front & Back

10km Range Findersrange finder sensor 10km

Applications

This Industrial Laser Range Sensor can be widely used in agricultural forestry, electricity/power inspection, safety supervision, urban management, security, fire protection, geological exploration etc.

long range laser distance sensor arduino

Packaging

long distance sensor arduino

Chengdu JRT Main Smart Devices: Industrial Laser Distance SensorsRangefinder Sensor Tof LiDAR SensorsMeasuring Tool Instruments.
