BSC-H military standard grade heat shrink marking tube

Product Introduction

BSC-H military standard grade heat shrinkable marking tubes are made of radiation cross-linked polyolefin materials. Their core function is to mark the cable interfaces of signal and power systems, and they are widely used in fields such as communications, automobiles, ships, spacecraft, aircraft, and outside nuclear power islands.

Product features

Execution standard: Complies with Class 1 and Class 3 standards in military AMS-DTL-23053/5

Color code fastness: Complies with SAE AS 81531 and MIL-STD-202G/215K standards

Heat shrinkage performance: Heat shrinkage ratio 2:1; The shrinkage temperature is ≥85℃, and the full shrinkage temperature is ≥115℃

Temperature resistance range: Operating temperature -55 ℃ to +135℃, suitable for complex environments

Environmental compliance: Complies with RoHS environmental protection standards

Color selection: 10 standard colors are available and customization is supported

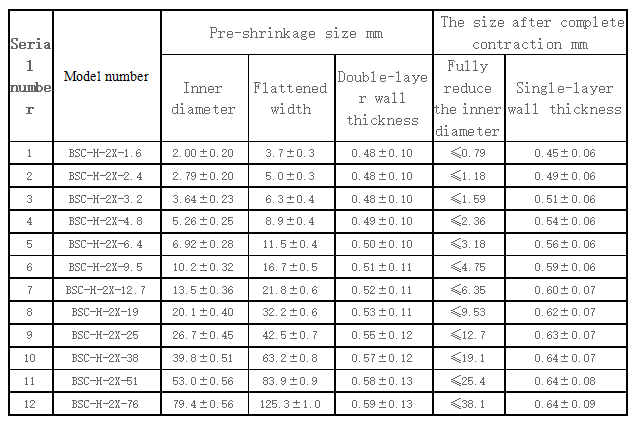

Technical Specifications of BSC-H Military Standard Grade Heat shrink Marking Tube

BSC-H-2X military standard grade heat shrink marking tube
