DYF low smoke high Flame retardant heat shrink marking sleeve

Product Description

Made of radiation cross-linked polyolefin materials, it features excellent physical, chemical and electrical properties, and can operate reliably and persistently in special environments. It is mainly used for cable interface identification in signal and power systems, and its applications cover numerous fields such as rail transit, communication, precision instruments, automobiles, and ships.

Main features

Comply with ASTM D 2671 standard

The color code firmness complies with SAE AS 81531 and MIL-STD-202G/215K standards

The heat shrinkage ratio is 3:1, featuring UV resistance, softness and flame retardancy. Shrinkage ≥85℃, final shrinkage ≥115℃

The fire protection and smoke index comply with the NF F16-101 standard

Applicable temperature range: -55 ℃ to + 125℃

The environmental protection grade is Class H material, meeting the IPC/JEDEC-J-STD-709 standard

The standard colors are yellow and white

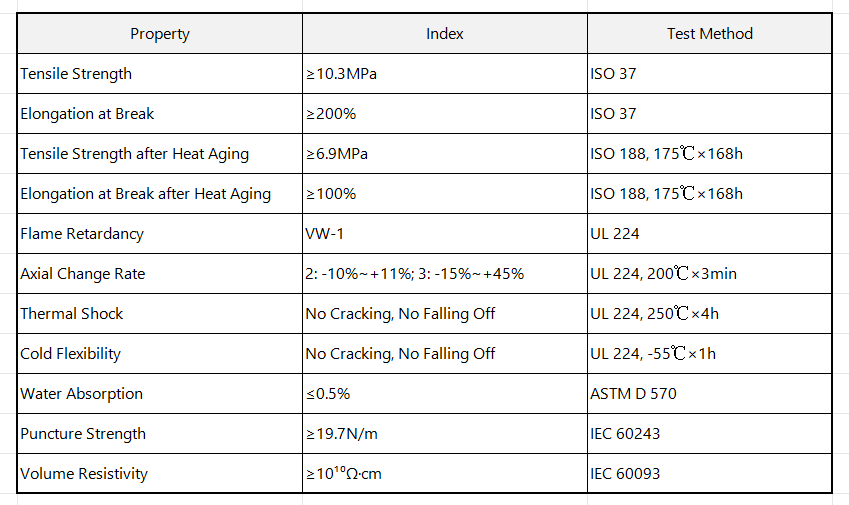

Technical specifications of DYF Low Smoke High Flame Retardant Heat Shrink Marking Sleeve

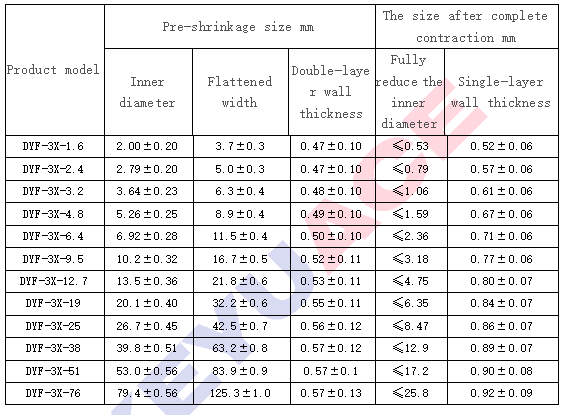

DYF-3X (Three times uniform wall thickness)
