High flame retardant braided sleeving

4 week ago
5 0
Product details

KY-PET/HFR High Flame-Retardant Braided Mesh Tube

【Product Overview】

Made from PET monofilaments with UL94 V0 - grade raw materials, this braided mesh tube delivers excellent elasticity, wear resistance, and high flame retardancy (reaching VW - 1 rating). Ideal for organizing and protecting wire harnesses in high - risk fire environments.

【Core Applications】

Widely used in industries demanding strict flame - retardant performance:

  • Transportation: Railways, automobiles, high - speed rails, aviation (wire harness protection in engines, cabins).
  • Electrical Engineering: Switch cabinets, power distribution systems (cable insulation and flame - retardant protection).

【Technical Specifications】

  • Material: Polyester (PET)
  • Working Temperature Range: Operates stably from -50℃ to 150℃, suitable for diverse environmental conditions.
  • Melting Point: 240±10℃, ensuring high - temperature resistance during use.
  • Flame - Retardant Performance: Achieves VW - 1 rating, manufactured with UL94 V0 - grade raw materials for reliable fire safety.
  • Color Options: Standard colors are Black and Gray; customization available to meet specific project aesthetic or identification needs.
  • Certifications: Complies with UL, ROHS, REACH, and Halogen - Free standards, meeting global regulatory and environmental requirements.
  • Recommended Cutting Tool: Hot Cutter, for clean and efficient cutting to desired lengths.

【Dimension & Sizing】

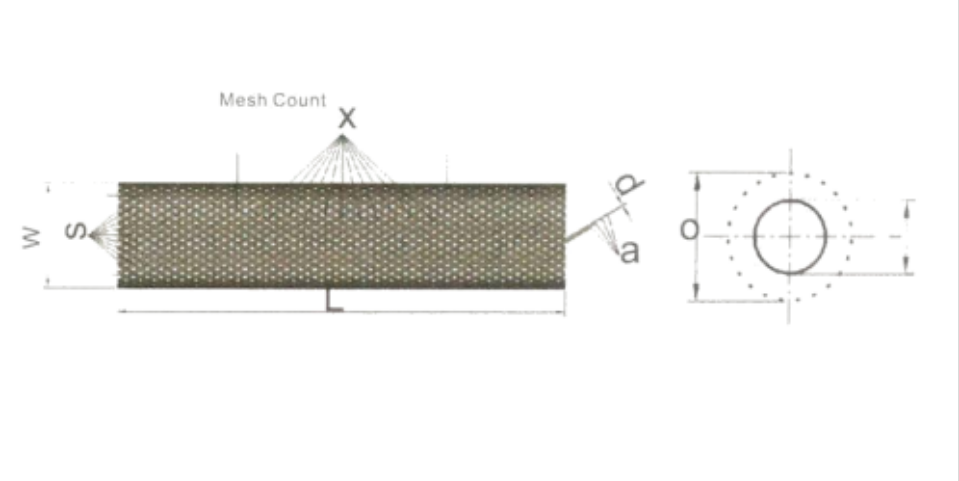

Dimension Drawing:
KY-PET/HFR
Shows key structural details (width, diameter, mesh design).

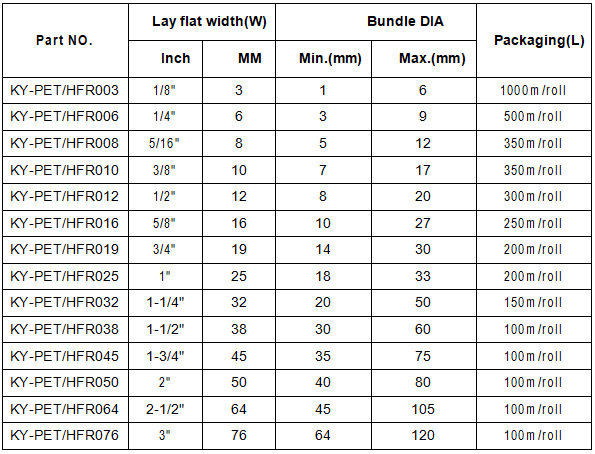

Specifications :
KY-PET/HFR
Multiple models available (e.g., KY - PET/HFR003: 1/8″ (3mm) lay - flat width, 1 - 6mm bundle diameter, 1000m/roll).

【Why Choose Us?】

  1. Quality Assurance: ISO9001/ISO4001 certified factory; products meet ROHS, REACH, UL standards.
  2. Rigorous Testing: 100% inspection with 4 - step quality checks; 1 - year warranty + after - sales support.
  3. Customization Flexibility: Special packaging, colors, and sizes available per request.

【Factory & Capabilities】

  • Manufacturing Strength :
    Factory Show
    Full - scale production lines (extrusion, expansion, irradiation) ensure stable supply.
  • Global Reach :
    Who we are
    Certification
    Company logistics
    Partnered with DHL/UPS/FedEx for fast shipping; export - ready with customs clearance support.

【Sample Policy】

  • In - stock: Shipped within 1 - 2 days.
  • Out - of - stock: Ready in 3 - 7 days (free for small quantities; freight collect).

【Product Portfolio】

Explore our full range :

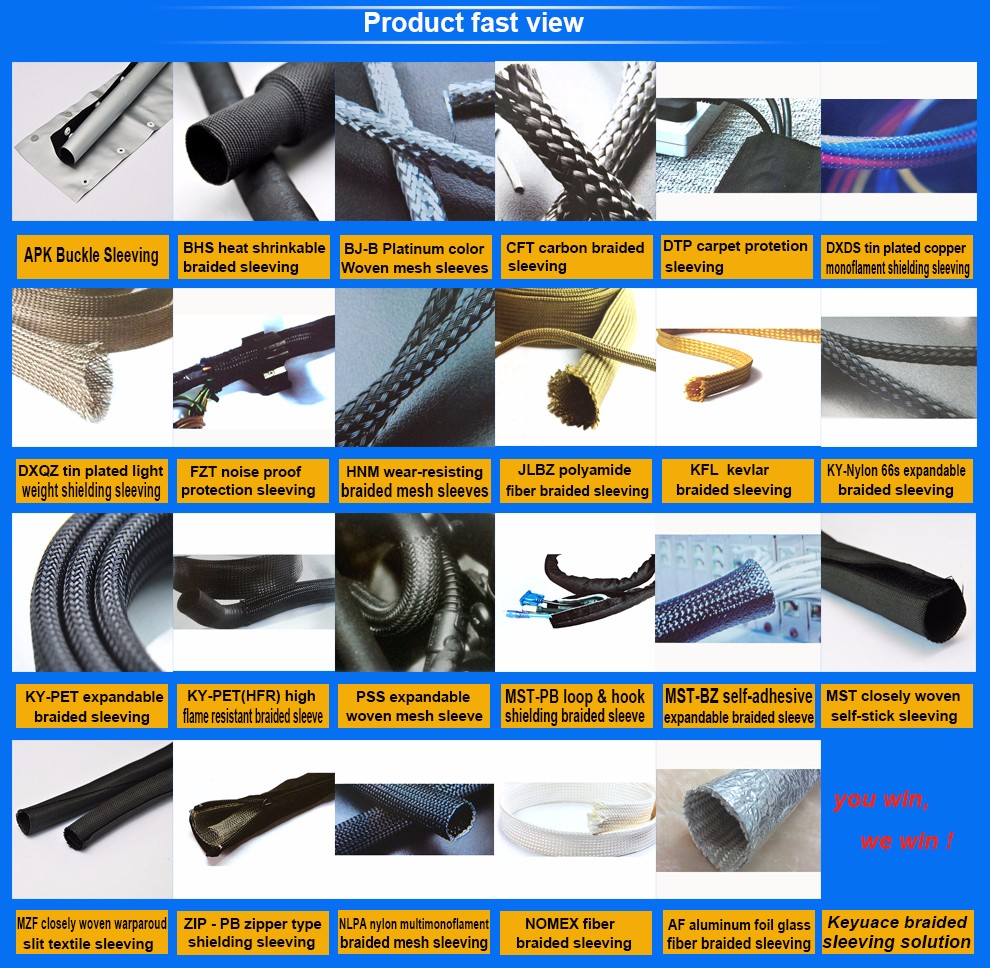

Product fast view

Braided sleeving for noise protection, heat shrinkage, and heavy - duty wear resistance—all engineered for industrial reliability.

Need a custom solution? Contact us now—we turn technical requirements into ready - to - ship products.
