Product details

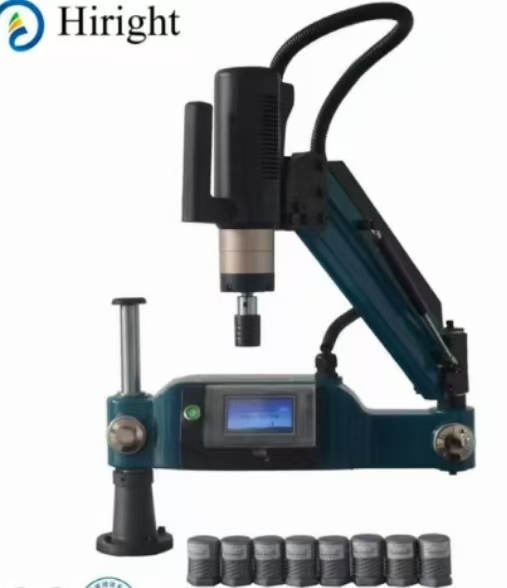

High-Right tapping machine is a kind of efficient tool which is mainly used for thread cutting, chamfering, screwing, chambering. With the robotic arm which can move back and forth, up and

down, left and right, the operating radius is big. Which breaks the limitation of the lathe, drilling

and on space a lathe, drill machine, boring machine and other traditional equipment on space. When it comes to screw cutting, using tap orientation, being perpendicular to the working

surface all the time, no tension and pressure, and being in a floating state ensures the precise

geometry of the thread. When used in cooperate with the mobile workbench for thread

cutting in large workpiece, complex workpiece, the lacunose workpiece has the incomparable

advantage: flexible, high repetitive positioning, high accuracy. Advantages

●As the CNC equipment partner ,it can become the auxiliary working table .Let operating

workers waiting time become productive,Make CNC free from “ tapping ” , “ chamfering ”

tedious work,greatly improving the CNC and operation efficiency of the workers. ●The ergonomic design, the operation is simple,comfortable,reduce the feeling of fatigued . ● When working, do not produce

tension and pressure,running free and flexible,the balance is accurate and in place. ● Adjust the speed of the motor at unlimited segment, combined with barrel entrained overload

protection device, so the damage is small, high

precision of thread,overload operation and will not damage motor. ● Heavier workpiece don’t need positioning or lip,loading the universal head makes it ok . ● The machine equipped with a pendulum Angle head ,can be placed to four 90 angle position , so that can achieve horizontal and vertical direction tapping , the

horizontal tapping easily suitable for long shaft class with two face tapping, more suitable for

large workpiece ,need not move back and forth the workpiece . ● Use 220V ac servo motor ,touch display screen ,set torsion output digital control speed , positi

on can be controlled , the parameter can be set in precision to control the tapping depth . Quick-change safe tap chuck

Configuring torque overload safety tap collet, when the tap collet which is equipped with clutch

tapes the blind hole or torque exceeds the torque of tap, clutch will throw-off automatically in

order to protect the tap from broking easily. Products applicable to workpiece materials
