Introduction to ZCK Open-Type Corrugated Sleeving

1. About Us

KEYUACE Materials Co., Ltd. specializes in manufacturing heat-shrinkable materials, insulation materials, and protective tubes, with the ZCK open-type corrugated sleeving as a key product. Our solutions cater to diverse industries including automotive electronics, power, and telecommunications. Backed by years of expertise, we deliver global material solutions through sincere communication and customized services, fostering mutually beneficial partnerships.

2. Product Overview

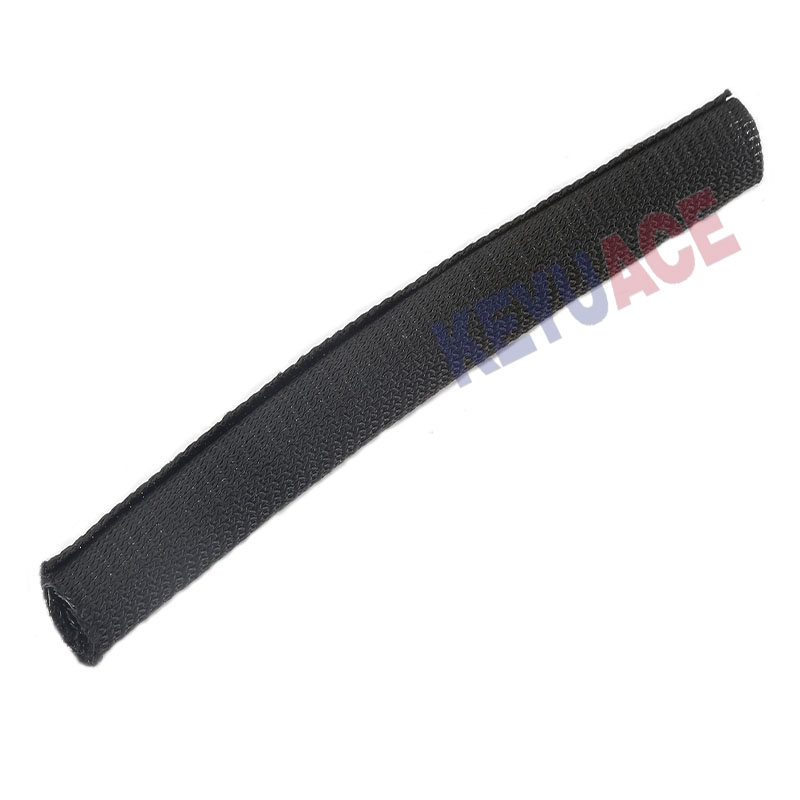

The ZCK open-type corrugated sleeving represents an innovative braided solution. Crafted from high-quality polyester multifilament and monofilament through precision braiding, it offers superior wear resistance, flame retardancy, and noise reduction. Its user-friendly design features an open structure that simplifies protection, reinstallation, maintenance, and repair of optical fiber harnesses.

3. Product Applications

Ideal for harnesses and hoses in telecommunications, high-speed rail, automotive, and automation sectors. It provides exceptional protection for wires and hoses requiring enhanced durability. Our comprehensive logistics network (express, sea, air) guarantees on-time deliveries worldwide.

4. Technical Parameters

Material: Polyester multifilament + Polyester monofilament
Operating Temperature Range: -50℃ to 150℃
Melting Point: 240 ± 10℃
Flame Retardancy Rating: UL94 V2
Standard Color: Black
Certifications: ROHS, Halogen-free (Our facility holds ISO9001 and ISO4001 certifications; products comply with ROHS, REACH, and other international standards)
Recommended Cutting Tool: Hot cutter

5. Why Choose Our Sleeving

ISO9001 & ISO4001 certified manufacturing facility
Compliance with global standards: ROHS, REACH, CSA, Halogen-free, UL, DIN5510
100% inspection with 4-stage quality control protocol
1-year quality guarantee and dedicated after-sales support

6. Production Strength

Our manufacturing plant is equipped with advanced production lines (extrusion, expansion, etc.) and implements rigorous quality management systems. We maintain strict quality control throughout the entire production process from raw material sourcing to finished product delivery.

7. Product Size Illustration

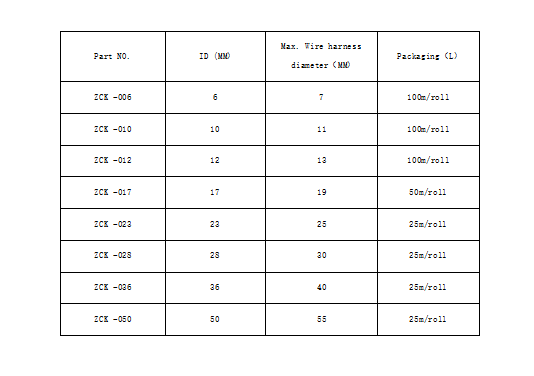

8. Product Specifications

9. Packing & Delivery

Packaging Options: Paper rolls, bags, plastic bags, cartons, or custom packaging as per requirements
Shipping Methods: Express, sea, or air freight. We ensure efficient delivery with in-stock samples shipped within 1-2 days and custom orders prepared within 3-7 days. Freight collect terms apply; please specify your preferred courier (TNT, UPS, DHL, etc.) in advance.

10. Notes

Inner diameter refers to the circular diameter of the sleeve, not the folded measurement. Custom packaging, colors, and specifications are available upon request. For detailed product parameters, please refer to the official sample approval documentation.
