Product details

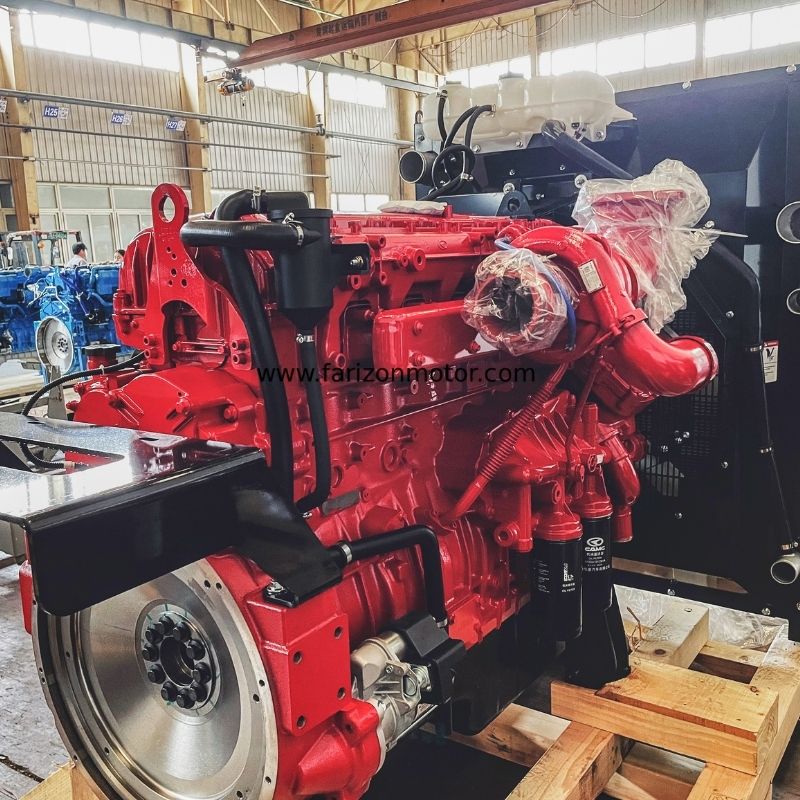

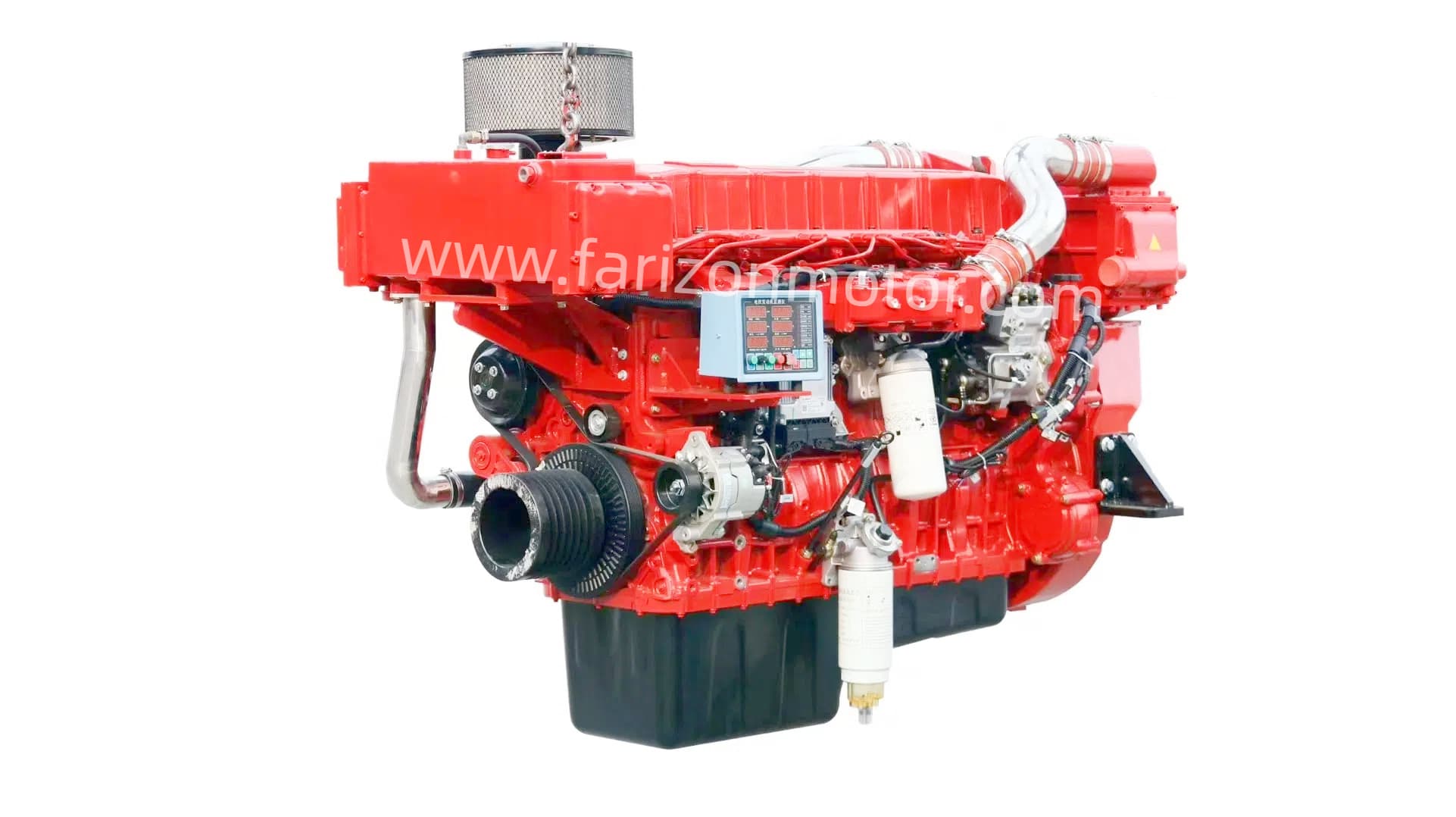

HM08F/HM09F series engines adopt the international advanced design concept: single overhead camshaft,integral cylinder head, inline,six cylinders, turbocharger,water cooled, four valves, four strokes, high power diesel engine with rear gear chamber.

The core components are imported with original packaging to ensure the reliability of the engine. The B10 life reaches 30000h.

The BOSCH high pressure common rail system, with a maximum rail pressure of up to 1600bar, enables multiple injection to be achieved, improving fuel economy and reducing combustion noise.

The components adopt modular design, the structure of which is compact for water pump,oil pump, and oil cooling and convenientmaintenance;The cylinder head adopts upper and lower double-layer cooling, and the cylinder body adopts a wet cylinder liner, which has good heat dissipation effect;The fuel filter and the oil filter adopt spinon filters for low cost maintenance.

Engine performance parameters

Model	Unit	HM08F.310 30	HM09F.350 30	HM09F.375 32
Rated power/Speed	kW/rpm	230/1500	257/1500	275/1800
Overload power/Speed	kW/rpm	253/1500	282/1500	303/1800
Number of cylinders	-	6	6	6
*BoreStroke**		110*136	112*150	112*150
Compression ratio	-	17.5:1	17.5:1	17.5:1
Displacement	L	7.8	8.9	8.9
Specific fuel consumption	g/kW·h	≤184	≤186	≤190
Oil capacity	L	29	29	29
Emission level	-	GB20891 China Phase III
*LWH*	mm	18168641398	18429031398	18429031398
Recommended Rated power	kW	200	230	250
Recommended Overload power	kW	230	250	280
