Loss-in-weight Feeder For Film Blowing Machine

Loss-in-weight Feeder For Film Blowing Machine

2 week ago

1 0

Dongguan Niasi plastics machinery Co., Ltd.

 10 month year

Product details

Gravimetric Doser

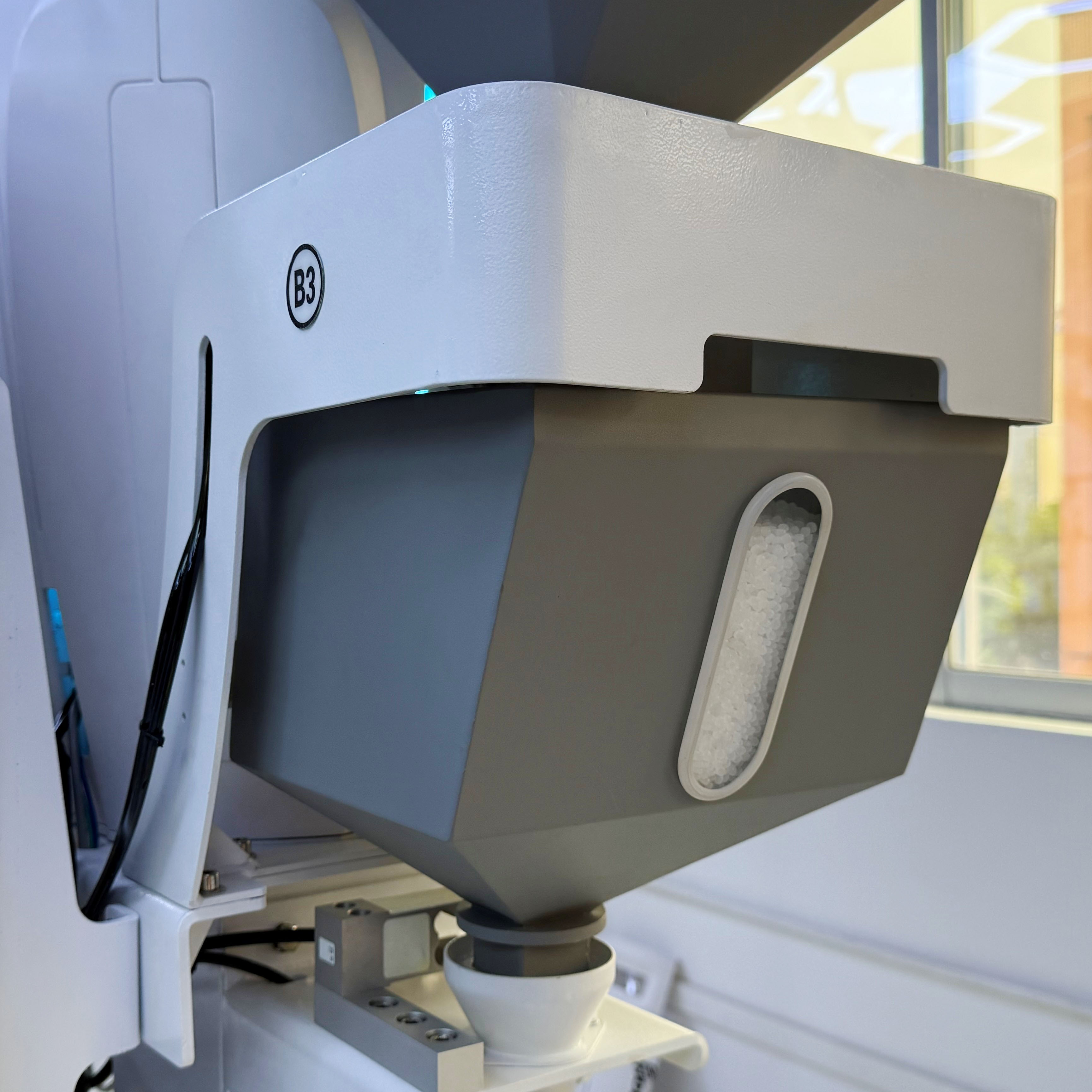

Loss-in-Weight Feeders is Economical version from D-Doser,controls the speed of the extruder by instaling sensors at the bottom of the loss-in-weight barrel, continuously measuring the weight of the bucket,and combining a high-precision line speed control system.Stable control extrusion products within 0.3% of Gramme/Thickness.

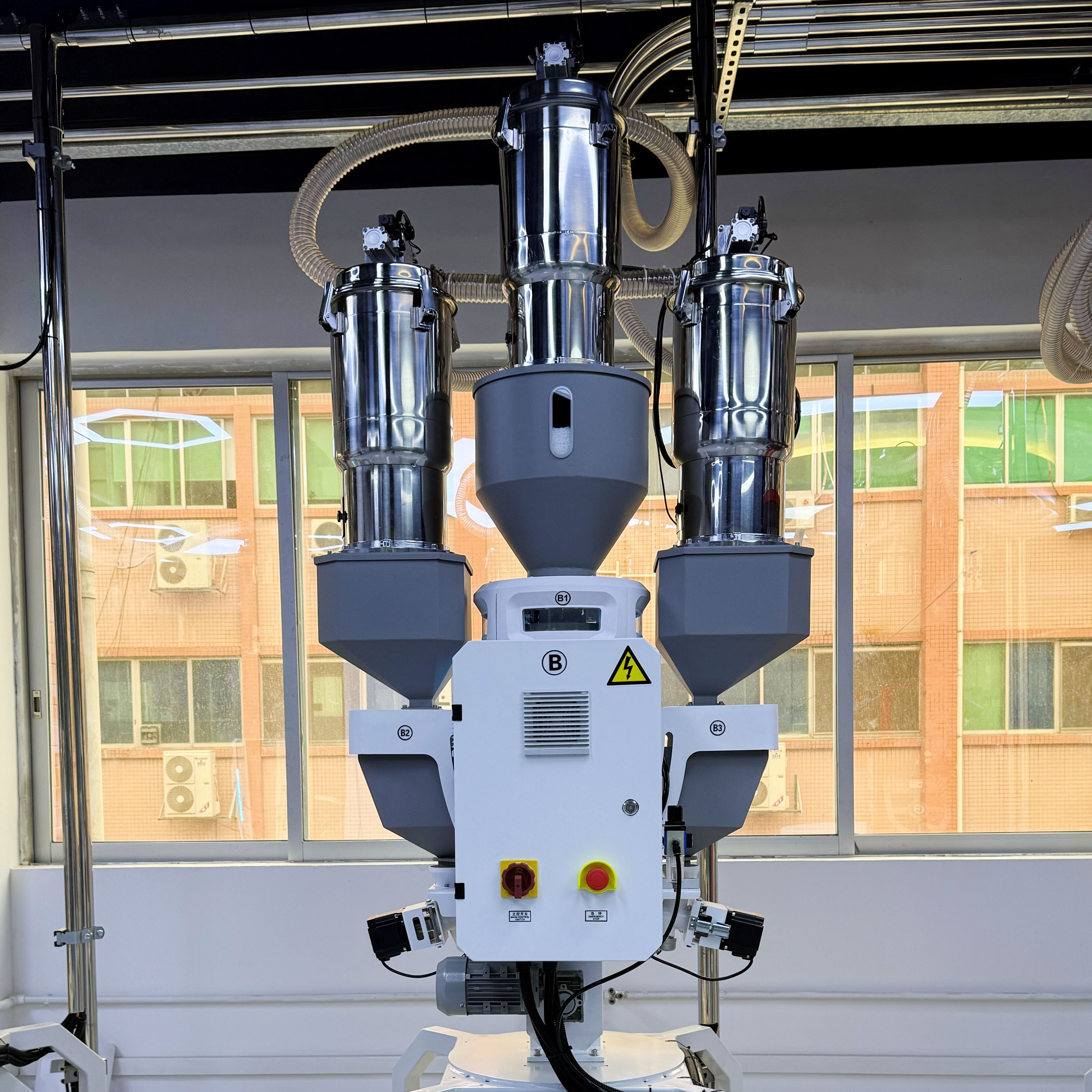

Multi-component Loss-in-Weight Feeder is used in 2/3 components with loss in weight control technology, so the precision of raw material proportion is less than 0.1%. Make up for the inaccuracy of thickness/gramme due to the large density difference.

Loss-in-Weight Feeders modular design, cost-effective, compact structure, easy installation, cleaning, maintenance. Combined with the industrial 4.0 platform, greatly help the workshop to control materials, supervision of quality.

Key Features of Our Gravimetric Doser :

European technology, more stable,reliable, and efficient production;

The minimum ratio of measurement is0.1%, and the error is 0.1%;

All components adopt total weightlessness control, and the mixing uniformity is better;

Modular design, economical and efficient, convenient to replace and easy to clean;

Industry 40 platform, standard Ethernet communication interface, MODBUS-TCPcommunication is morereliable and stable;

Product parameters :

Product name	Gravimetric Doser
Model	N-DOSER-E-300, N-DOSER-E-500, Customizable
Output	300Kg/h, 500Kg/h
Weight	80KG
Ambient temperature	50℃
Max temperature of materials	70℃-110℃
Application industry	Blowing film industry, film industry

Application:

Loss-in-Weight Feeder for Blowing Film industry.
