Product details

Wiring Harness Braided Sleeve

Product Description

Our wiring harness braided sleeve is crafted from halogen - free and eco - friendly PET monofilaments through careful weaving. It boasts excellent flame - retardant, expandable, and heat - insulating properties, making it an ideal choice for wear - resistant protection across various industries.

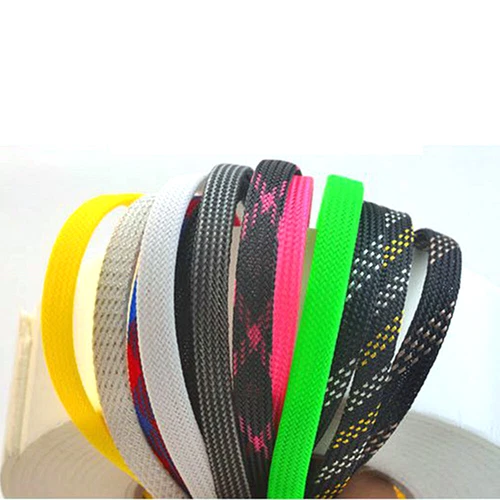

As shown in the image, our braided sleeving comes with a rich array of color options, including bright yellow, pure white, sleek black, vivid pink, and lively green. These vibrant colors not only meet different aesthetic preferences but also enable easy identification in complex wiring systems. Moreover, the unique braiding structure of this expandable braided sleeving allows its diameter to expand to 1.5 times the original size, which is perfect for wrapping wire harnesses and ensuring they can smoothly pass through large connectors.

Technical Parameters

Parameter Name	Parameter Value
Material	Polyester
Operating Temperature Range	-50℃-125℃
Melting Point	240 ± 10℃
Flame Retardant Grade	V2
Standard Color	Multicolored
Certification	Complies with UL, ROHS, REACH, and Halogen -Free Standards
Recommended Cutting Too	Hot Knife

Product Dimensions Diagram

Product Specifications

Product Application

Beyond its protective functions, our wiring harness braided sleeve can also play a role in enhancing trademarks and brand images. The distinctive colors and appearance of the braided cable sleeve can be customized to match brand characteristics, making products stand out more easily in the market. This not only helps in raising brand awareness but also provides visual identification for products with complex wiring systems.

Notes

The sleeving is expandable, so there is a relatively large tolerance in flat width.
Special packaging and colors can be customized according to customer requirements.
For detailed product parameters, please refer to the sample approval sheet.
