Product details

PET braided cable sleeve 1.5 inch

Product Description

Crafted from eco - friendly, halogen - free PET monofilaments, this 1.5 - inch PET braided cable sleeve is a high - performance expandable solution. It boasts excellent flame retardancy, flexibility, and heat insulation — key properties that deliver abrasion - resistant protection for industrial wiring, ensuring cables remain intact in harsh operating conditions. Its unique braided structure allows expansion up to 1.5 times its original diameter, making it ideal for wrapping harnesses and guiding them smoothly through large connectors.

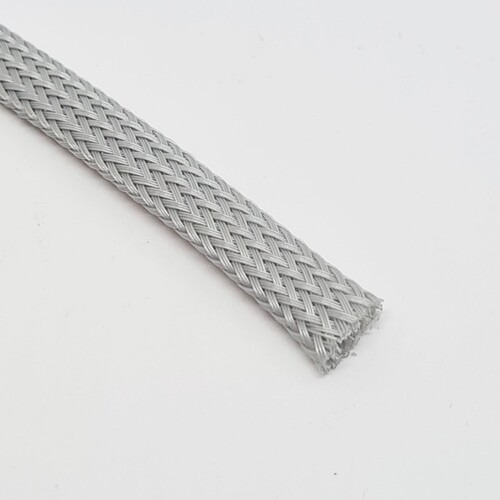

Free from harmful substances found in traditional materials, it balances durability with environmental safety. As shown in the picture, this 1.5 - inch PET braided sleeve (silver - gray) features a neatly woven structure, robust construction, and smooth surface — fully demonstrating halogen - free, expandable protection capabilities and effectively addressing industrial cable management needs.

Technical Specifications

ltem	Details
Material	Polyester (PET)
Working Temperature	-50℃-125℃
Melting Point	240±10℃
Flame Retardant Grade	V2
Color	Gray
Certification	Complies with UL, ROHS, REACH, and halogen-free certification
Cutting Tool	Hot knife

Product dimensions diagram:

Product Specifications:

Product Application

Thanks to its expandability, flame retardancy, and wear-resistant protective performance, the 1.5-inch PET braided cable sleeve can be widely applied in various scenarios, including computer power cord assembly, automotive wiring harness routing, industrial rubber hose protection, and professional wire processing. It effectively shields wires and cables from damage caused by abrasion, impact, and environmental factors, while also enhancing the visual neatness of wiring in end products.

Its braided structure features expandable properties, enabling flexible adaptation to different wire diameters. Thus, it is particularly suitable for application scenarios that require both reliable protection and dimensional adaptability. Beyond industrial and electronic fields, this sleeve is also highly practical in daily life and serves as an ideal choice for protecting faucet hoses: through its own expandability, it can adapt to the expansion and contraction needs of water pipes during use, preventing scratches, wear, or cracks on the pipes caused by frequent bending. Meanwhile, it can isolate dust, water stains, and temperature changes, extend the service life of water pipes, and help maintain the cleanliness and orderliness of kitchen and bathroom areas.

Notes

This sleeving has excellent stretchability. Due to its braided structure, a relatively large flat width tolerance is normal and does not affect protective performance.
Customization is available for special packaging, colors and other requirements per customers’ needs.
Detailed product parameters are subject to the sample approval sheet.
